Kenwood eXcelon KDC-X789 - Wiring Connections Guide; Speaker and Input;Output Wiring

English
|
55

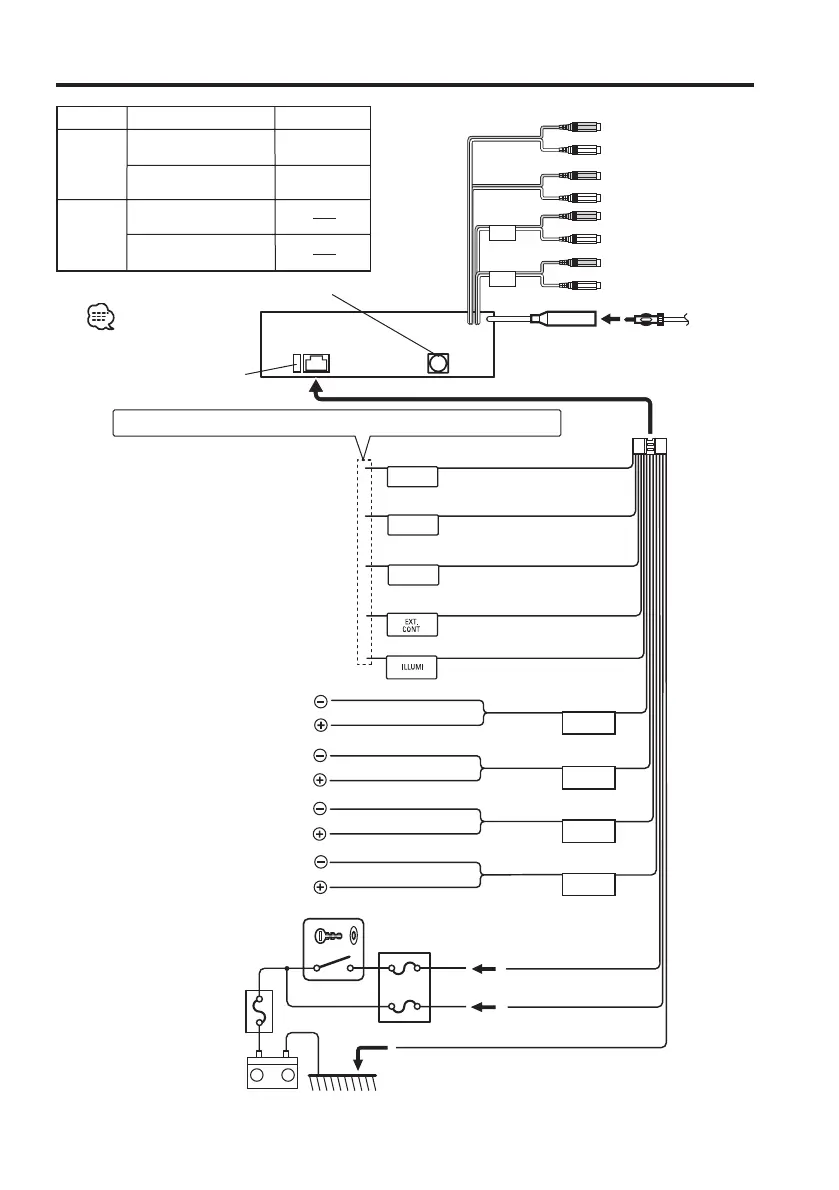

Connecting Wires to Terminals
ANT.
CONT
MUTE
P.CONT
FRONT • L
FRONT • R
REAR • L
REAR • R
–
+
FRONT
AUX IN
FM/AM antenna input
To KENWOOD disc changer/
External optional accessory
Wiring harness
(Accessory1)
Ignition wire (Red)
Battery wire (Yellow)
Ground wire (Black) · (To car chassis)
Ignition key
switch
Car fuse box
(Main fuse)
ACC
Car fuse box
Battery
If no connections are made, do not let the wire come out from the tab.
Power control wire (Blue/White)
Motor antenna control wire
(Blue)
Dimmer control wire (Orange
/ White)
When using the optional power amplifier, connect
to its power control terminal.
To car light control switch
Depending on what antenna you are using, connect
either to the control terminal of the motor antenna,
or to the power terminal for the booster amplifier of
the film-type antenna.
AUX left input (White)
AUX right input (Red)
External amplifier control wire
(Pink / Black) (KDC-X889/X789 only)
To "EXT.AMP.CONT." terminal of the amplifier having
the external amp control function.
To front left
speaker
To front right
speaker
To rear right
speaker
To rear left
speaker
Green/Black
Purple/Black
Gray
Green
Purple
White/Black
Gray/Black
White
TEL mute wire (Brown)
Connect to the terminal that is grounded when
either the telephone rings or during conversation.
To connect these leads,
refer to the relevant
instruction manuals.
Front right output (Red)
Front left output (White)
Fuse (10A)
A
B
A
B
Subwoofer right output
(Red)
KDC-X979/
X789/MP828/
MP7028
Rear right output
(Red)
Rear right output (Red)/
Subwoofer right output (Red)
Rear left output (White)/
Subwoofer left output (White)
KDC-MP728/
MP628
Subwoofer left output
(White)
Rear left output
(White)
