56
|
English

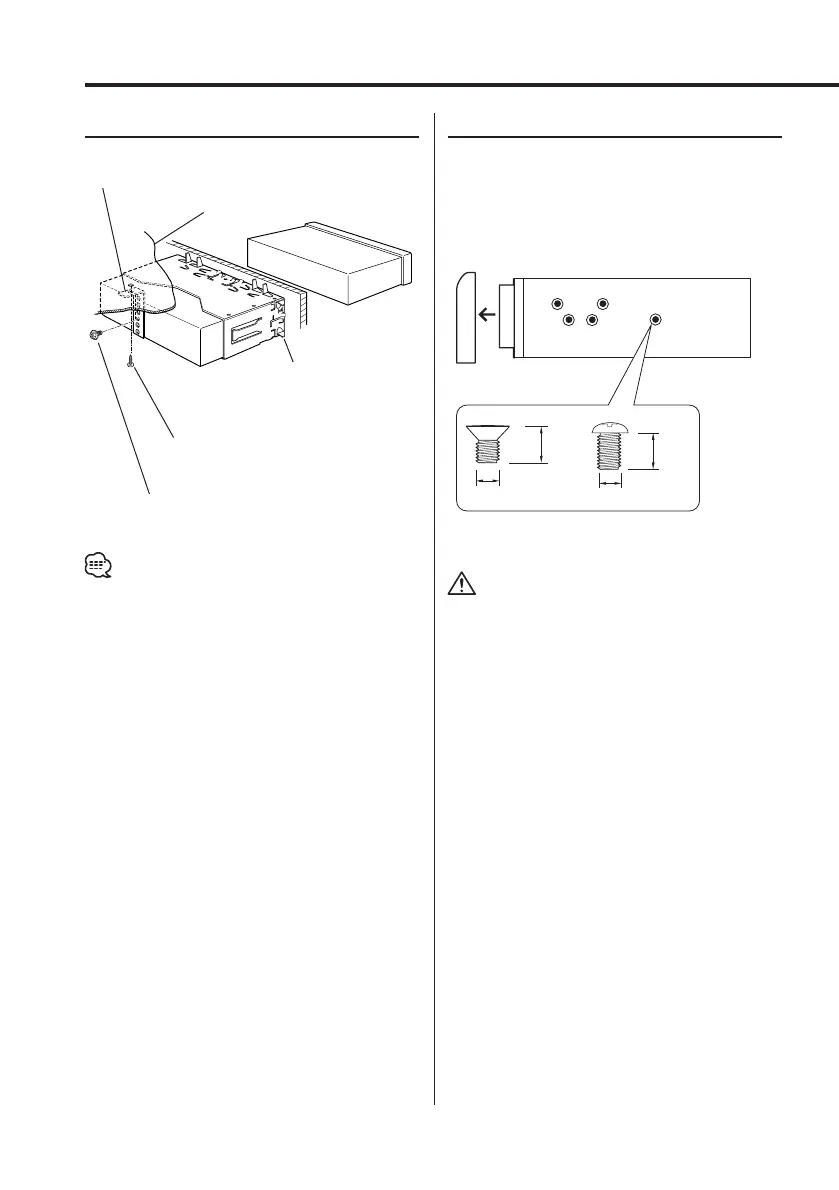

Installation
• Make sure that the unit is installed securely in place. If
the unit is unstable, it may malfunction (for example, the
sound may skip).
non-Japanese cars Japanese cars
1
Refer to the section <Removing the hard rubber
frame> (page 58) and then remove the hard
rubber frame.
2 Align the holes in the unit (two locations on each
side) with the vehicle mounting bracket and
secure the unit with the accessory screws.
• During installation, do not use any screws except for
those provided. The use of different screws might result
in damage to the main unit.
• Damage may occur if a screwdriver or similar tool is used
with excessive force during the installations.
Firewall or metal support
Screw (M4X8)
(commercially available)
Self-tapping screw
(commercially available)
Metal mounting strap
(commercially available)
Bend the tabs of the
mounting sleeve with a
screwdriver or similar utensil
and attach it in place.
8 mm
MAX.
M5mm
M5mm
8 mm
MAX.
T
N
T
N
T/N
T: Toyota cars
N: Nissan cars
Accessory3...for Nissan car
Accessory4 ...for Toyota car
3
4
B64-2962-00Kr4English.Indd56B64-2962-00Kr4English.Indd56 04.11.1111:30:56AM04.11.1111:30:56AM
To Next Page
