58
|
English

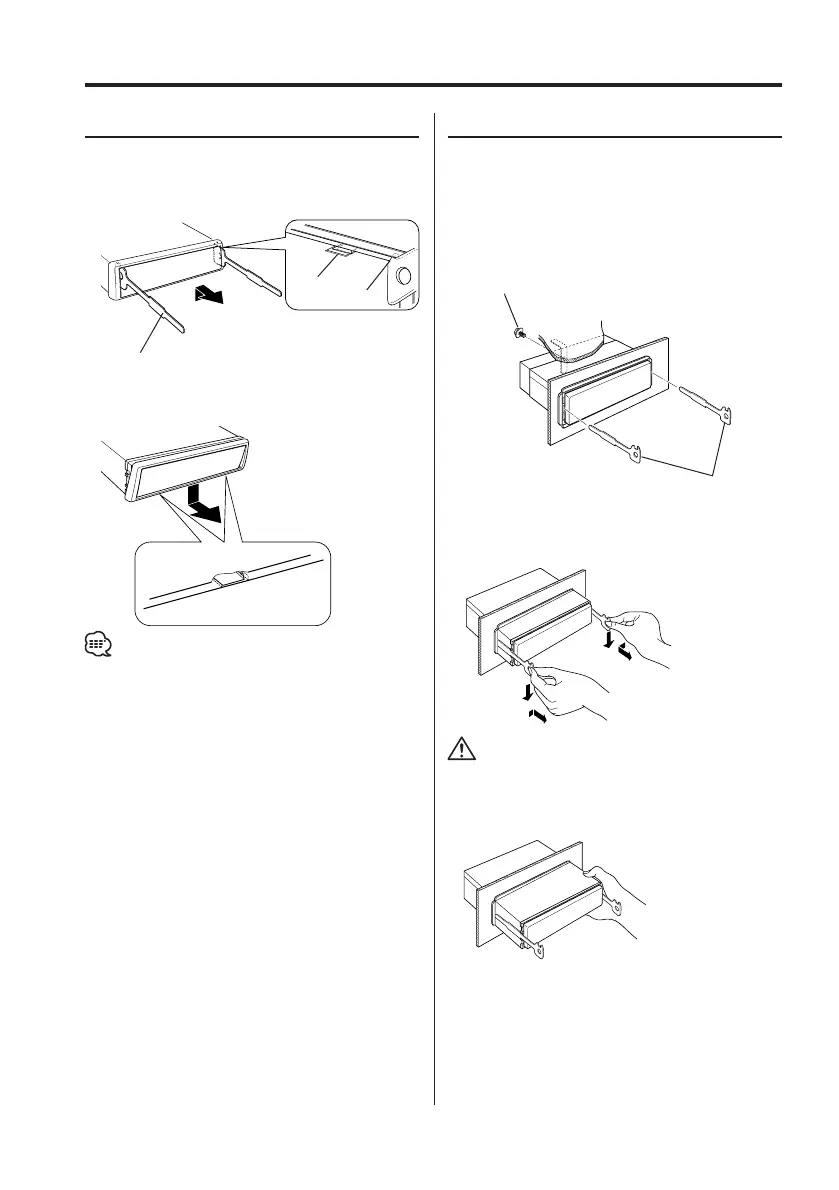

Removing the Unit
Removing the hard rubber frame
1
Engage the catch pins on the removal tool and
remove the two locks on the upper level.
Upper the frame and pull it forward as shown in
the figure.
2 When the upper level is removed, remove the
lower two locations.
• The frame can be removed from the bottom side in the
same manner.
Removing the Unit
1
Refer to the section <Removing the hard rubber
frame> (page 58) and then remove the hard
rubber frame.
2 Remove the screw (M4 × 8) on the back panel.
3 Insert the two removal tools deeply into the slots
on each side, as shown.
4 Lower the removal tool toward the bottom, and
pull out the unit halfway while pressing towards
the inside.
• Be careful to avoid injury from the catch pins on the
removal tool.
5 Pull the unit all the way out with your hands,
being careful not to drop it.
Catch
Lock
Accessory2
Removal tool
Accessory2
Removal tool
Screw (M4X8)
(commercially available)
B64-2962-00Kr4English.Indd58B64-2962-00Kr4English.Indd58 04.11.1111:30:57AM04.11.1111:30:57AM
