KERN DBS 60-3 User Manual

64 DBS-BA-e-1311
11 Print, store and call-up measurement results
The data exchange between moisture analyser and printer occurs via the RS 232C
interface.
In addition to the measurement result, for the finished drying process all drying
parameters are automatically stored with the printout (100 positions). The memory
location designation is automatically allocated with a consecutive number (XX00 –
XX99) as well as a selectable designation “XX” (see chap. 10.1).
+ Call up and print out measuring results, see chap. 11.4
+ Delete memory, see Chapter 11.6

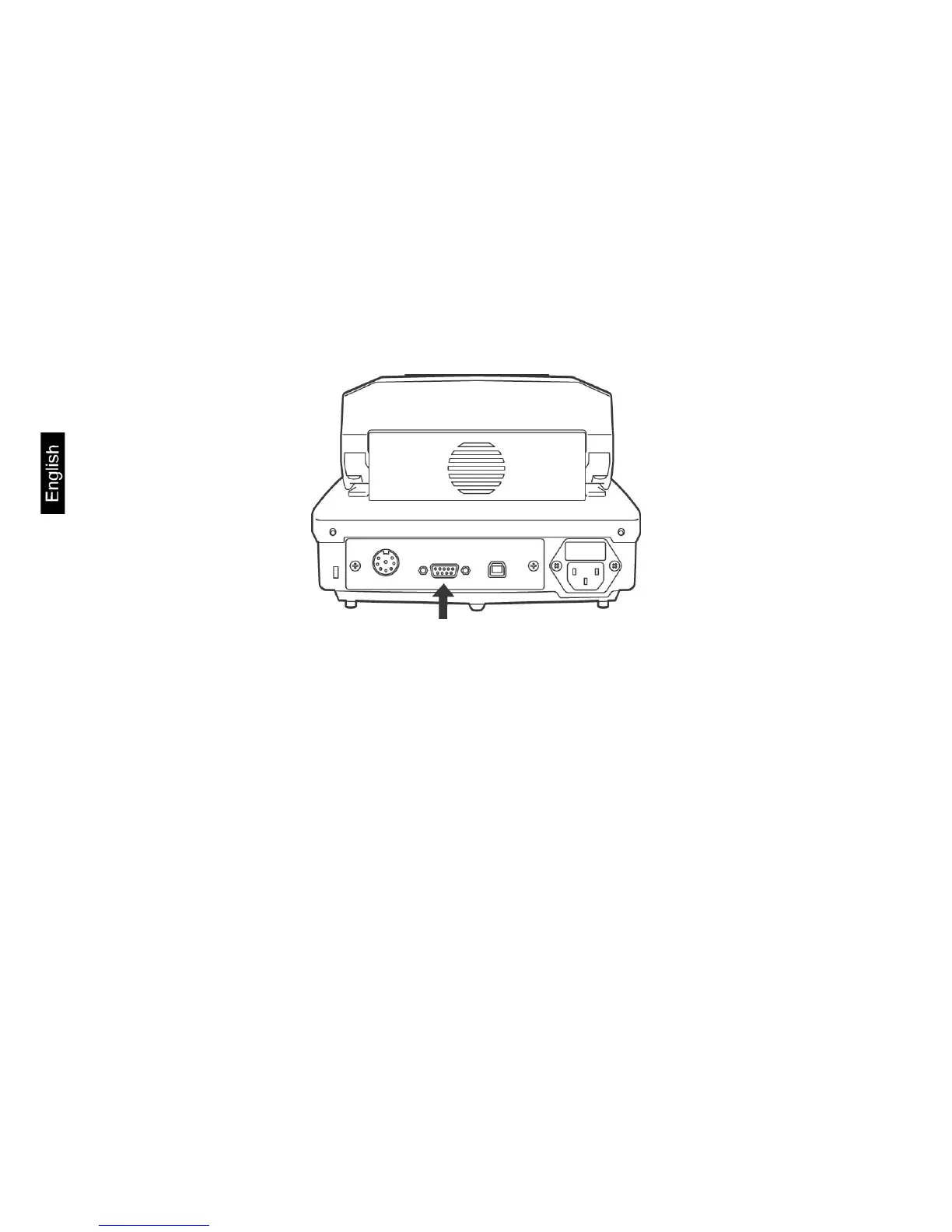

RS232
The following conditions must be met to provide successful communication between
the moisture analyser and the printer.
• Disconnect moisture analyser from the power supply and connect to the printer
interface with a suitable cable. Faultless operation requires an adequate KERN
interface cable.
• Communication parameters (baud rate, bits and parity) for moisture analyser
and printer must concur, see chap. 11.2.
