Keysight Technologies 11713D - Figure 1-2 11713 D Rear Panel Features

1Introduction
20 Keysight 11713D/E Operating and Service Manual
This section briefly describes the function of the rear panel connectors of 11713D.

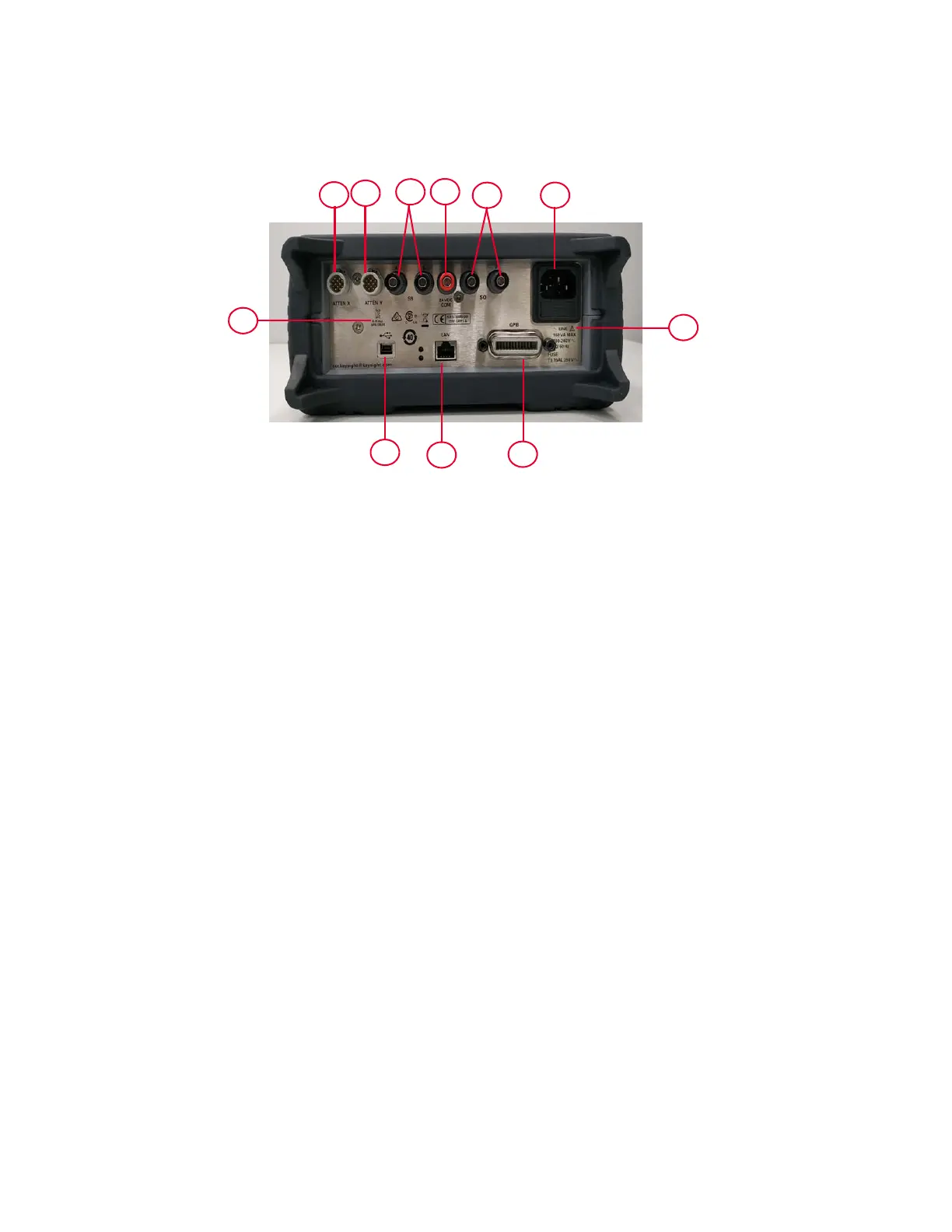

Figure 1-2 11713D rear panel features
1ATTEN X: Viking connector for connection to attenuator or switch(es).
2ATTEN Y: Viking connector for connection to attenuator or switch(es).
3S9 A/B: Banana jack connectors for connection to coaxial switch.
4 24 VDC COM: Banana jack connector to provide common +24 Vdc in driving the coaxial
switches connected to S9 and/or S0.
5S0 A/B: Banana jack connectors for connection to coaxial switch.
6Receptacle: Matches transformer primary to line voltage via power cable.
7Alert symbol: This symbol is used to point out a necessary reference for the user.
8GPIB connector: The interface connector from a source device to a listening device for the
remote mode of operation.
9 LAN connector: The interface connector for LAN cable (option LXI only).
10 USB connector: The interface connector for Type mini B 5-pin USB cable (option LXI only).
11 Instrument markings
2
4
7
8
9
10
5 6
1
3
11
