Installation 2
Keysight 11713D/E Operating and Service Manual 27
Preparing for Use
Bench operation
Pull the handle outwards, and adjust it into one of the two positions illustrated in Figure 2-1.
– (Top) Handle placed underneath the instrument to assure self- alignment of the instruments
when stacked.
– (Bottom) Handle tilted to raise the front of the instrument for easier viewing of the front panel.

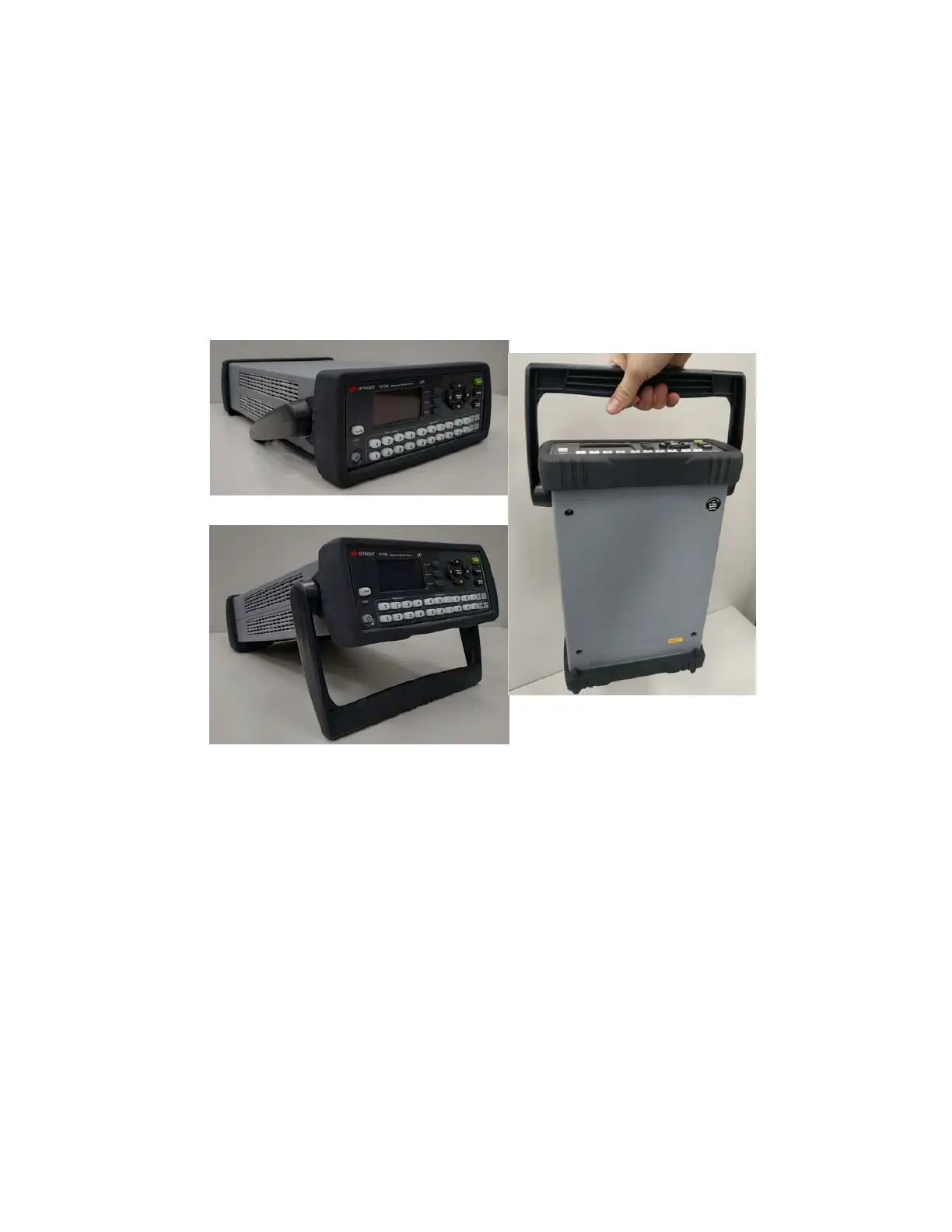

Figure 2-1 Handle positioning for bench operation
