Using the Battery Option C
Keysight 53150A/151A/152A Operating Guide 129
Installing Batteries
To install batteries in the Counter, use the following procedure:
1 If you have not previously removed the battery sled from the Counter and the
batteries from the sled, do so now (see “Removing the Batteries” on the
previous page).
2 Position the battery sled so that the back (taller) end is to your left as shown in
Figure C-3

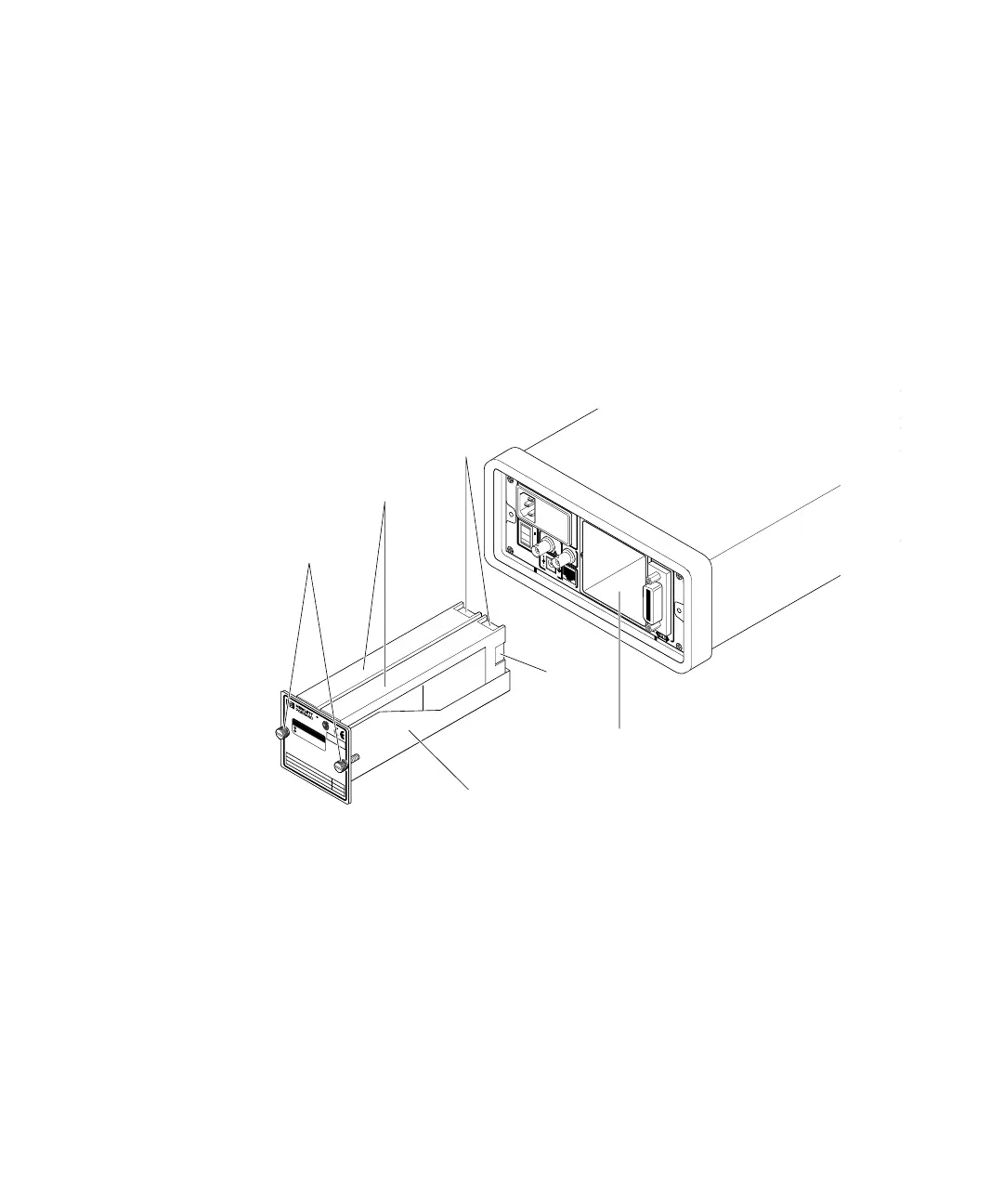

Figure C-3 Removing and Installing Batteries
1 Thumbscrews 4 Battery chamber
2 Batteries 5 Battery sled
3 Battery terminals
WARNING:
To avold electric shock,
do not remove covers.
No user-serviceable parts inside.
Refer all servicing to qualified personnel.
OPTIONS
001 Oven Time Base
002 Battery
This unit must be earth grounded.
Made in U.S.A.
with domestic and foreign content
LINE VOLTAGE:
FUSE:
FUSE:
90-260VAC 50/60 Hz
100-120VAC 0.5A, SB 250V
200-240V, 0.25A,SB 250V
11 TO 18 VDC
EXT DC
Reference 10 MHz
In
or
Out
Auxillary
RS-232
Main ~ Power
WARNING:
To avold electric shock,
do not remove covers.
No user-serviceable parts inside.
Refer all servicing to qualified personnel.
OPTIONS
001 Oven Time Base
002 Battery
This unit must be earth grounded.
Made in U.S.A.
with domestic and foreign content
AC POWER
100-300 VAC, 50/60/400 Hz 75 VA 1.0 A T
220-240 VAC, 50/60 Hz 75 VA 250 V
FUSE
1
2
3
4
5
3
ISM 1-A
