Using the Menu
The Keysight 53150A/151A/152A Counter’s Menu makes it easy to control
a number of the Counter’s features and functions. You use the Selection (arrow)
keys to navigate to the setting you want to change and then to actually make the
changes.
1 Press the Shift key and then the Menu (Reset/Local) key to display the Menu.
When you press the Shift key, the Shift annunciator (near the bottom-right
corner of the display) activates. When you press the Menu (Reset/Local) key,
the Shift annunciator goes off, and the first menu item is displayed.

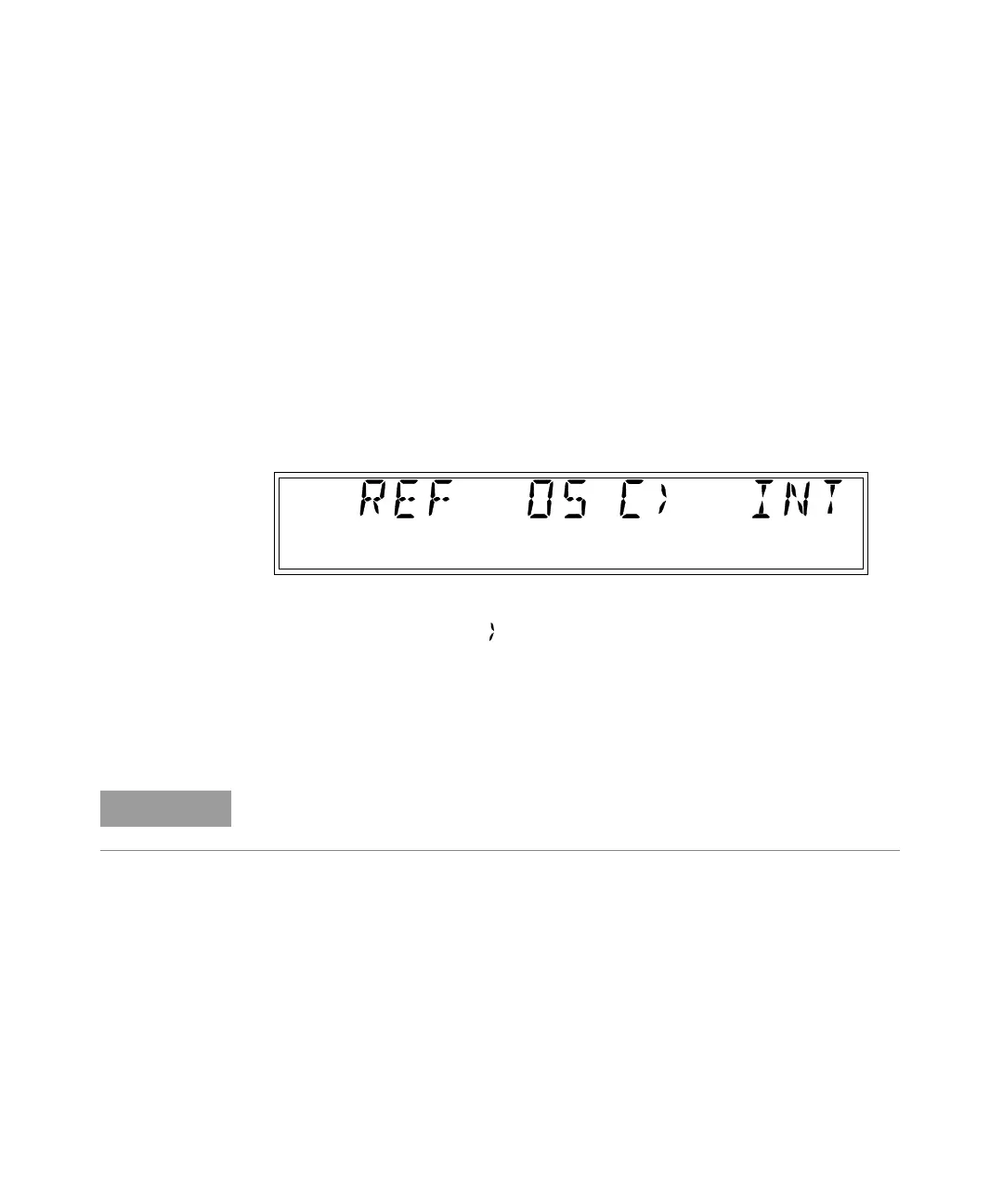

If you have not previously invoked the Menu since you last turned the Counter
on, the first menu item is REF OSC, the Reference Oscillator.
2 Press the right-arrow key to change the setting for the Reference Oscillator.
The flashing annunciator ( ) in the display reverses direction to indicate that
you can now change the setting by pressing either the up-arrow key or the
down-arrow key. In the case of the Reference Oscillator function, which has
only two possible settings (INTernal and EXTernal), pressing either the up-
arrow or the down-arrow has the same effect (it toggles the setting from INT to
EXT or from EXT to INT).
NOTE
The Counter will not switch to EXTernal unless a suitable reference signal is
available at the External Reference connector.
