1 Getting Started
28 Keysight 53150A/151A/152A Operating Guide

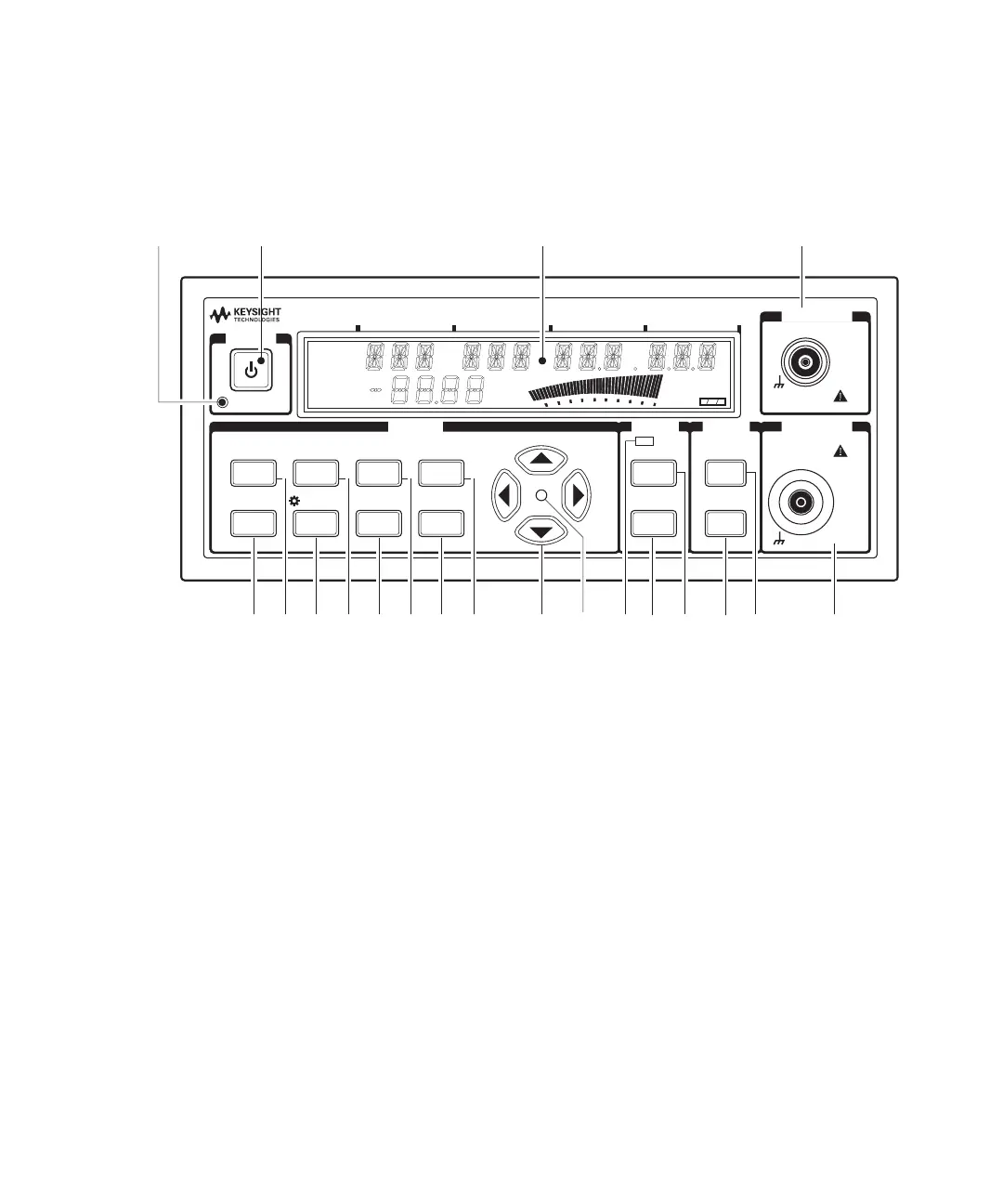

The Front Panel at a Glance
CHANNEL 1
CHANNEL 2POWER
FREQ
POWER
Standby
GHz MHz
kHz Hz
Gate
Rel Freq Rel Pwr
dBm/ W
Channel 2
50 MHz to 20 GHz
DAMAGE
+27 dBm
50 Ω
1M Ω
DAMAGE
+30 dBm
10 Hz to 125 MHz
20 GHz Counter
MODIFY
Reset/
Local
GPIB
Pwr
Offset
Freq
Offset
Menu
On/Off
Enter
Resol
+/-
Avg
Clear
Rate
Shift
Chan
Select
Offset
On/Off
Offset
On/Off
Display
Power
53150A
Ch 12
Rel Freq
Offset
Avg On
Rel Pwr
Offset
dB
dBm
Watts
mW
uW
%
Ext Rel
Error
Shift
Hold
Rate Rmt SRQ
5678912 1013 11141516171819
1342
20
1 Standby indicator
2 Power/Standby switch
3 LCD display
4 Channel 1 input connector
5 Channel 2 input connector
6 Display Power / dBm/W key (Channel 2)
7 Offset On/Off / Relative Power key
(Channel 2)
8 Channel Selection key
9 Offset On/Off / Relative Frequency key
10 Gate indicator
11 Selection keys active indicator
12 Selection (arrow) keys
13 Resolution / GPIB key
14 Enter key
15 Average / Power Offset key
16 Sign (+/–) key
17 Rate / Frequency Offset key
18 Clear / Backlight On/Off key
19 Reset/Local / Menu key
20 Shift key
