1 Getting Started
34 Keysight 53150A/151A/152A Operating Guide
The Rear Panel at a Glance
11 TO 18 VDC
EXT DC
Reference 10 MHz
In
or
Out
Auxillary
RS-232
Main ~ Power
1
10 9 7
2 43 6
5
8
WARNING:
To avold electric shock,
do not remove covers.
No user-serviceable parts inside.
Refer all servicing to qualified personnel.
OPTIONS
001 Oven Time Base
002 Battery
This unit must be earth grounded.
Made in U.S.A.
with domestic and foreign content
ISM 1-A
100 – 130 VAC, 50/60/400 Hz 75 VA
220 – 240 VAC, 50/60 Hz 75 VA 250 V
FUSE
1.0 A T
AC POWER

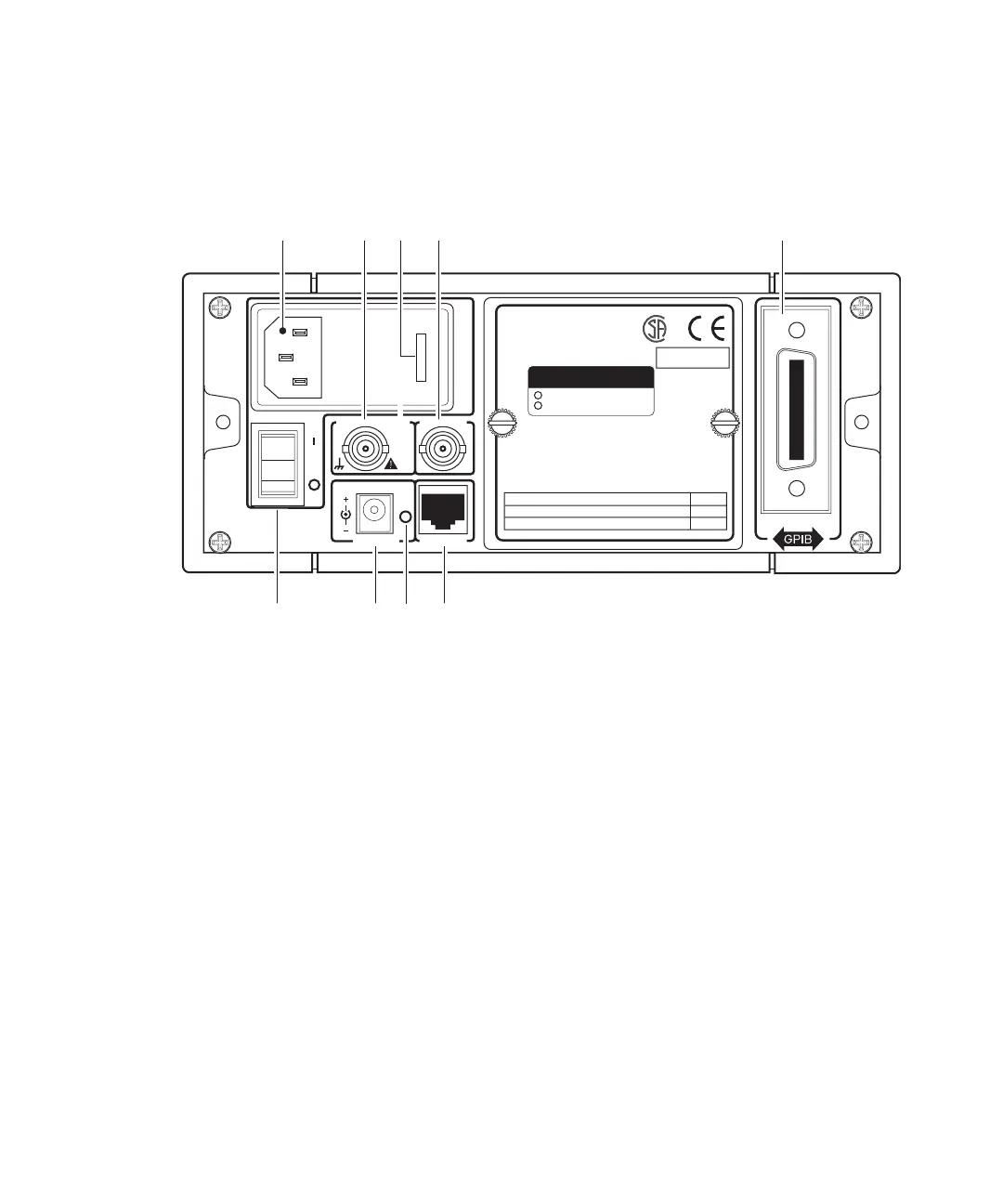

1 AC Input/Power module (Senses
incoming voltage and adjusts
automatically)
2 External Reference connector (BNC)
1, 2, 5, or 10 MHz Input
10 MHz Output
3 Fuse Holder (behind door)
4 Auxiliary connector (reserved)
[a]
5 Battery compartment (optional) or cover
plate
6 GPIB (IEEE-488.1) Interface connector
7 RS-232 Interface connector (RJ12)
8 Main AC Power On indicator
9 EXT DC power-input connector
(functional only when Battery option is
installed)
10 Main ~ Power switch
[a] The Auxiliary connector is not installed on standard production units.
To Next Page
