Operating Your Frequency Counter 2
Keysight 53150A/151A/152A Operating Guide 77
Resolution Setting Example
For the following example, use the 10 MHz output from the reference timebase as
the input to Channel 1.
1 Press the Resol key to enter the resolution-setting mode.
The current resolution setting is displayed (the current value and the indicator
between the arrow keys are flashing to indicate that you can use the up- and
down-arrow keys to change the setting).

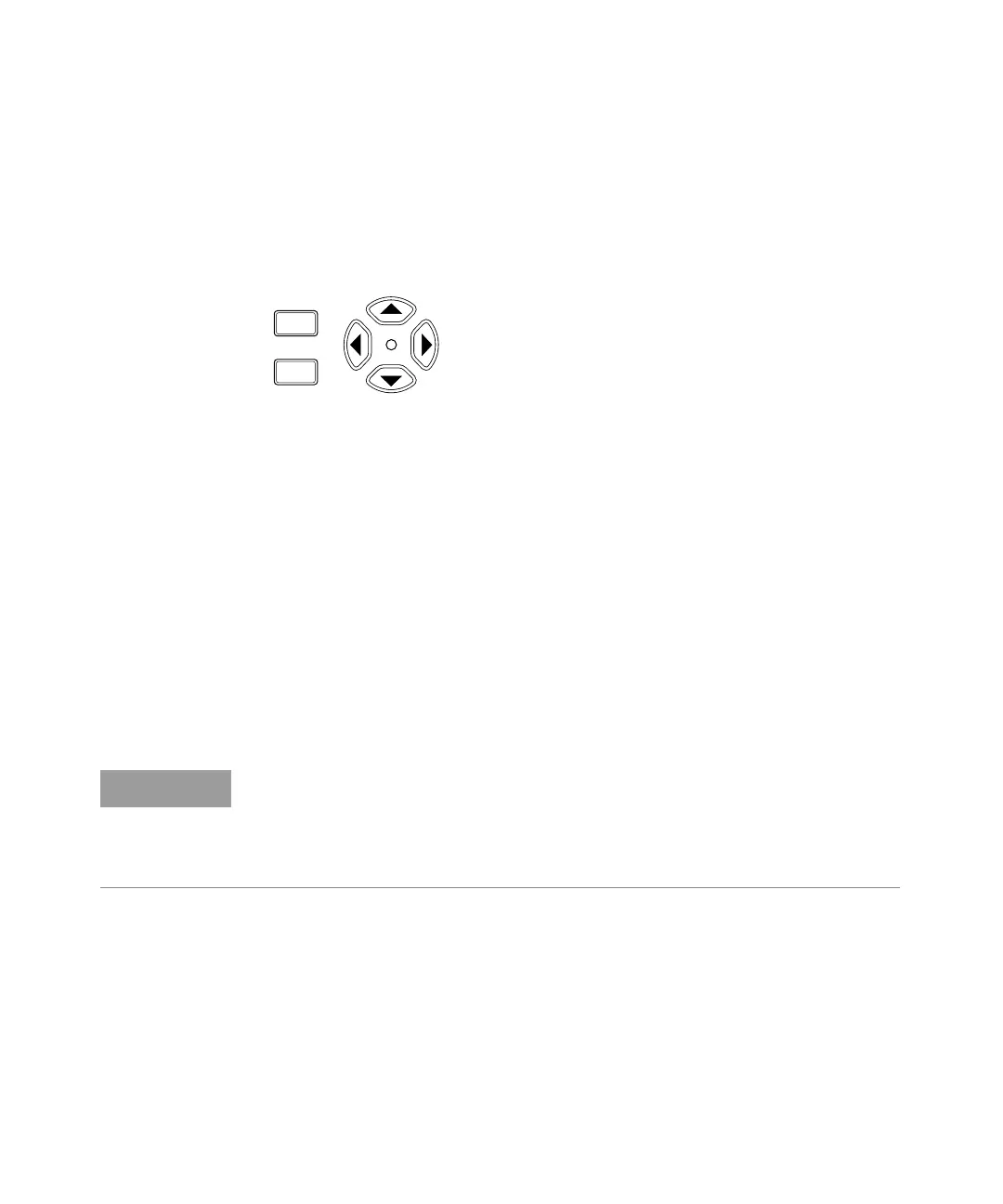

2 Press the up-arrow or down-arrow key to decrease or increase
the resolution.
You can press these keys as many times as necessary to locate the setting you
want to use. The available resolution settings are 1 Hz (the default setting), 10
Hz, 100 Hz, 1 KHz, 10 KHz, 100 KHz, and 1 MHz.
3 Press the Enter key to activate your setting and exit the resolution-setting
mode.
The setting you chose is now in effect. The number of digits displayed for the
measurement is adjusted accordingly; you can observe the affect on
measurement speed by monitoring the flash rate of the Gate indicator.
Enter
GPIB
Resol
NOTE
The measurement resolution has a direct effect on the amount of time the
Counter requires to complete a measurement. Measurements made at the
Counter’s maximum resolution setting (1 Hz) are noticeably slower than at lower
resolutions. This is especially noticeable when the Counter is set to average a
number of measurements.
