Keysight 86120D and 86122C Multi-Wavelength Meters User’s Guide 41
Getting Started 1

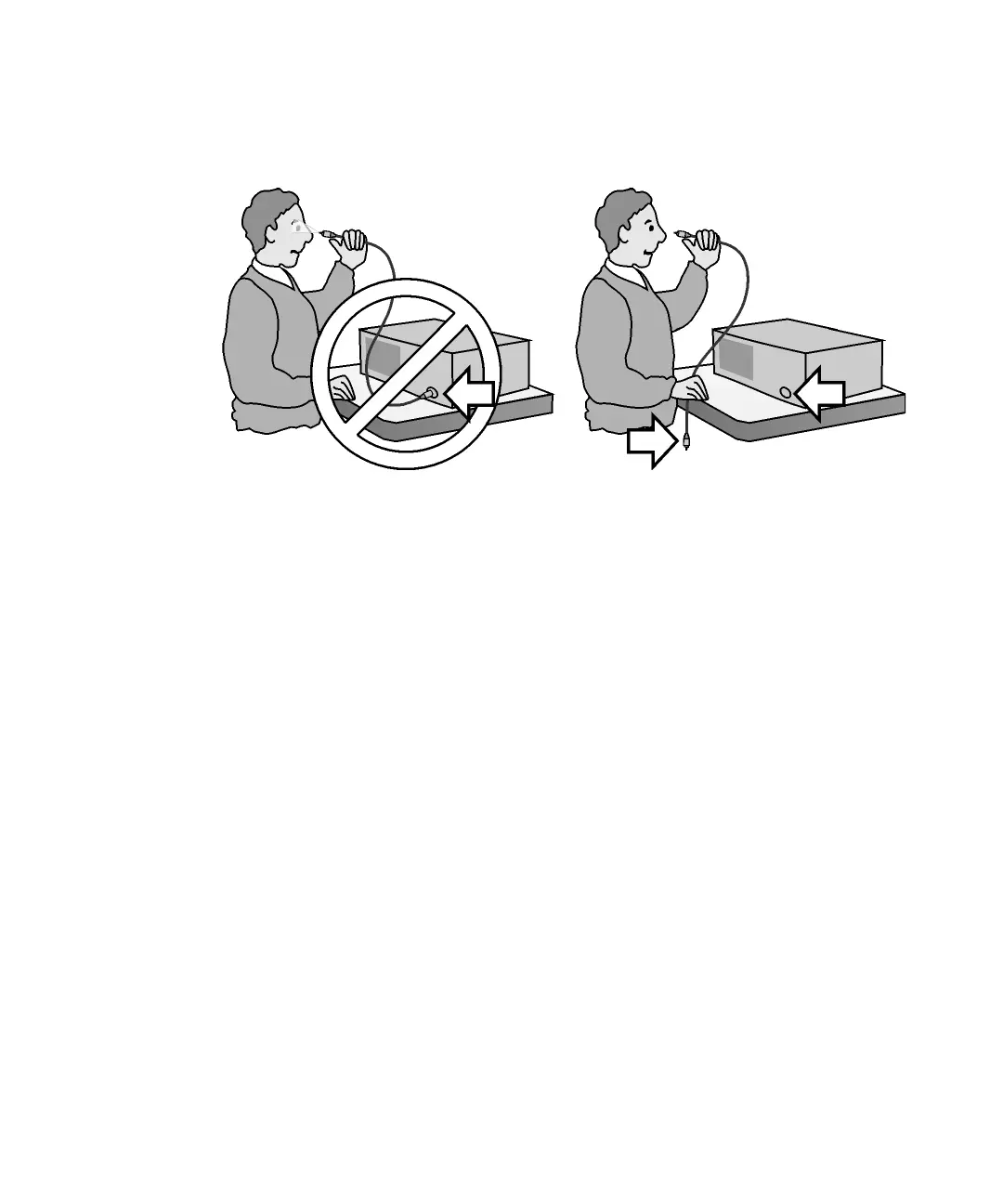

Figure 21
• If the measured amplitudes are low, clean the front-panel OPTICAL
INPUT connector.
• The maximum input range for 86120D is 700-1700 nm and the
maximum input range for is 700 - 1650 nm.
• Laser line widths are assumed to be less than 10 GHz for 86120D, and
less than 2.5 GHz for 86122C.
