10
Note:
We are not using Option 300 Module Selector which
is convenient for automatically switching the meas-
urement resources between the HVSMU, HCSMU and
HPSMU without manually re-connecting the cables
between the power BJT and each SMU. Figure 1-5
shows a simplified image of Module Selector con-
nected to the collector of the power BJT.
We can simplify the test setup in the example by not
using Option 300 and it becomes more versatile for
many users. If you have option 300 installed in the
N1259A, then you can simply use this option by prop-
erly interpreting the step by step instruction for the
collector connection.
However the instructions for using the module selec-
tor are covered in the appendix section.

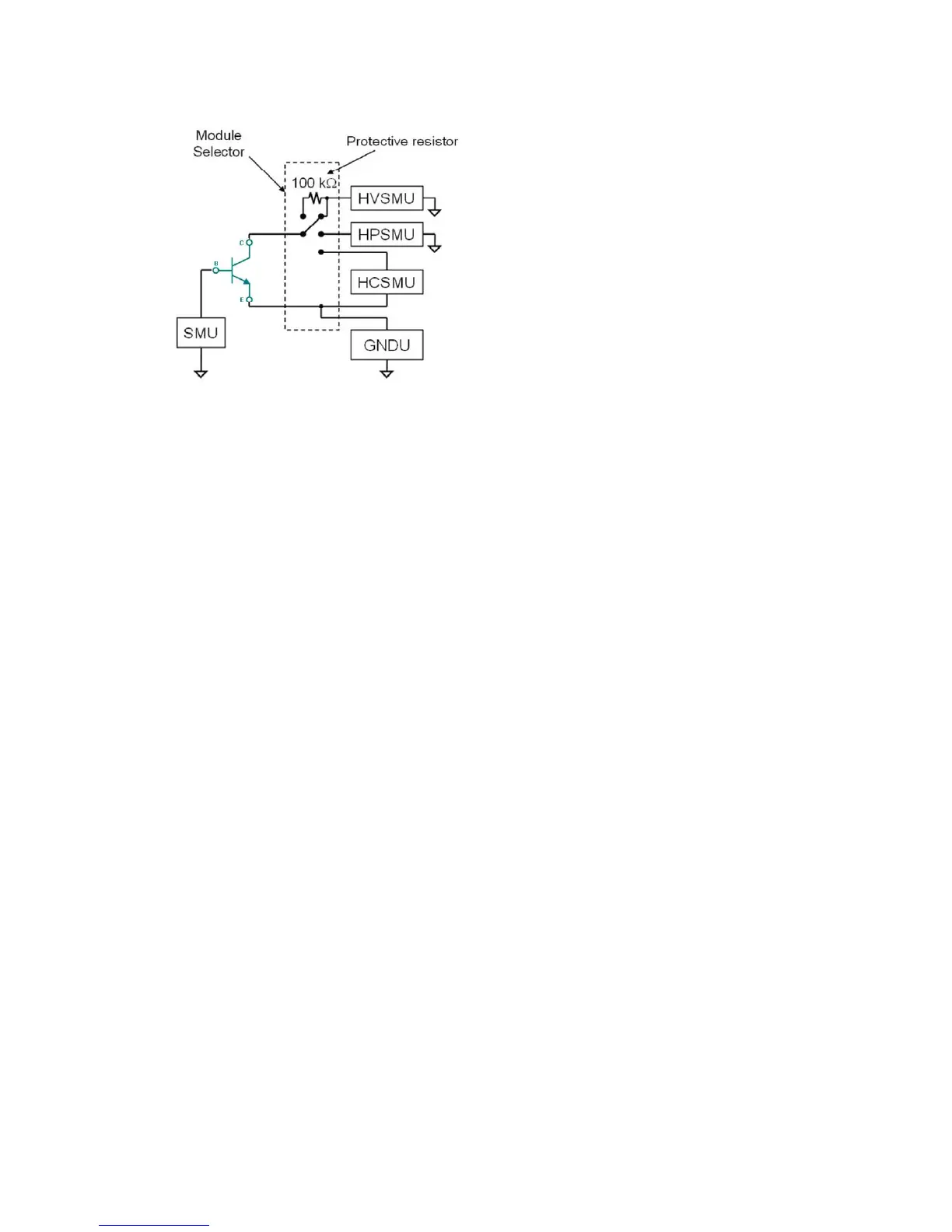

Figure 1-5. Simplified connection diagram using
N1259A Option 300 Module Selector
