Classic Test mode
Classic Test is used inside of the Application Test definition as a main measurement
engine for defining and executing a test. Classic Test can be used itself as a stand-
alone test engine and it can define a unique test. The user interface of the Classic
Test mode adopts the same concept of the Agilent Semiconductor Parameter Ana-
lyzers and anyone can get used to handle this interface easily. Any application that
is not covered in the Application Test library can be covered by using the Classic
Test mode.

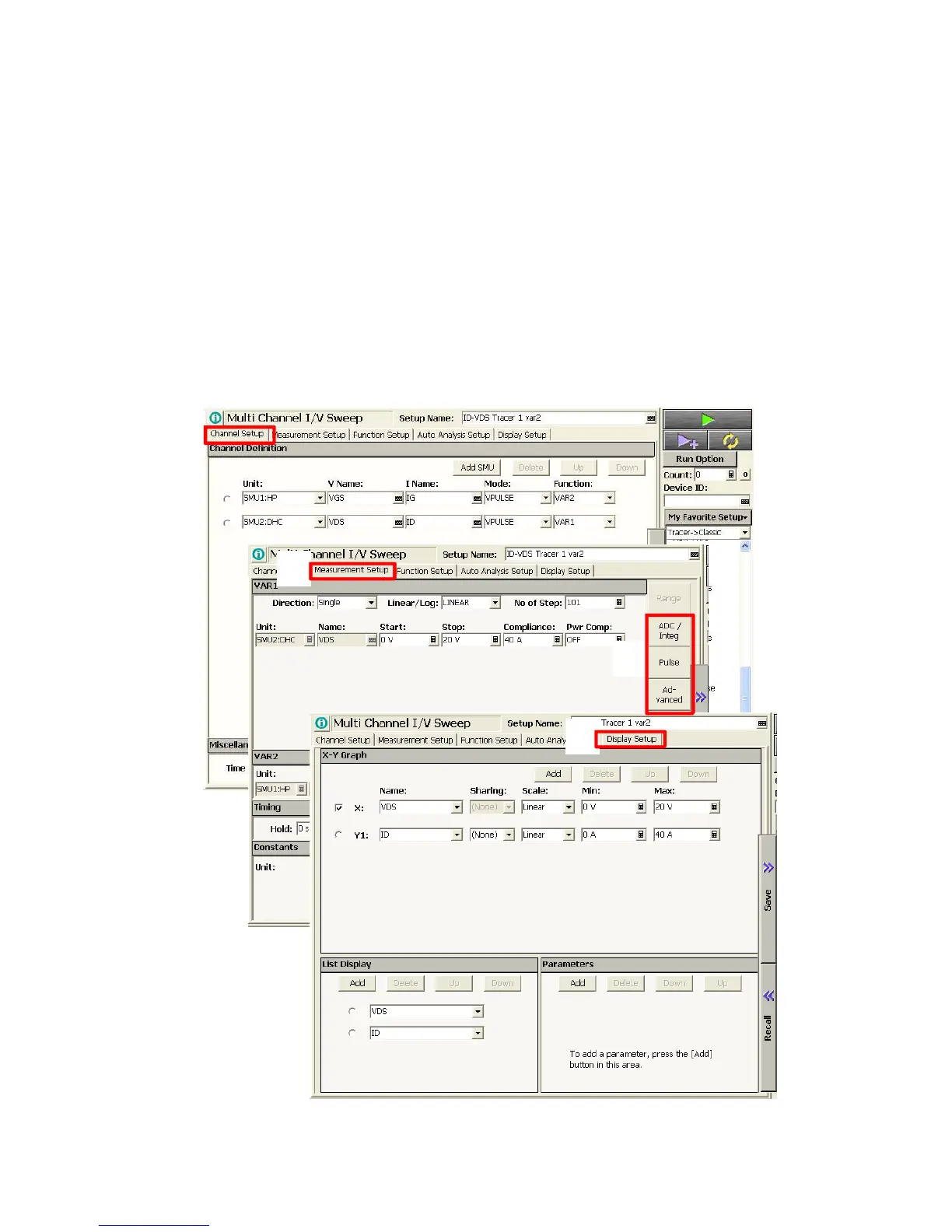

Figure 1-7 shows an example Classic test setup window where 1. Channel Setup
page, 2. Measurement Setup page and 3. optional SMU parameter setup sub-panels
and 4. Display setup page that is minimum pages you have to fill in before starting
measurements.
1.
2.
3.
4.
Figure 1-7. Example Classic Test measurement parameter setup panels.
