Keysight Technologies B1505A Handbook

27
Before starting a measurement, check the configuration for HCSMU and the module
selector. You can view and change the configuration as follows.
1. Click the configuration button on the right side of the screen.
2. Select the “Dual HCSMU Combination” tab.
Make sure the checkbox is unchecked as shown in figure 2-15(A).
3. Select the “SMU Output Limit Setting” tab.
Make sure the Current Setting Limit is 20 A as shown in figure 2-15(B).
4. Select the “Module selector” tab.
Make sure that Module selector is disabled as shown in figure 2-16.
2-5-1-2 EasyEXPERT configuration before starting a measurement
IMPORTANT

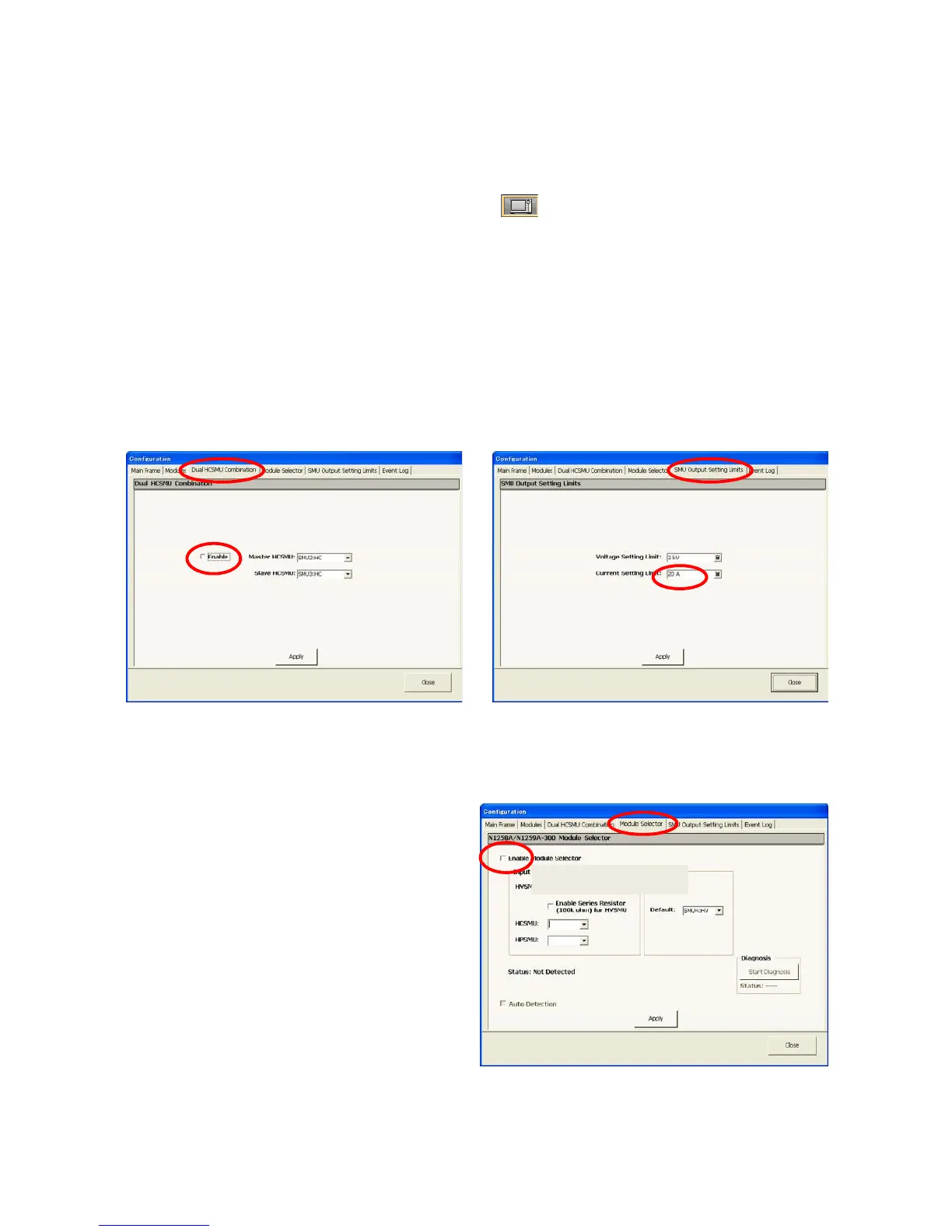

(A) “Dual HCSMU Combination” tab (B) “SMU Output Limit Setting” tab
1. Uncheck “Enable”
2. Set to 20 A
Figure 2-15. 20 A Configuration setting
1. Uncheck “Enable”
Figure 2-16. Module Selector setting.
