7
This chapter provides basic B1505A related informa-
tion that is better to know before you proceed this
material.
Agilent B1505A Power Device Analyzer / Curve
Tracer is designed for measuring present power de-
vices. B1505A uses the EasyEXPERT software, a
specially-designed Microsoft Windows® application
program.
The B1505A can measure wide range of power de-
vices from 10 fA to 40 A and 2 µV to 3,000 V with
3,000 V CV measurement features.
The EasyEXPERT software, which is resident on the
B1505A, provides an intuitive and flexible data man-
agement and analysis environment.
Chapter 1. Basic Knowledge of the B1505A
B1505A has 10 module slots, which support the following modules
B1510A High Power SMU (HPSMU) 10 fA~1 A/2 µV~200 V
B1512A High Current SMU (HCSMU) 10 pA~1 A/200 nV~40V (DC) or 10 pA~20
A/200 nV~20 V (Pulse)
B1513A High Voltage SMU (HVSMU) 10 fA~4 mA/200 µV~3000 V or 10 fA~8
mA/200 µV~1500 V
B1520A Multi Frequency CMU (MFCMU) 1 fF~10 nF @ 1 MHz for power BJT pa-
rameters with 0~3000 V DC bias by using High Voltage Bias-Tee adapter.
Output and measurement range of each module are visually shown in figure 1-1.

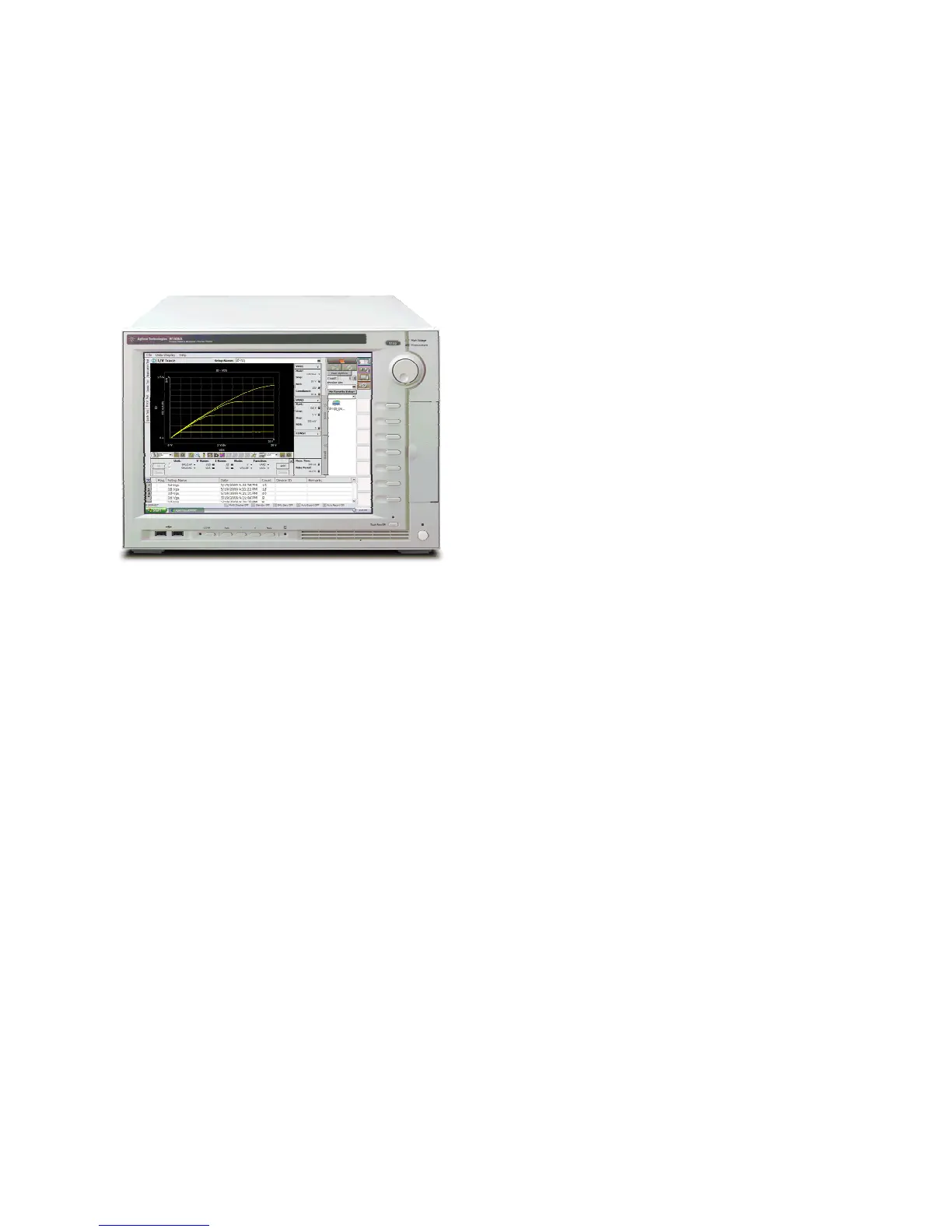

1-1. Agilent B1505A Power Device Analyzer/Curve Tracer
