24
Step number 1 to 5:
The step number from 1 to 5 is the same as the 2 x HPSMU and 1 x HCSMU con-
figuration, and follow the steps of figure 2-7.
Step number 6: (See figure 2-10)
Using a 16493S HCSMU Cable, connect the Force and Sense connectors on the
B1512A HCSMU to the respective connectors of HCSMU2 Input on the N1259A.
Note:
HCSMU cables are a pair of a coax cable and a triax cable. In case of HPSMU,
it uses a pair of two triax cables. It is a good practice for distinguishing these
two cables.
Step number 7:
Using a 16493T HV Triax Cable, connect the Force connector on the B1513A
HVSMU to the HVSMU1 input of the N1259A.
Tips:
Make sure to screw in the connector firmly by hand to the end point where
you feel some resistance.
Step 7
Step 6
Step 1 to 5: Same as the 2 x HPSMU and 1 x HCSMU configuration
CoaxTriax
Coax
Triax

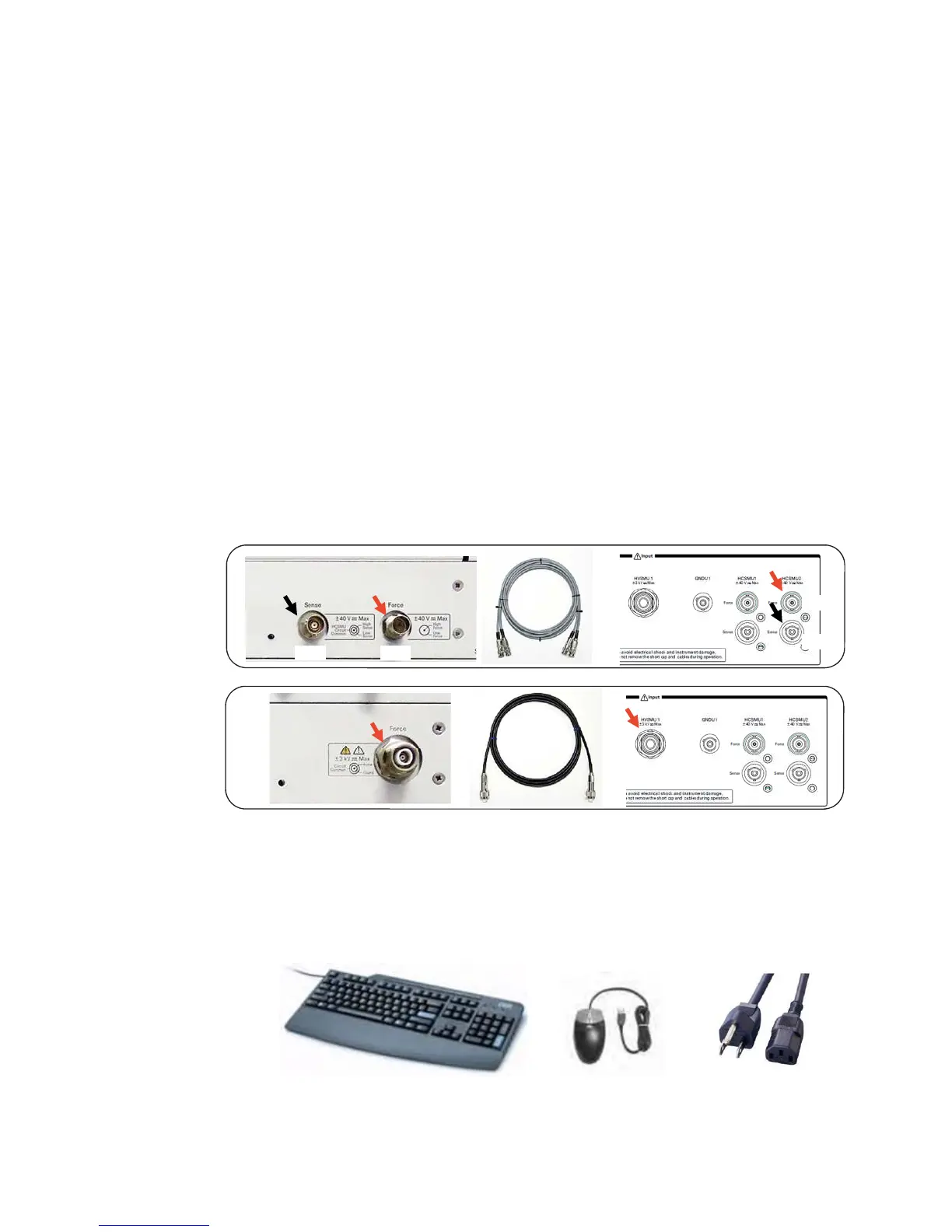

Figure 2-10. Breakdown of the cable connection for 1 x HPSMU and 2 x HCSMU 20 A configuration.
2-4-3. Power cable, Keyboard and mouse
Be sure connecting power cable, keyboard and a mouse before starting the B1505A.
Figure 2-11. Key Board, Mouse and Power Cable.
Power CableKey Board Mouse
