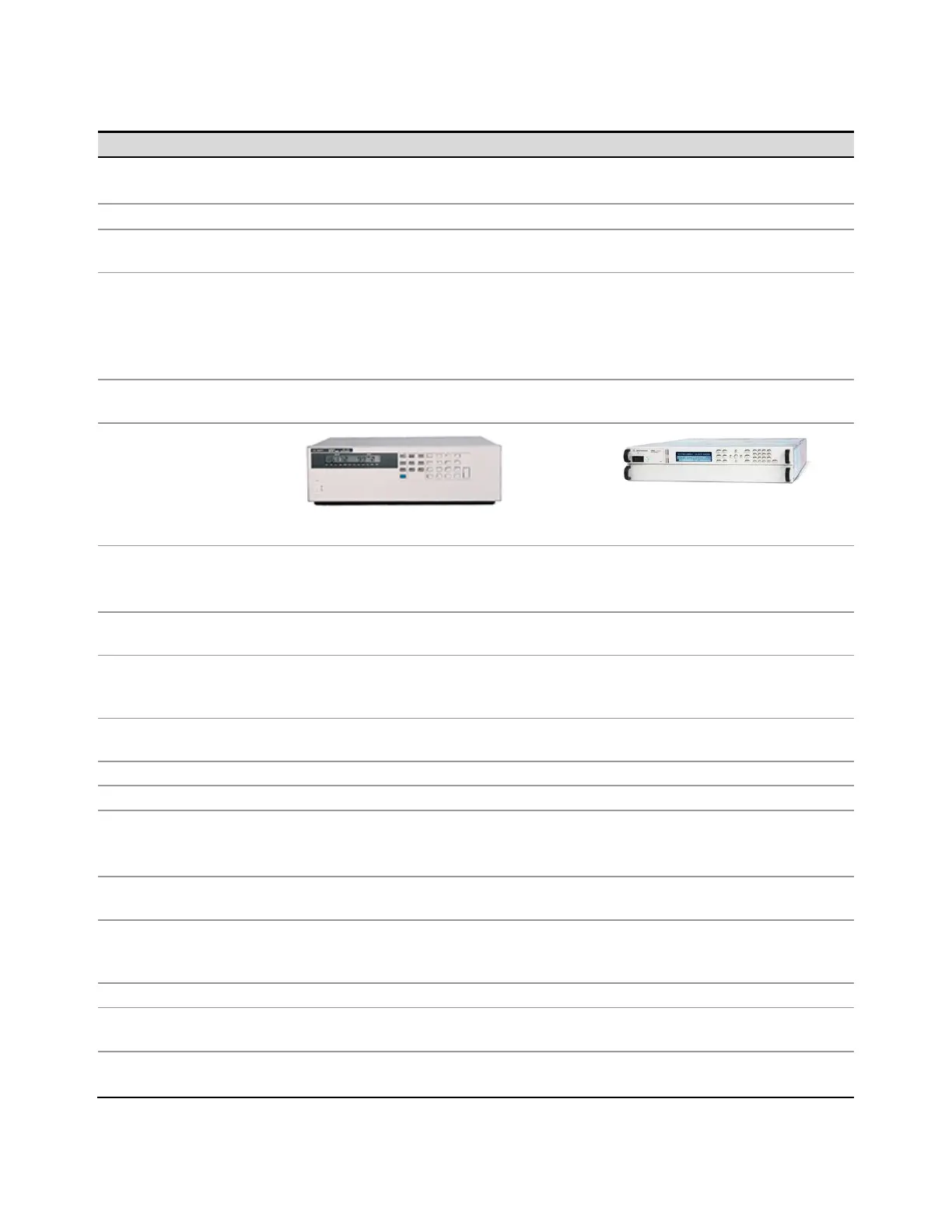

Keysight Technologies E4360 Series User Manual

Grouping/Compatibility Appendix D
Series E4360 User’s Guide 113
Item E4350B/E4351B E4360A Modular SAS
Rack unit dimensions
Height, Width, Depth
3 U
132.6mm, 425.5mm, 497.8 mm
2 U
88.9mm, 432.5mm, 608.5 mm
Rack mounting Standard support rails and ears Custom rack mount kit
Weight 25 kg
18.6 kg with two modules
installed
AC input 100, 120, 220, 240 VAC nominal
Voltages set by internal jumpers
100, 120, 220, 240 VAC nominal
Universal input; no switch settings
At 100/120 VAC nominal,
maximum current is derated to
half its rating.
Interfaces GPIB, serial link GPIB, LAN, USB, built-in Web
server
Front panel controls
I
ndividual keys for all functions
I
ndividual keys for main functions;
extensive menu controls
Output ratings
Max. short-circuit current
1 output; 480 W per output;
8 A or 4 A (model dependent)
2 outputs; up to 600 W per
output
8.5 A or 5 A (model dependent)
+/– Output connections
Bus bar terminals
Part o f 5-pin connector including
+s, –s, +D
Diode terminal Not available Connects internal diode in series
with
+ output
Remote/local sensing Remote local switch Jumpers installed from sense to
output terminals
Digital IO 4 pins, INH, FLT, and IO functions only 8 pins, extensive functionality
Auto-parallel Up to 3 outputs (3 units) Up to 4 outputs (in 2 mainframes)
Curve lists Not available Generates pre-defined I-V curves
Can contain up to 512 sets of
points
Measurement (data)
logging
Not available 64K buffer size
Over-current protection
OC - independently set for SAS and Table
modes
OCP – tied to current setting in Fixed mode
OC – independently set for all
modes
Savable states 5 in Fixed mode only 2 mainframe states
Command processing
time
20 ms 1 ms
Drivers VXI plug&play IVI-COM
14360A System Driver
