Keysight Technologies E4360 Series User Manual

General Information 1
Series E4360 User’s Guide 13

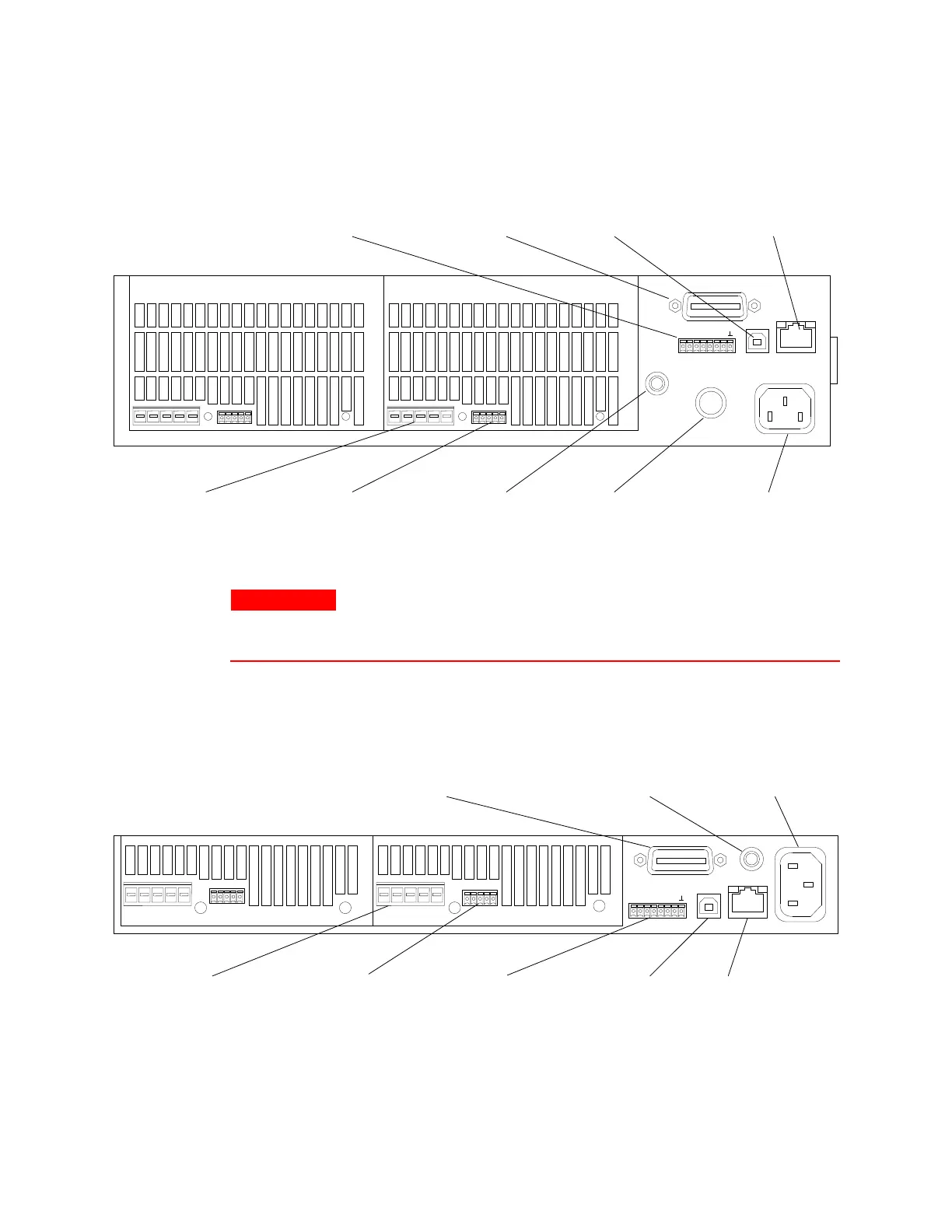

The Rear Panel – At a Glance
8-pin digital control
con nector
Connector function is
user-configurable.
GP IB connector
USB connector
LAN connector
10/100 Base-T
Green LED = activity.
Red LED = link integrity.
1 2 3 4 5 6 7
5-pin output
con nector.
+D, +/−output, &
+/− sense terminals.
5-pin analog
con nector.
IP +/−, SAS −, P , &
IM − terminals.
C h assis ground
binding post
Fuse
15 A for universal
AC input
3-p in IEC 320 AC input
con nector
Power cord requires
ground conductor.
WARNING
SHOCK HAZARD
The power cord provides a chassis ground through a
third conductor. Be certain that your power outlet is of the three-
conductor type with the correct pin connected to earth ground.
Keysight E4360J01
GP IB connector
C h assis ground
binding post
3-p in IEC 320 AC input
con nector
Power cord requires
ground conductor.
1 2 3 4 5 6 7
+D +s + - -s
+D +s
+ - -s
5-pin output connector.
+D, +/−output, &
+/− sense terminals
5-pin analog
con nector.
IP +/−, SAS −, P ,
& IM − terminals.
8-pin digital control
con nector
Connector function is
user-configurable.
USB connector
LAN connector
10/100 Base-T
Green LED = activity.
Red LED = link integrity.
