Keysight Technologies E4360 Series - Outline Diagram

Appendix A Specifications and Application Information
90 Series E4360 User’s Guide

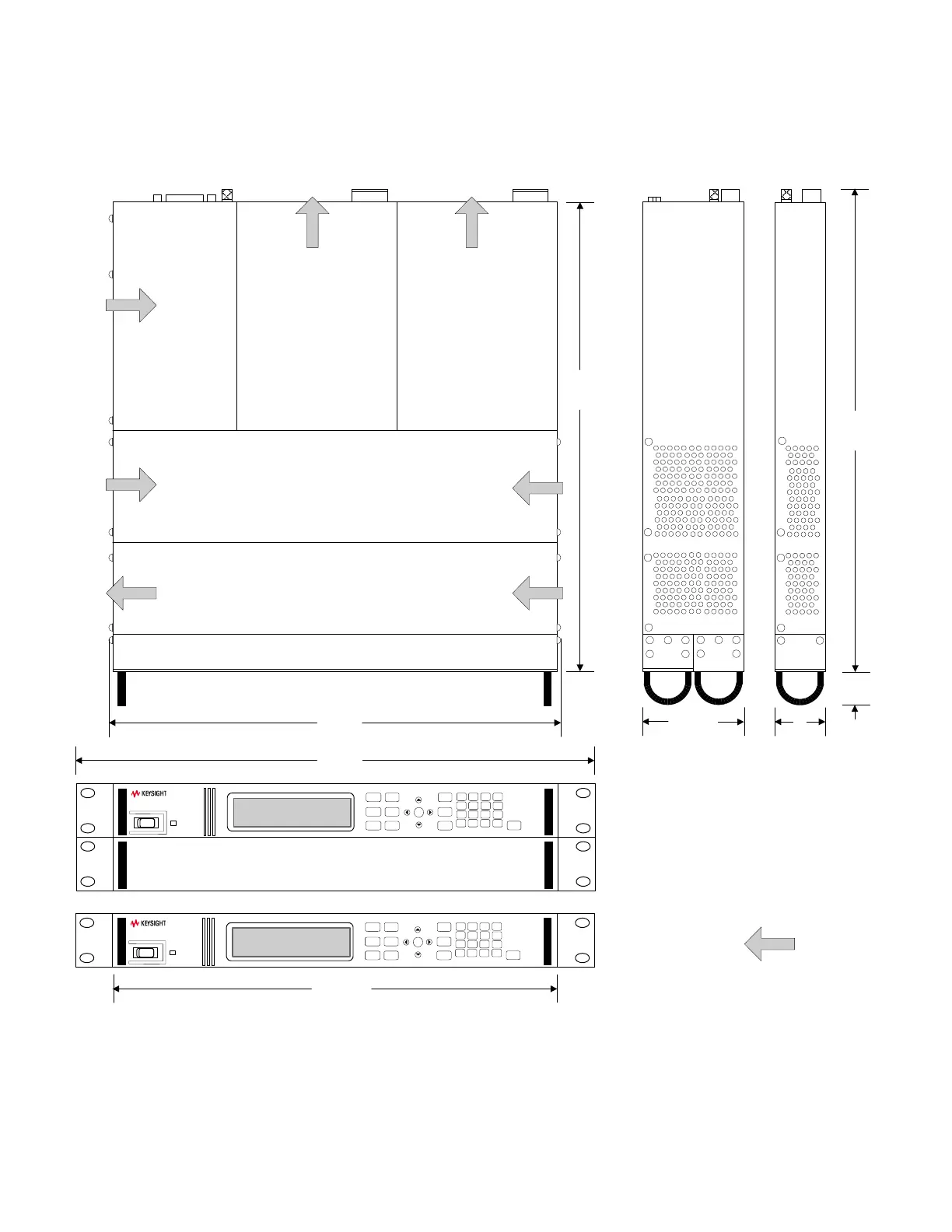

Outline Diagram
88
.1 mm
3.5"
TOP OF UNIT
.
432.5 mm
17.03"
608.5 mm
23.96"
598.0 mm
23.54"
RIGHT SIDE
482.6 mm
19.00"
425.5 mm
16.75"
25.4 mm
1.00"
= AIRFLOW
.
44.45 mm
1.75 in.
RIGHT SIDE J01
FRONT
FRONT J01
