Using the Front Panel Controls
Turning the Unit On
After you have connected the line cord, turn the unit on with the front
panel LINE switch. The front panel display will light up after a few
seconds.
When the front panel display appears, you can use the front panel
controls to enter voltage and current values.
Selecting an Output Channel
Press the Channel key to select the output channel that you wish to
program.
Entering an Output Voltage Setting
Method 1 – Use the Navigation and Arrow Keys
Navigation
Keys

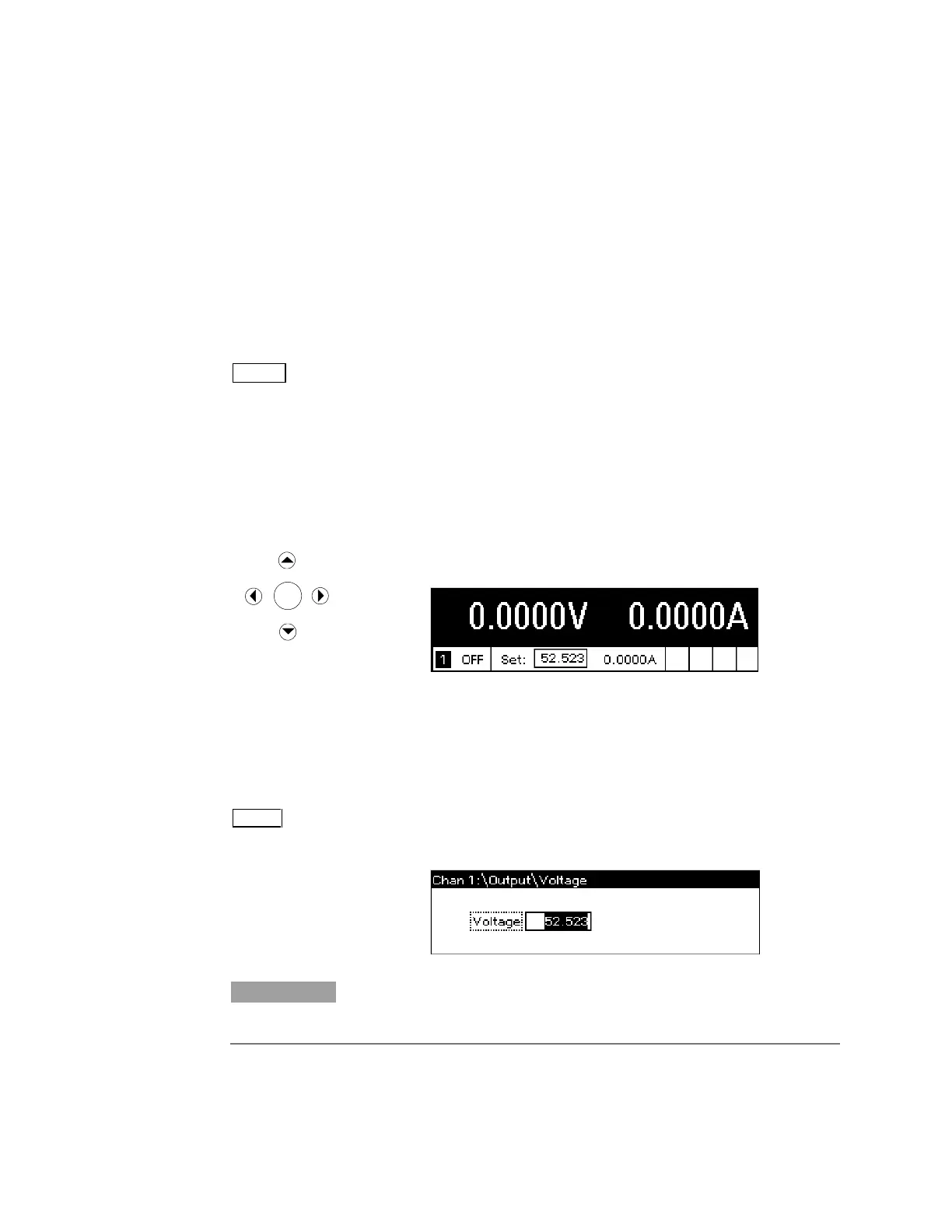

Use the left and right navigation keys to navigate to the setting that
you wish to change. In the display below, channel 1’s voltage setting
is selected. Enter a value using the numeric keypad. Then press
Enter.
Arrow Keys
You can also use the arrow keys to adjust the value up or down.
When the output is on and the unit is operating in CV mode, the
output voltage changes immediately. Otherwise, the value will
become effective when the output is turned on.
Method 2 - Use the Voltage key to enter a value
Use the Voltage key to select the voltage entry field. In the display
below, channel 1’s voltage setting is selected. Enter the desired
setting using the numeric keypad. Then press Enter.
NOTE
If you make a mistake, either use the backspace key to delete the
number, press Back to back out of the menu, or press Meter to return
to meter mode.
