Getting Started 3
Series E4360 User’s Guide 41

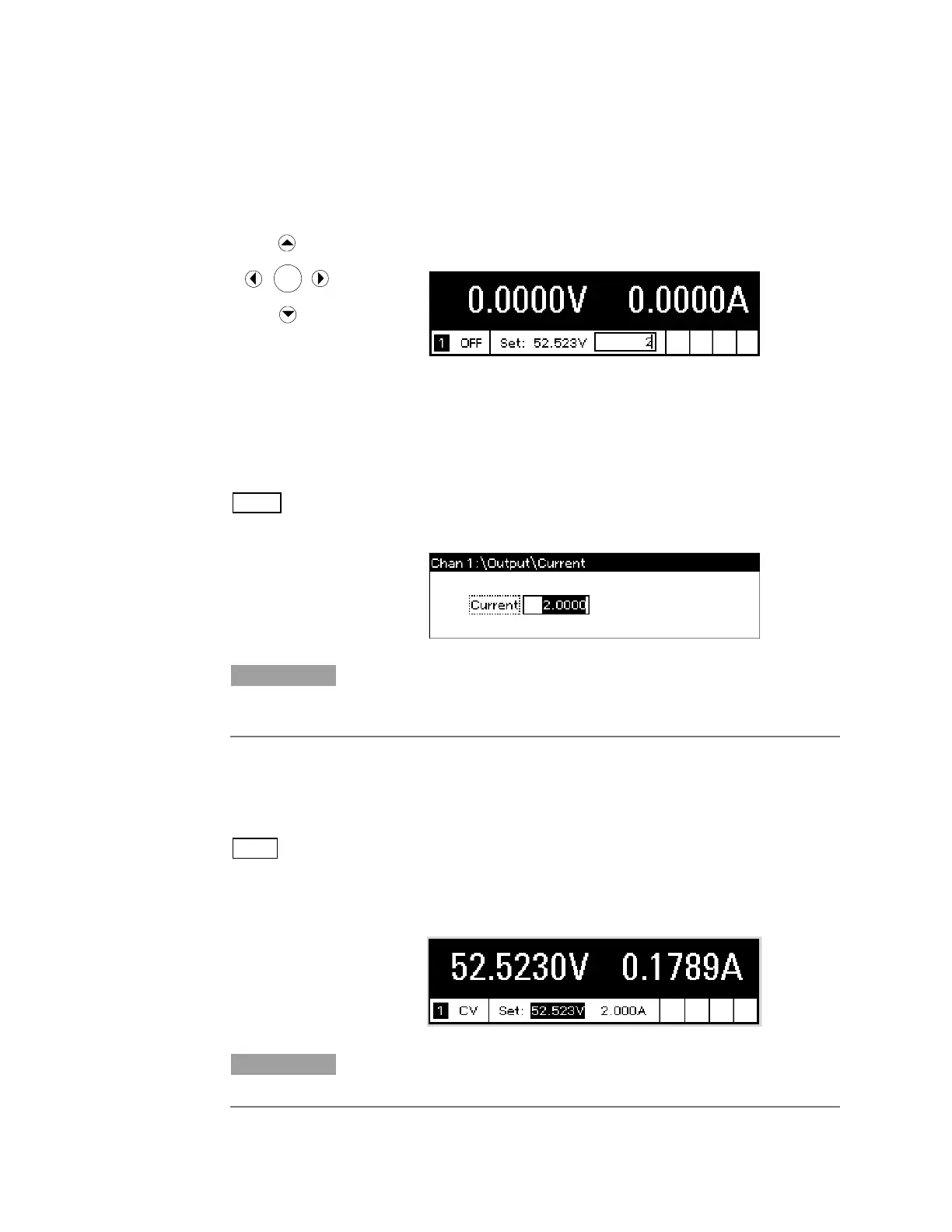

Entering a Current Setting
Method 1 – Use the Navigation and Arrow Keys
Navigation
Keys
Use the left and right navigation keys to navigate to the setting that
you wish to change. In the display below, channel 1’s current setting
is selected. Enter a value using the numeric keypad. Then press
Enter.
Arrow Keys
You can also use the arrow keys to adjust the value up or down.
When the output is on and the unit is operating in CC mode, the
output current changes immediately. Otherwise, the value will
become effective when the output is turned on.
Method 2 - Use the Current key to enter a value
Use the Current key to select the current entry field. In the display
below, channel 1’s current setting is selected. Enter the desired
setting using the numeric keypad. Then press Enter.
NOTE
If you make a mistake, either use the backspace key to delete the
number, press Back to back out of the menu, or press Meter to return
to meter mode.
Enabling the Output
Use the On/Off key to enable the output
If a load is connected to the output, the front panel display will
indicate that it is drawing current. Otherwise, the current reading will
be zero. The status indicator next to the channel number indicates
the output’s status. In this case, the output channel is in constant
voltage mode.
NOTE
For a description of the status indicators, refer to chapter 1, under
“Front Panel Display – At a Glance”.
