Using the Solar Array Simulator 4
Series E4360 User’s Guide 73
Select the Table
Select a table as follows:
Front Panel:
SCPI Command:
Select
Output\Table\Select Table.
Select a table from the list on
the left and press Select.
To select a table on output 1:
CURR:TABL:NAME name,(@1)
Enable Table Mode
To enable Table mode:
Front Panel:
SCPI Command:
Select Output\Mode.
Check that Table is selected.
To check the mode setting send:
CURR:MODE? (@1)
To enable Table mode send:

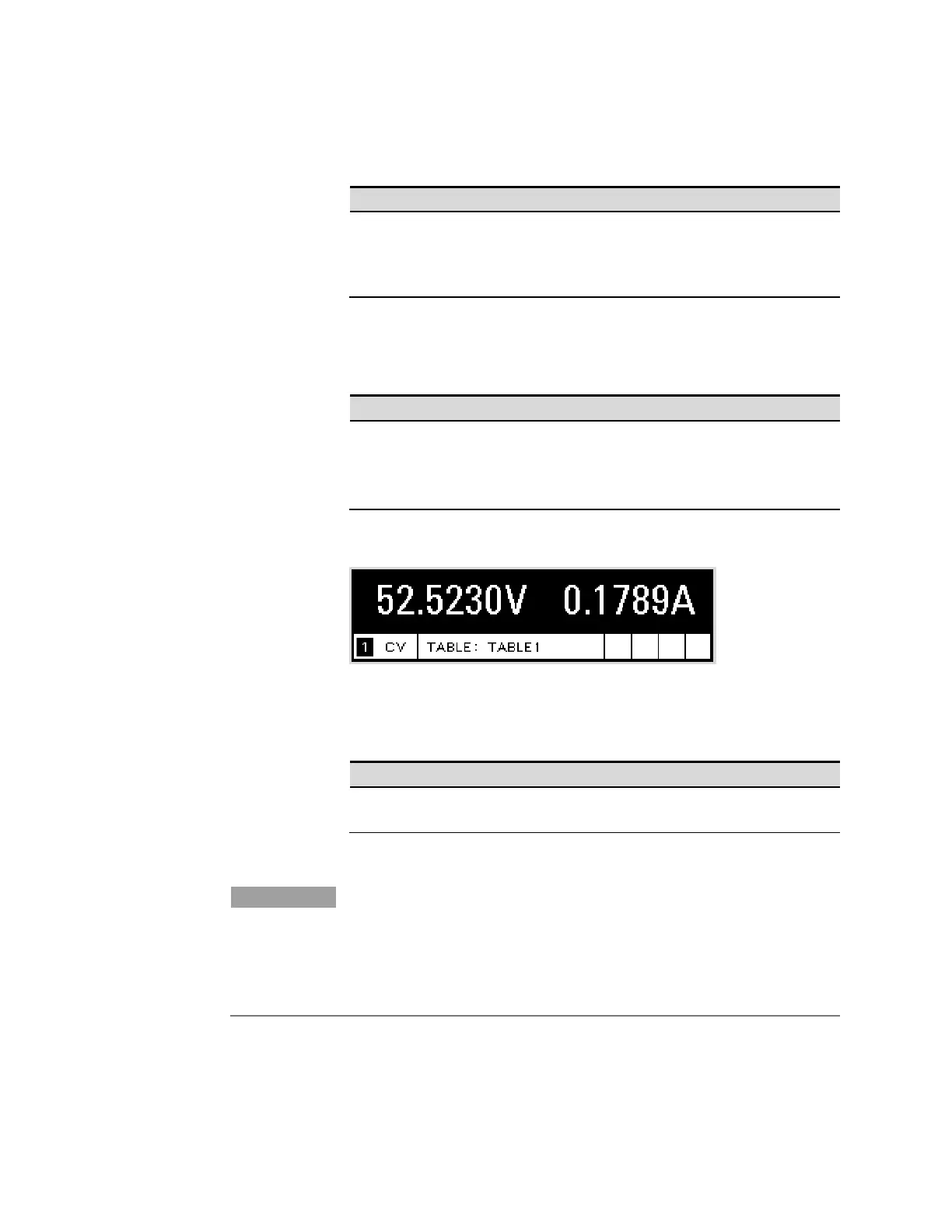

The front panel display will indicate that Table mode is in effect and
indicate which table has been selected.
Output the Table
To output the table that was previously selected:
Front Panel:
SCPI Command:
Select the correct channel.
Press the On/Off key.
To run the table on output 1:
NOTE
When the unit detects an invalid I-V point, it will generate an error,
light the ERR annunciator on the front panel, and will not use the new
parameters. Instead, it will operate with the last valid table settings.
Therefore, although it may seem that the unit is operating correctly, it
will NOT be using the values that you have programmed for Table
mode.
