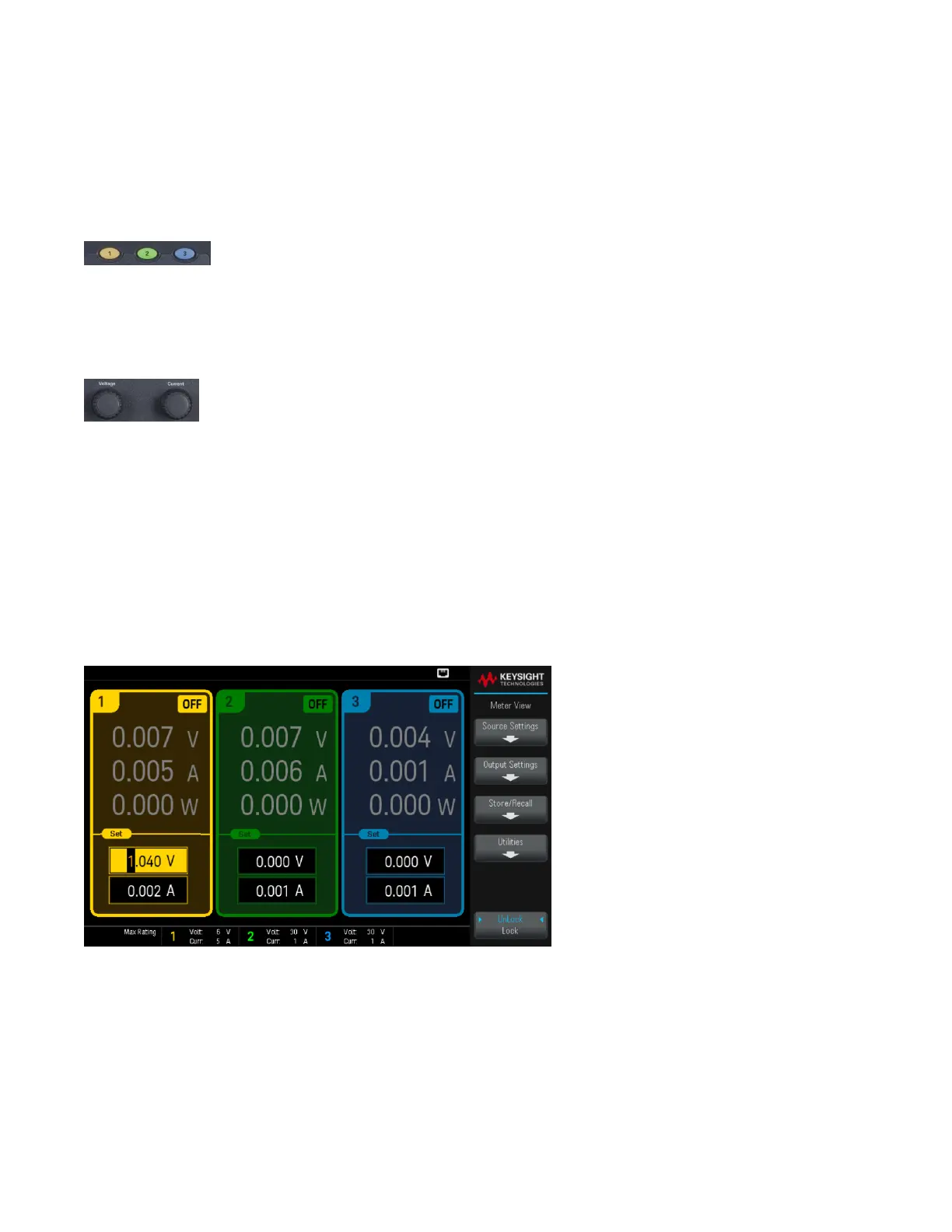

Controlling the Outputs
Step 1 - Select an output
Press one of the output selection keys to select an output to control. The lit key identifies the selected output. All
subsequent output-specific front panel commands are sent to the selected output.
Step 2 - Set the output voltage and current
Turn the Voltage and Current knobs. The output voltage or current setting changes when they are turned.
You can also enter the voltage and current values directly in the numeric entry fields (the Set fields) in the meter-view
display. There are three methods to enter the value:
–
Numeric keys: Use the navigation keys to select the field; use the numeric entry keys to enter the value. The value
becomes active when you press [Enter].
–
Navigation keys: Use the navigation keys to select the field, press [Select] to edit. Use the left or right arrow to
select the area of value edit. Use the up or down arrow to increase or decrease the value. The value becomes active
when you press [Select] or [Enter].
–
Voltage and Current knobs: use the Voltage and Current knobs to adjust the values in the Voltage and Current
fields.
Lastly, you can press the Source Settings key to access the Source Settings window. Use the navigation keys to
highlight the Voltage or Current fields. Then enter the voltage and current values with the numeric keys.
Press [Enter] to enter the value. Press Back to return to the meter-view display.
Keysight EDU36311A User's Guide 41
