Locking/Unlocking the Front Panel
1.

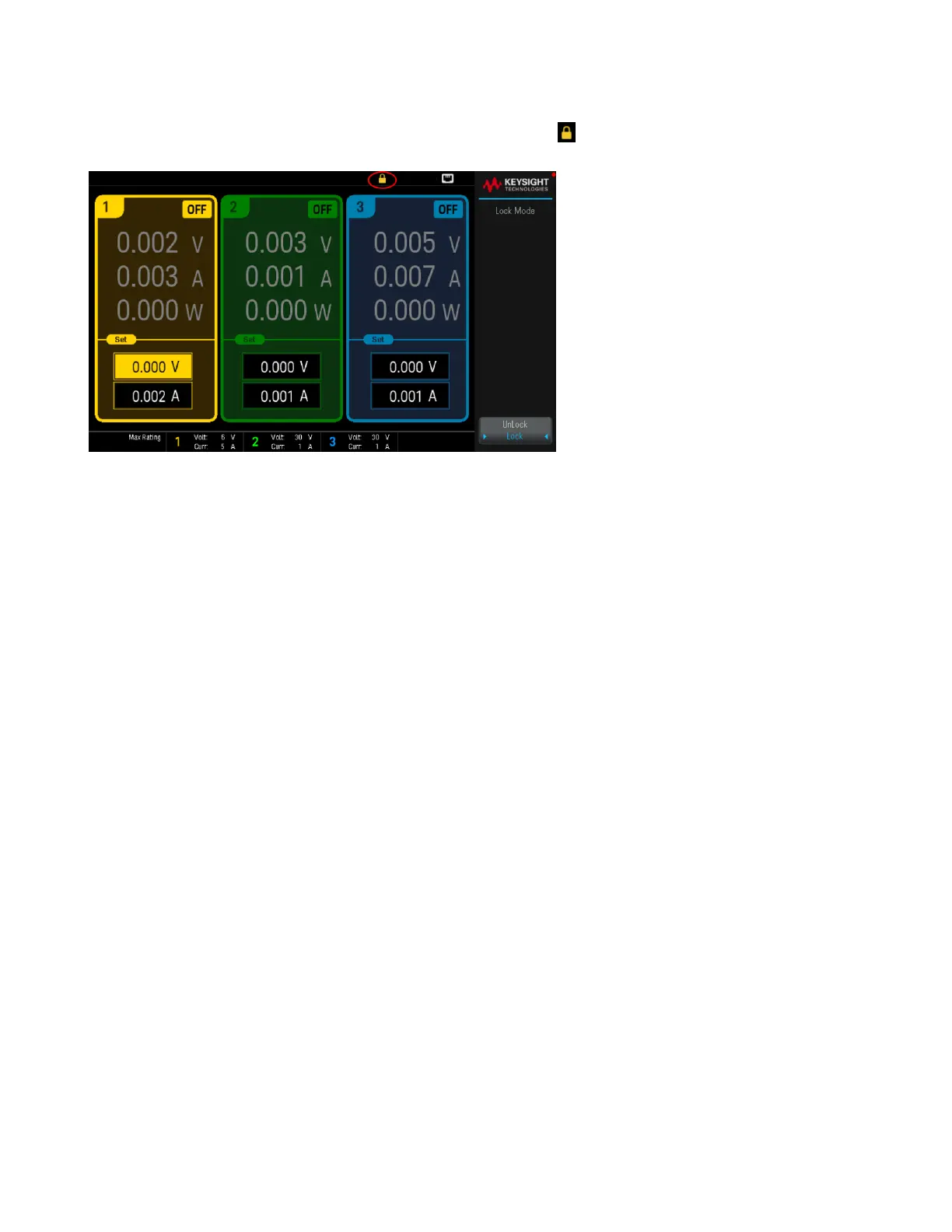

Press Unlock Lock to lock the front panel. This produces lock icon( ) in the upper corner of the display, as
shown below.
2. Select Unlock to unlock the front panel.
From the remote interface:
To lock all front panel keys including Unlock Lock key:
SYST:RWL
To lock all front panel keys except Unlock Lock key:
SYST:REM
To unlock the front panel:
SYST:LOC
Capturing a Screen
Press Back for more than three seconds to capture a screen (.bmp format). The screen that was active will be saved
to the USB flash drive connected to the front USB port.
54
Keysight EDU36311A User's Guide
