Configuring the Output Turn On Turn Off Sequence
Turn-on and turn-off delays control the turn-on and turn-off timing of the outputs in relation to each other.
Step 1 – Set the output voltage and current of the output channels:
Refer to steps 1 and 2 under Controlling the Outputs and set the output voltage and current values of all outputs
that will be sequenced.
Step 2 – Configure the turn-on turn-off delays:

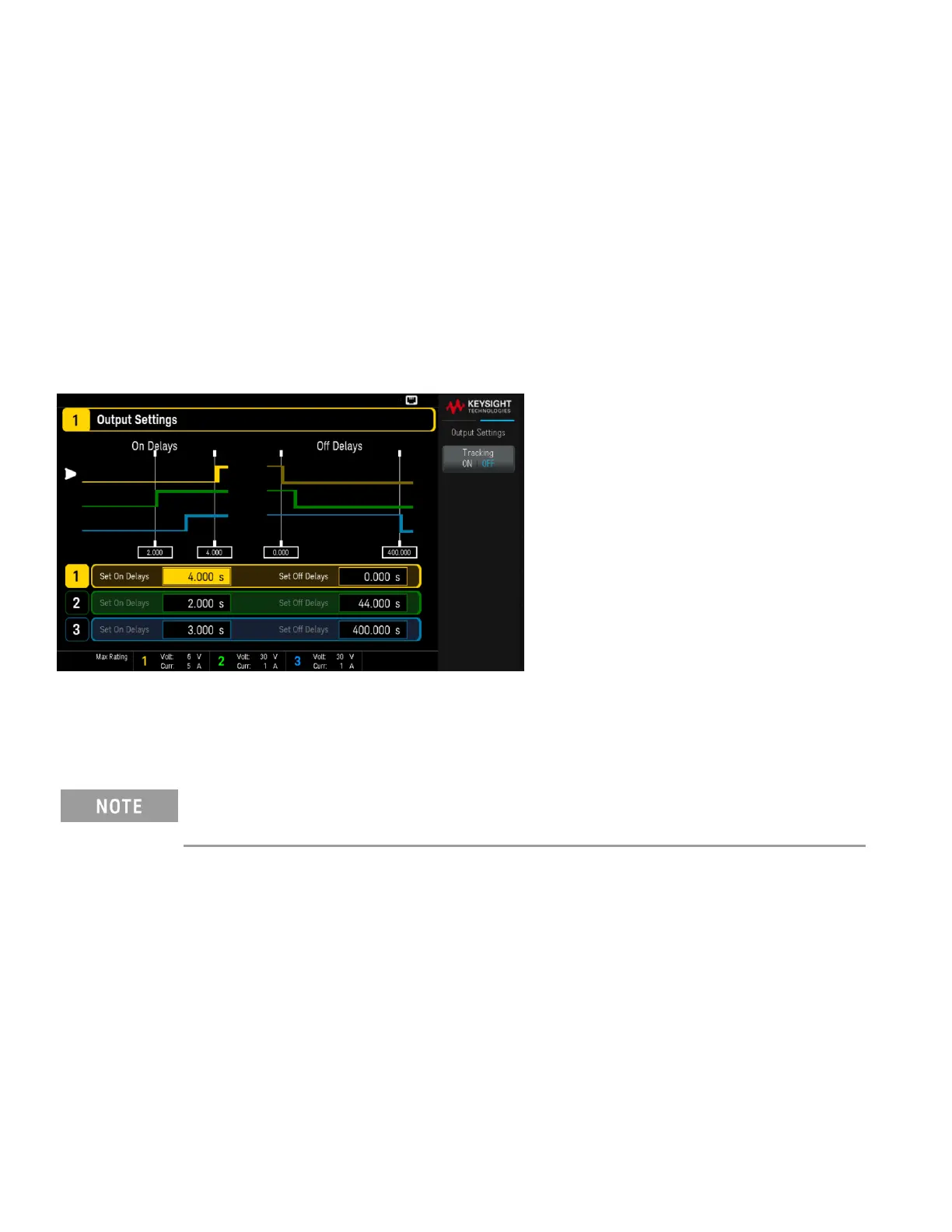

Press Output Settings to access the On/Off Delays settings. Enter the On Delays and Off Delays for all outputs that
will participate in the output on/off delay sequence. Values can range from 0 to 3600 seconds.
Step 3 – Use the All Outputs On and Off keys:
Once output delays have been set, press [All On/Off] to start the On delay and Off delay sequence.
[All On/Off] will turn ALL outputs on or off, whether they are configured to participate in an output on/off
delay sequence or not.
From the remote interface:
To program turn-on and turn-off delays for outputs 1 through 3:
OUTP:DEL:RISE 0.01,(@1)
OUTP:DEL:RISE 0.02,(@2)
OUTP:DEL:RISE 0.03,(@3)
OUTP:DEL:FALL 0.04,(@1)
OUTP:DEL:FALL 0.03,(@2)
OUTP:DEL:FALL 0.02,(@3)
To turn on all the outputs in sequence:
OUTP ON, (@1:3)
