Using the Tracking Operation
The EDU36311A provides 0 to 30 V tracking outputs. In the track mode, two voltages from Output 2 and Output 3
track each other for convenience in varying the symmetrical voltages needed by operational amplifiers and other
circuits using balanced positive and negative inputs.
1.
Set Output 2 to your desired voltage.
2. Press [Tracking] to enable track mode. You can also enable the track mode by pressing Output Settings >
Tracking ON | OFF .
When track mode is enabled, Output 3 will be set to the same voltage level as the Output 2 and vice versa. The
current limit is independently set for each of the outputs and is not affected by the track mode.
3.
Verify that both Output 2 and 3 track each other properly.

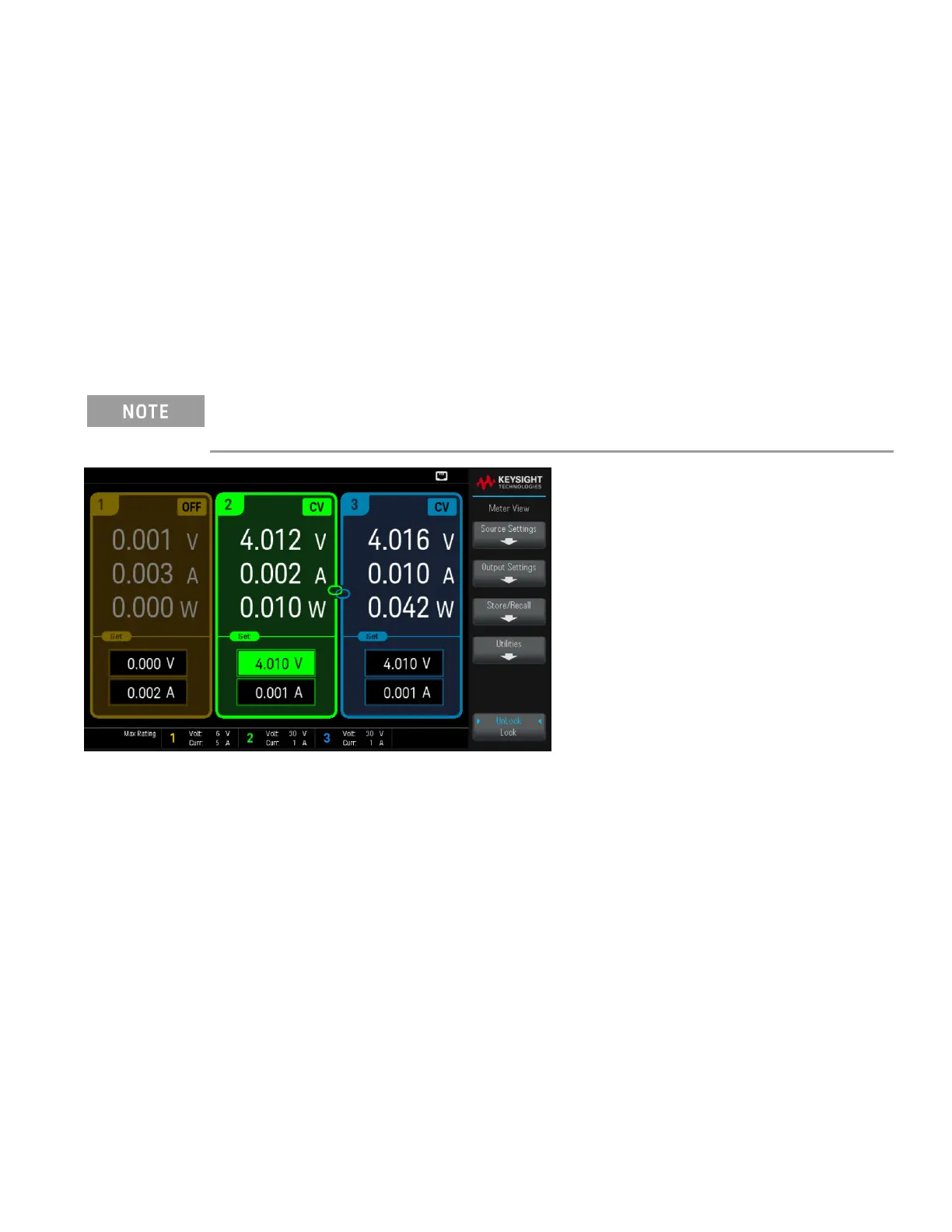

You can verify from the front-panel display by comparing the voltage values of Output 2 and Output 3.
In the track mode, if the CC annunciator is lit when the display is selected for the 30 V supply, choose a higher
current limit for the 30 V supply.
From the remote interface:
To enable track mode:
OUTP:TRAC ON
Keysight EDU36311A User's Guide 47
