Modifying the LAN settings
As shipped from the factory, the instrument pre-configured settings should work in most LAN environments. Refer
to Non-Volatile Settings in the Programming Guide for information on the factory-shipped LAN settings.

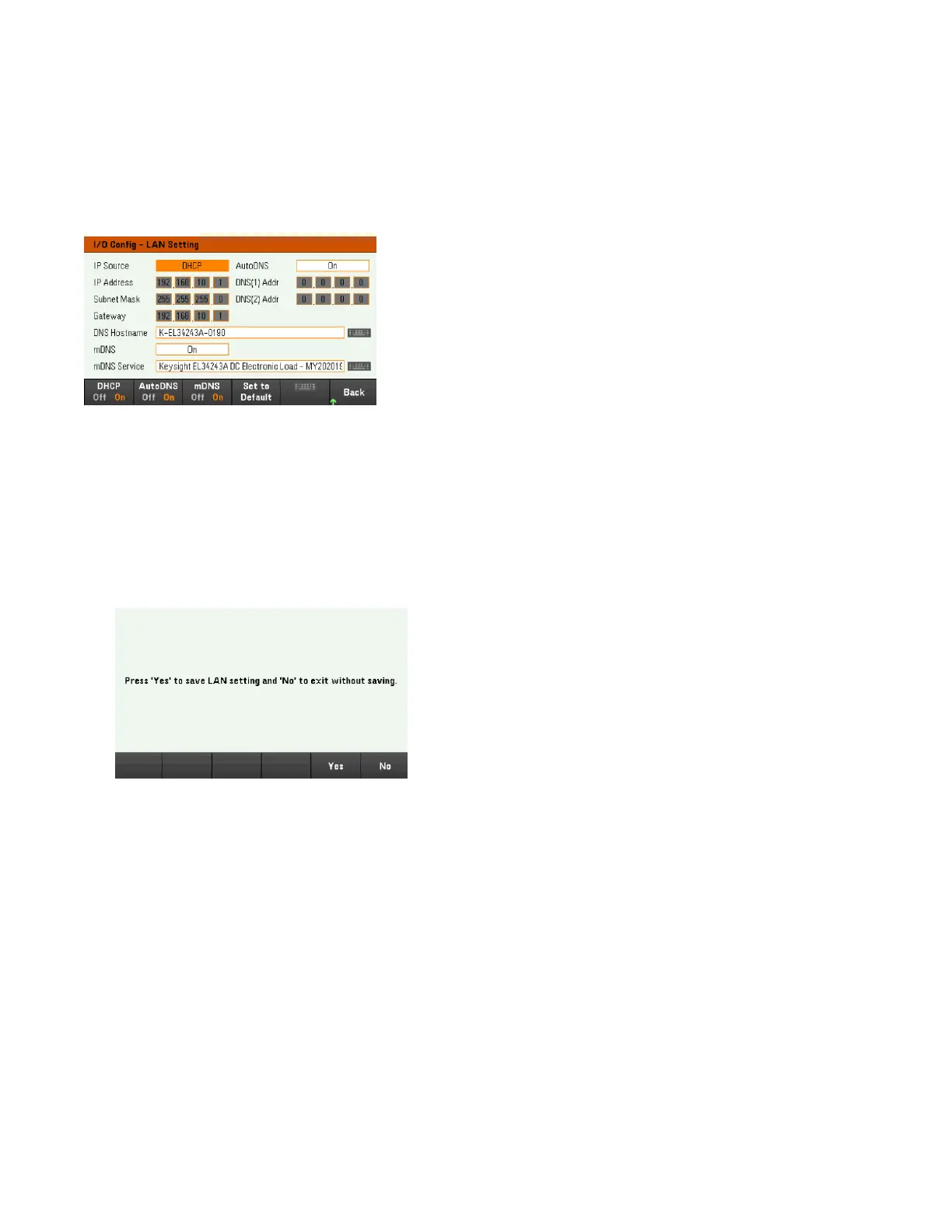

Press Utilities> I/O Config > LAN Settings to access the LAN Settings window. From this menu, you can manually
configure the LAN settings.
DHCP
DHCP (Dynamic Host Configuration Protocol) can automatically assign a dynamic IP address to a LAN device. This is
typically the easiest way to configure the instrument for LAN.
– This setting is non-volatile; it will not be changed by power cycling or *RST or SYSTem:PRESet.
1. Press Utilities > I/O Config > LAN Settings > DHCP On to use DHCP to automatically assign an IP address.
2. Press Back. You will be prompted by the below message.
3. Press Yes to save the setting.
4. Press No to cancel all the changes and exit without saving.
To manually set an IP address, Subnet Mask, or Default Gateway, press DHCP Off. Then, change the IP setup as
described below.
Keysight EL30000 Series User's Guide 49
