Using the Scope Function
Making measurement
Scope view
Scope marker view
Using the knob in scope view
Scope properties and waveform settings
Scope marker properties
Save the scope data
The scope function is similar to a bench oscilloscope, displaying input voltage and current signals as a function of
time. It has controls that select which inputs and functions to display, front panel knobs that adjust gain and offset,
and configurable triggers and markers.
You can configure the Scope View to display voltage or current waveforms for all inputs. As explained under
Horizontal Settings (Hr), the maximum sampling rate of the scope varies, depending on the number of waveforms
that are displayed. Note that in the Scope View there is only one time-base and trigger configuration for all inputs.
Making measurement
In the following measurement example, an input turn-on sequence is displayed using the oscilloscope. The
oscilloscope measures the actual current as the inputs turn on.
Step 1 — Set the load operating mode to CC
Press Mode > Mode CC.
Step 2 – Program the input current values

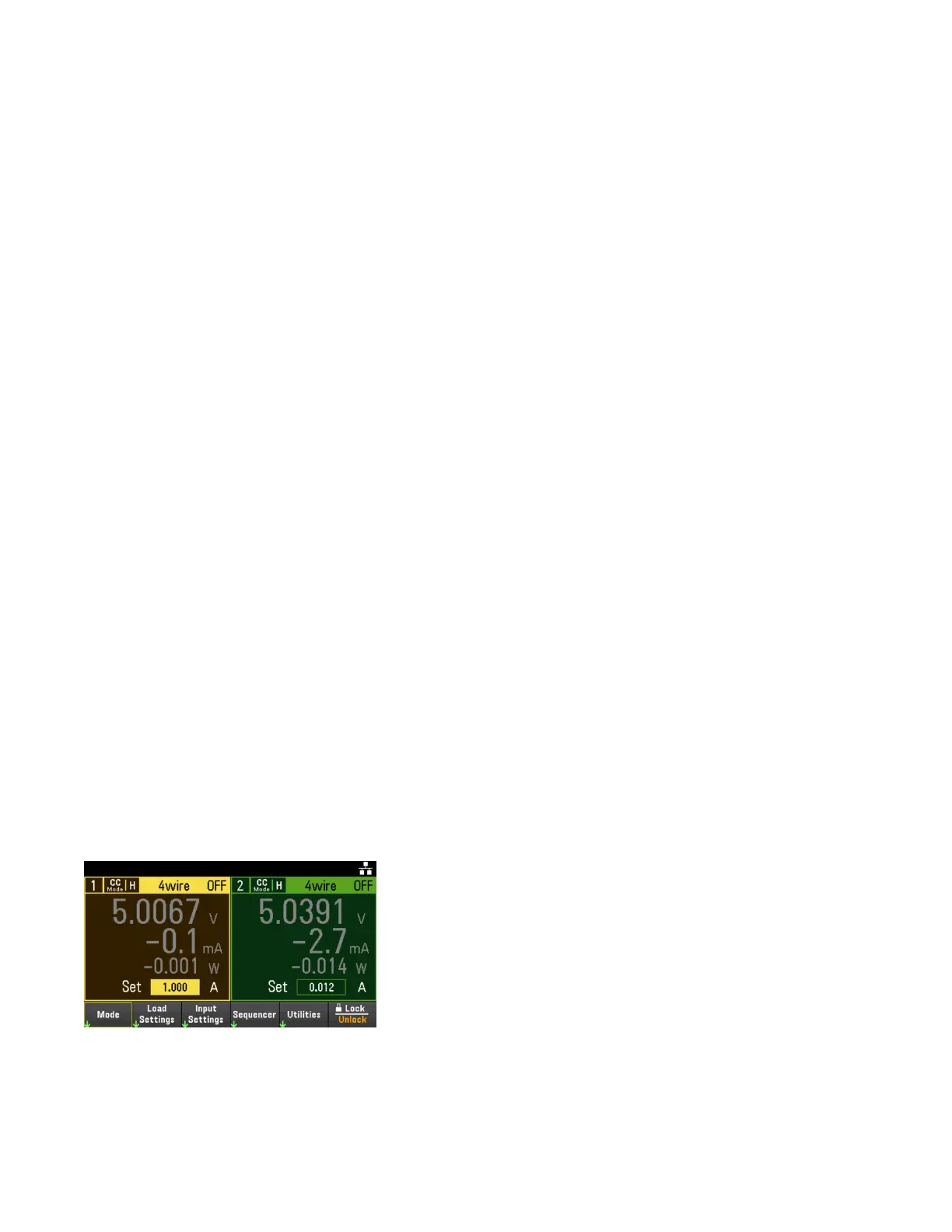

In Meter View, set the input current of input 1 to 1 A. This is described under Controlling the Inputs.
Step 3 - Configure the input turn-on sequence
Configure the input turn-on sequence as described under Configuring the Input Turn-On/Turn-Off Sequence.
Keysight EL30000 Series User's Guide 115
