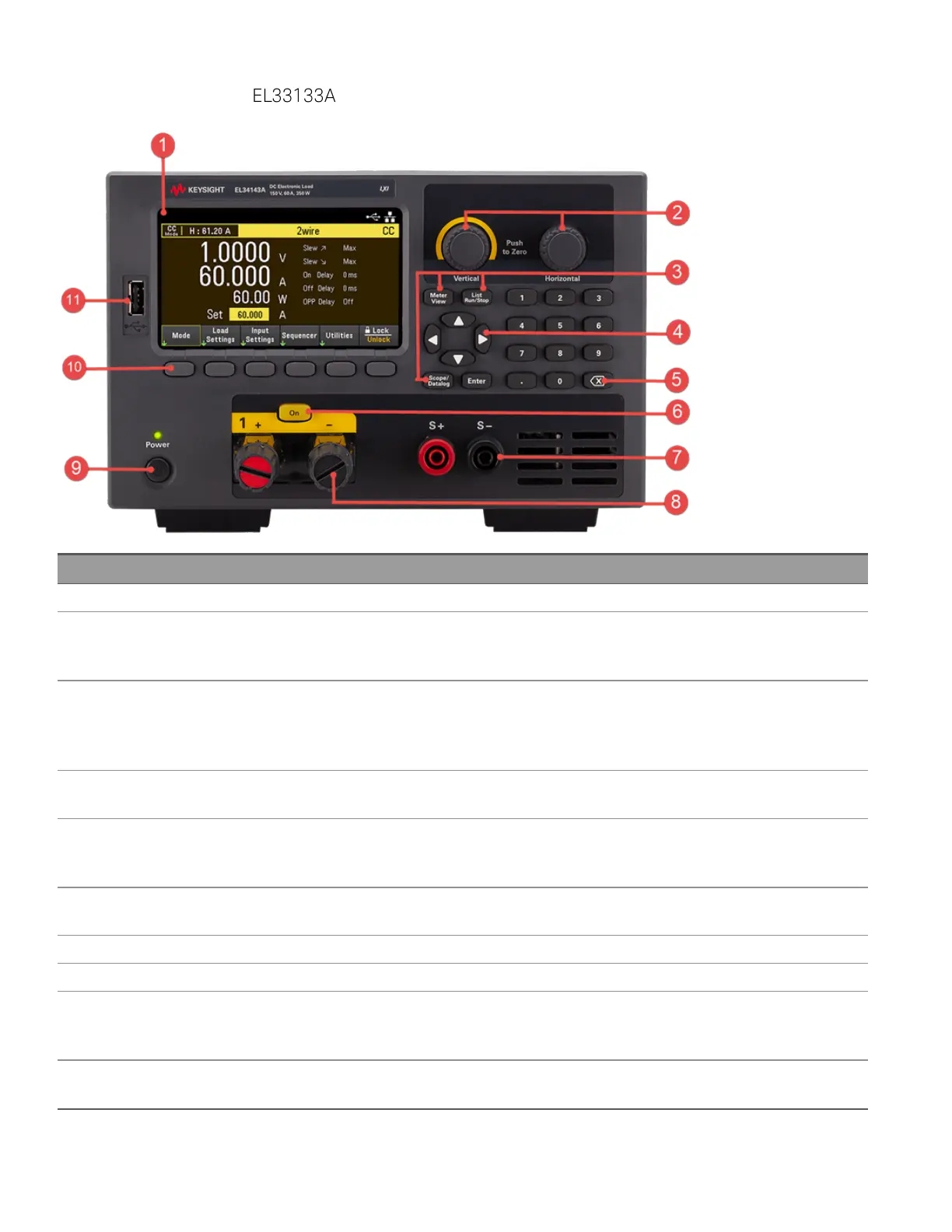

Front panel at a glance (EL33133A/EL34143A)
Item Description
1 Information-packed, high contrast 4.3-inch LCD color display; easily viewable even from sharp angles
2 Vertical and Horizontal knobs
Use Vertical knob to set the input value for input 1. These knobs are active in Meter View, Scope View, Data Logger View, and
Settings page.
3 Meter View, List Run/Stop, and Scope/Datalog keys
– [Meter View] turns on the meter view for the selected input.
– [List Run/Stop] runs or stop input sequencer list on all channels simultaneously.
– [Scope/Datalog] toggles between Scope view and Data Logger view.
4 Navigation keys.
– Navigate through the control dialog windows; press [Enter] key to select a control.
5 Numeric keypad
– Enters numeric values. Press [Enter] key to complete the entry.
– Deletes the values entered into the dialog using the back key.
6 Input On key
Turns the input On or Off; input is on when the key is lit.
7 Sense terminals
8 Input terminals
9 Power key and LED indicator
Turns on the instrument. If the LED is amber, the instrument is in standby mode with AC inlet power connected, and if it is green, the
instrument is on.
10 Softkeys
Accesses the soft front panel menu.
18
Keysight EL30000 Series User's Guide
