Specifying the Operation Mode (EL34243A only)
The Operation Mode allows you to specify the input capability when two independent inputs are being used.
–
Independant: This operation supply two independent inputs capability to a maximum rating of +150 V, +60 A.
In Independent mode, the instrument is at its default input state.
–
Parallel: This operation increases the current capability to a maximum rating of +150 V, +120 A. In Input-Par-
allel mode, the instrument doubles the input current on Input 1.

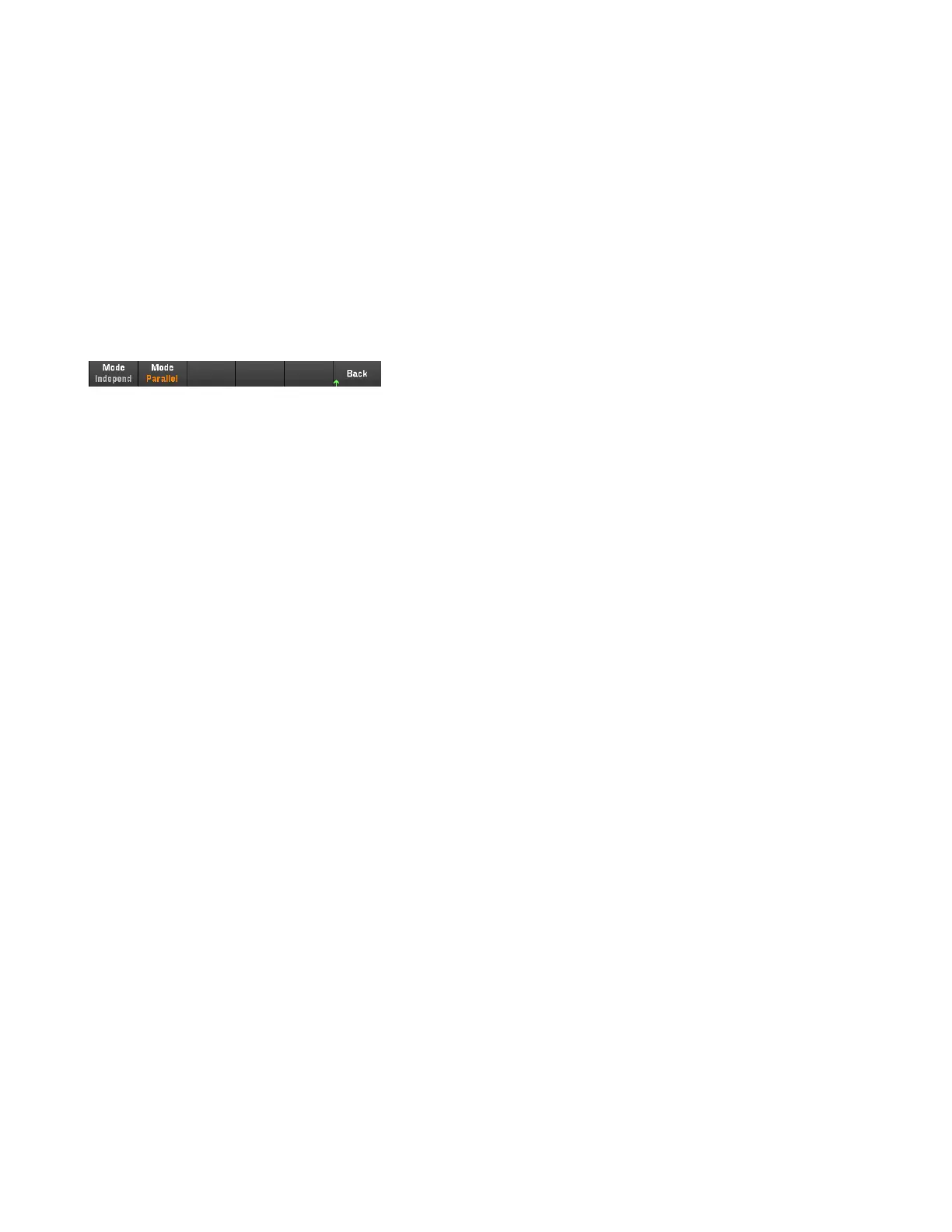

1. Press Input Settings > Operation Mode.
2. Press Independant or Parallel to select the desired operation mode.
3. Press Back to exit.
For input connection in Input-Parallel mode, see Parallel Connections for details.
From the remote interface:
To enable Input-parallel mode:
INP:PAIR PAR
78
Keysight EL30000 Series User's Guide
