Digital IO

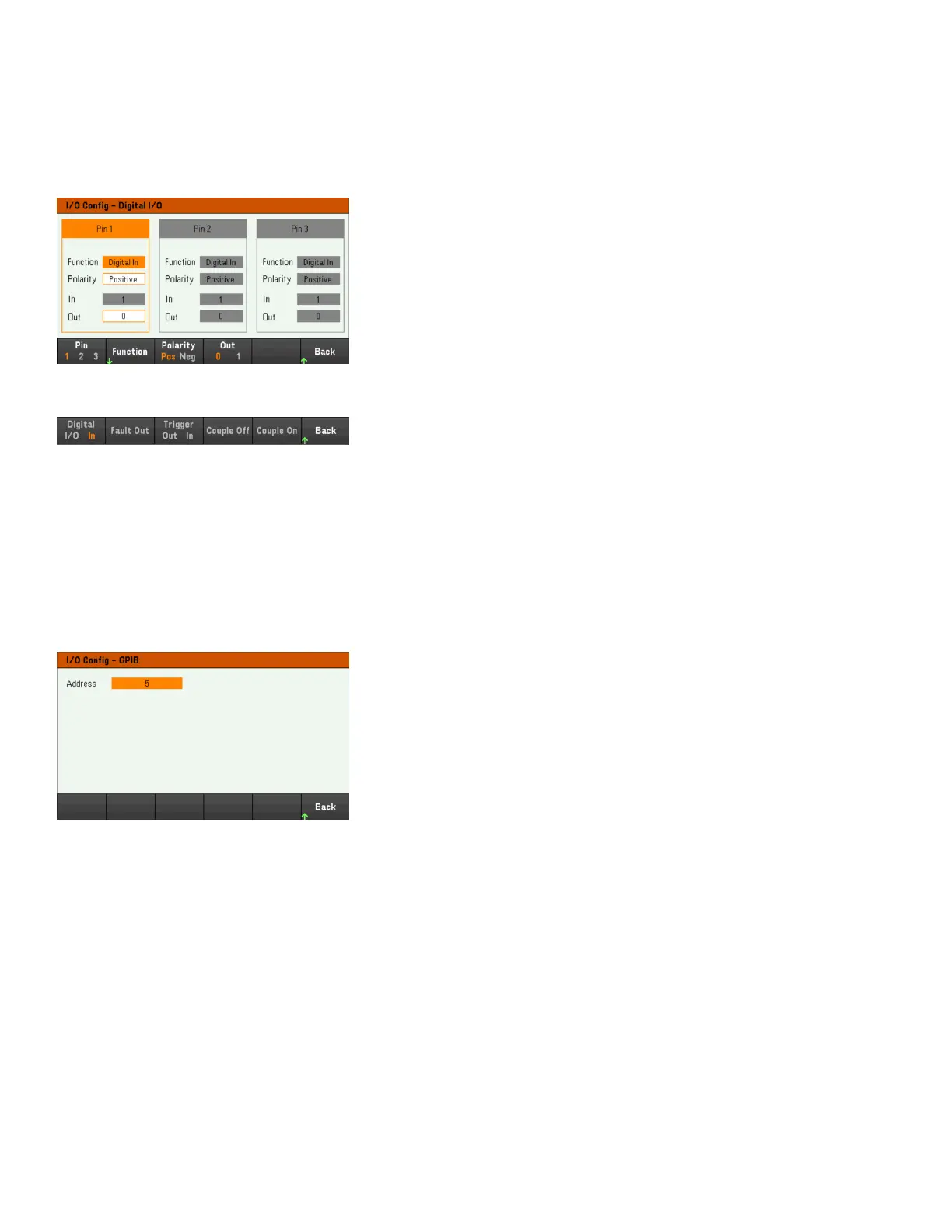

Digital IO configures the rear panel digital port's pin function, polarity and output data applied to the pin.
Pin selects the pin for configuration.
Functions configures the function for each pin as shown below.
Polarity configures the polarity to Positive (POS) or Negative (NEG) for the selected pin.
Out enables (1) or disables (0) the output data for the selected pin.
GPIB (optional)
GPIB allows you to set the GPIB address to a value from 0 to 30. After changing the address, cycle the instrument's
power for the changes to take effect.
132
Keysight EL30000 Series User's Guide
