Utilities Menu
Utilities provides the following features:
Store and recall state and power on settings
View USB and LAN status as well as configure LAN, GPIB (optional), and digital IO
Perform instrument self-tests, calibration, and configures the instrument's various user settings, date and time
Displays the instrument's error queue
Manage files, including creating screen shots
Utilities Menu - Store and Recall State

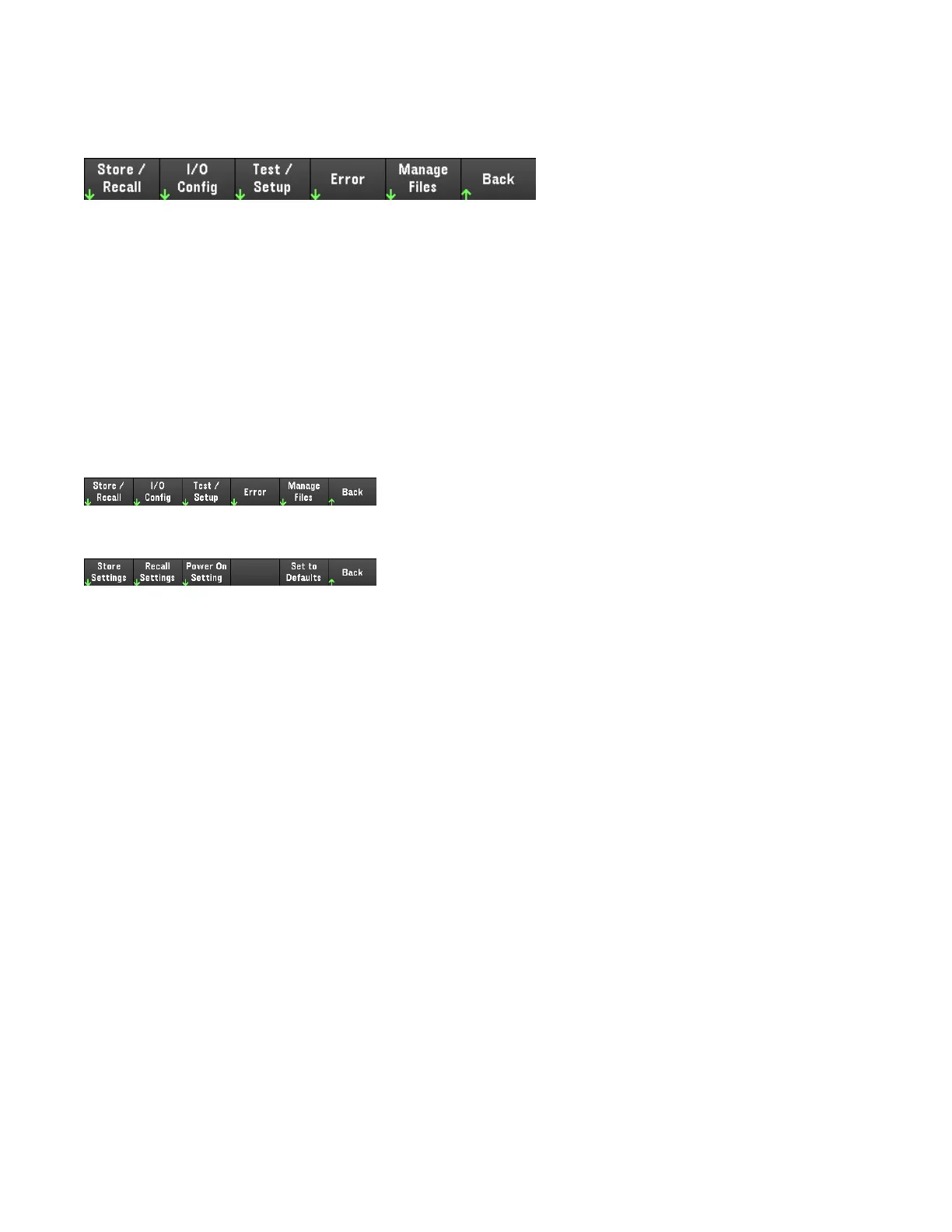

The Utilities menu is shown below.
Store/Recall saves and recall states. In general, state files store volatile settings associated with measurements.
The instrument states include volatile settings such as:
– Voltage, current, resistance, power, range, slew, mode, sense, short and current limit
– OCP delay, OCP state, OCP delay start, OPP state, OPP delay and UVI
– Input state and selected input
– Operation mode (Independent or Parallel)
1
– Input on/off sequencing
– Sequencer settings
– Trigger settings
– Digital I/O input data and bus setting
– Scope and data logger trigger source
1. Applicable for EL34243A only
