Note that you will only need to configure the Turn-on delays, not the turn-off delays.

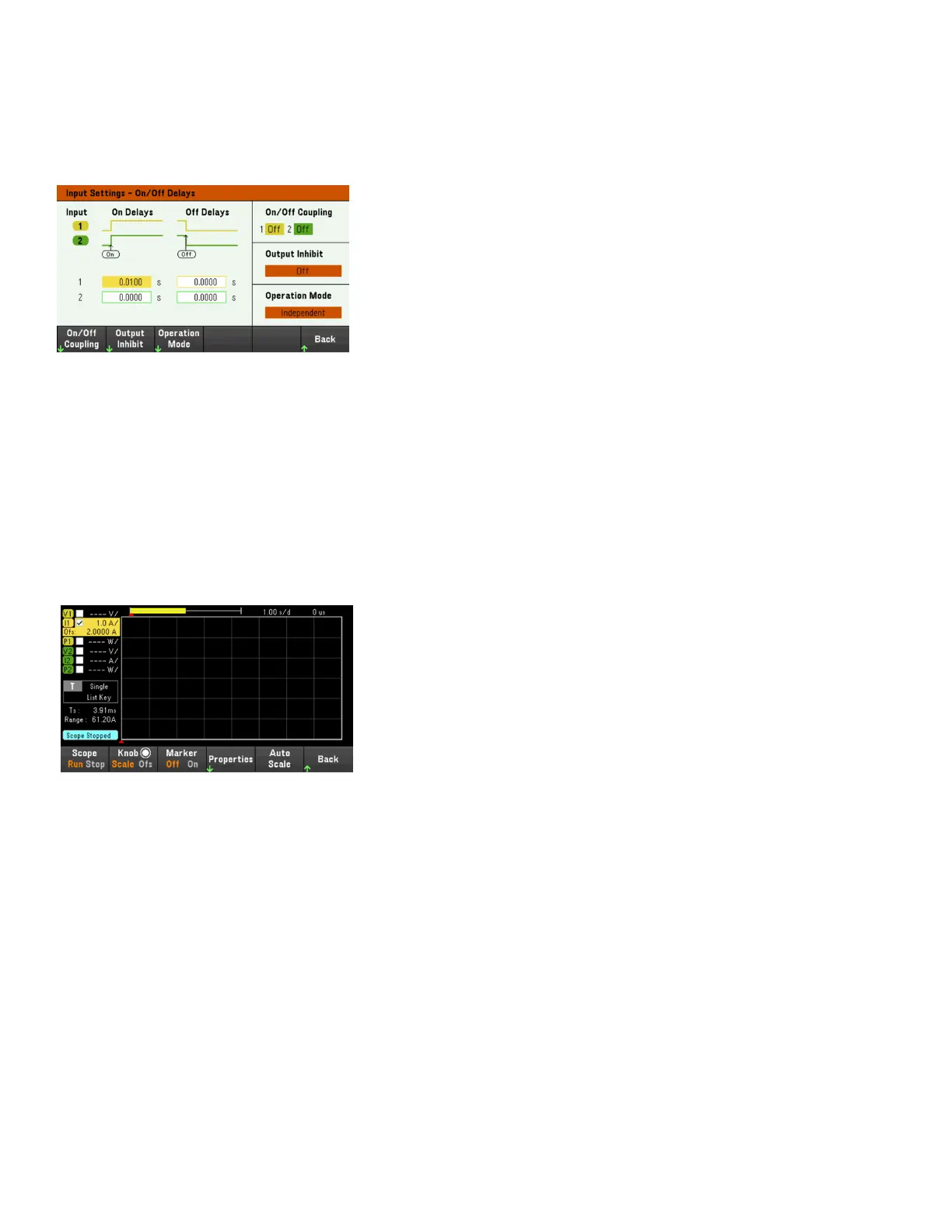

The turn-on delays for the input channels are as follows:
– Input 1: 10 ms
Step 4 - Configure the Scope View traces
– Uncheck V1 and V2.
– Check I1.
– Press Knob Scale and use the Vertical knob to set I1 to 1 A/Div.
– Press Knob Ofs and use the Vertical knob to set offset to 2 A.
– Press Knob Scale and use the Horizontal knob to set the timebase to 1 s.
Step 5 – Configure the Scope properties:
Press Properties to configure the scope properties as follows:
–
Press Settings > Trigger Source > List Key to select [List Run/Stop] key as a trigger source. Press Back to
return to Settings menu.
–
Press Trigger Mode > Single to display a single sweep measurement. Press Back twice to return to the Scope
Properties menu.
–
Set the Time Reference to Left in Horizontal Settings (Hr) window: Press Settings > Time Ref Lf.
