3. Press Stop to exit the log playing.
To pause the log play:
1. Press Pause Resume
to pause or resume the log playing.
2. Press Stop
to stop the log playing.
Step 7: Import and Play back KML Files into 3rd Party Software
(Example: Google Earth with Animation Tool)
Features
Use the Playback Slider to replay measurement results. See also Google Maps
and or Google Earth’s help. Refer to Figure 16 on page 358.
— Open the FieldFox *.KML file in Google Earth. The time slider appears in
upper left of the map.
— Manual Mode – Move the time slider cursor to see color-coded icons
pop-up according to the timestamp.
— Loop mode has a Fast-Slow Replay Option.
— Click on each color coded balloon to see the table of measurement results
for that location.

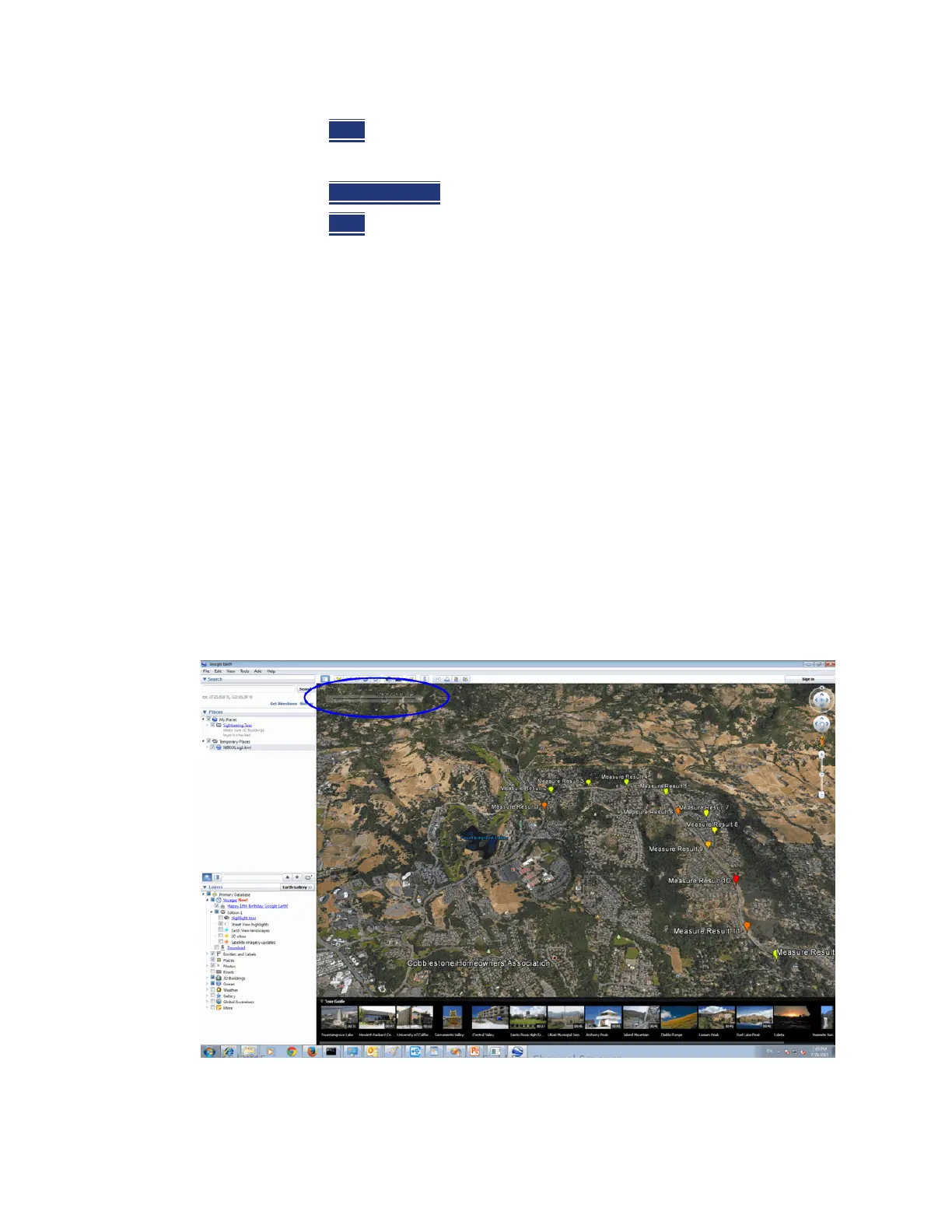

Figure 16 Importing a KML File Into Google Earth
