How to Set Up Mapping Settings
How to Set Up Mapping Settings
This section reviews the steps in setting up an Option 352 Mapping
measurement.
This section consists of:
— “How to Set Up Mapping When the FieldFox Is On The LAN”
— “Option 352 Indoor Maps Setup Procedure”

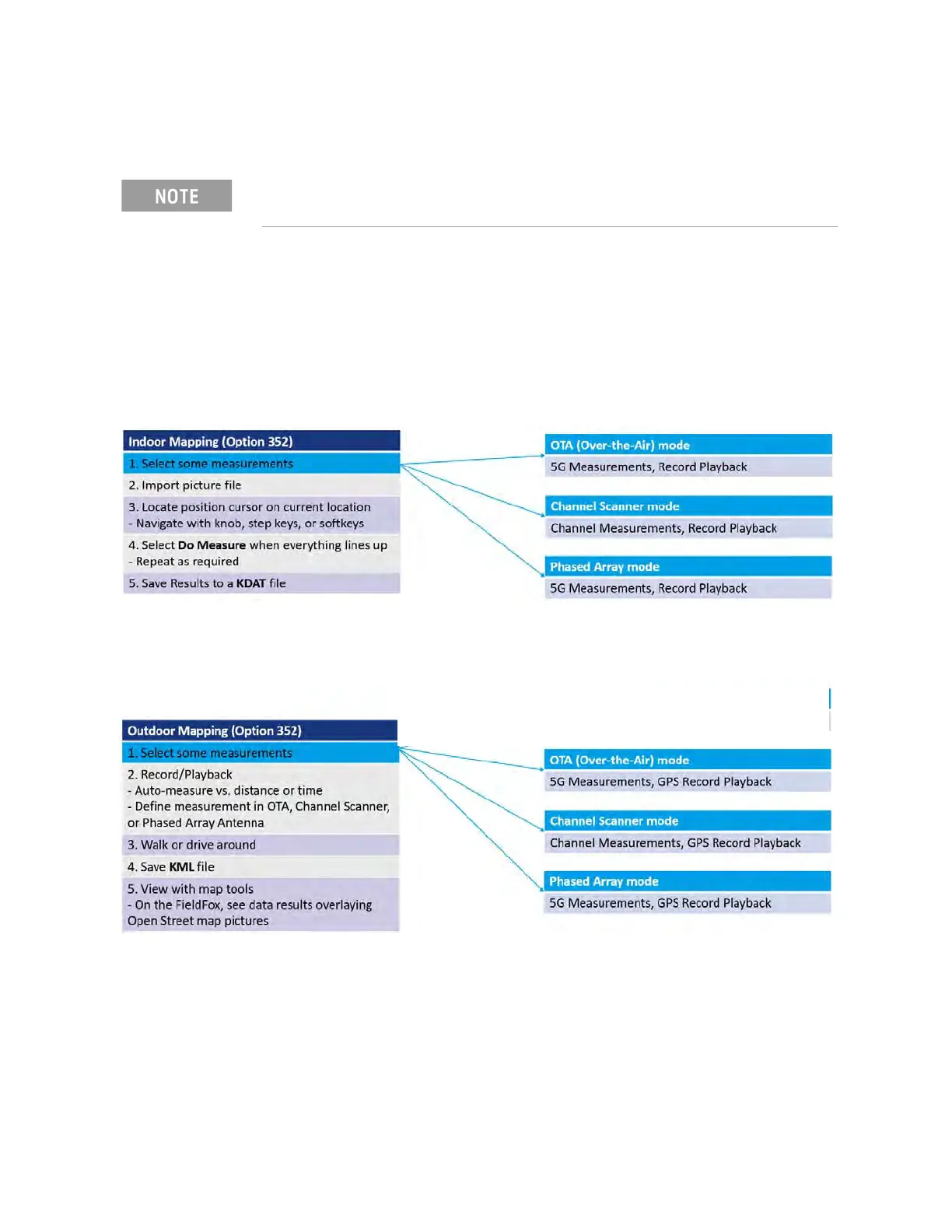

Figure 15-12 Overview – Setting Up Option 352 (Indoor Mapping) Using Other Modes
— “Option 352 Outdoor Maps Setup Procedure” (Requires GPS Option 307)
Figure 15-13 Overview – Setting Up Option 352 (Outdoor Mapping) Using Other Modes
How to Set Up Mapping When the FieldFox Is On The LAN
If your FieldFox is connected directly to the LAN, you can view your maps by
using OpenStreetMaps directly (i.e., no need to use the FieldFox Map Support
Tool to download the maps as a *.zip file). Refer to “Display a Map File” on
page 391.
IMPORTANT! See also, “Alignments” on page 180, in SA mode.
