386 Keysight N9927-90001 User’s Guide
On–the–Box Mapping – Option 352 (Requires Spectrum Analyzer Mode (Option 233 on
N991xB), GPS (Option 307) and GPS Receiver (Option 307))
Downloading and Using the FieldFox Map Support Tool
— To select Zoom levels, click the zoom boxes.
— The more Zoom levels checked, the more map
images that have to be saved and it will take longer
to download the images.
c. Step 3. Input a filename to store your requested images from
OpenStreetMaps. The *.zip file is then stored in your PC’s
Downloads folder.

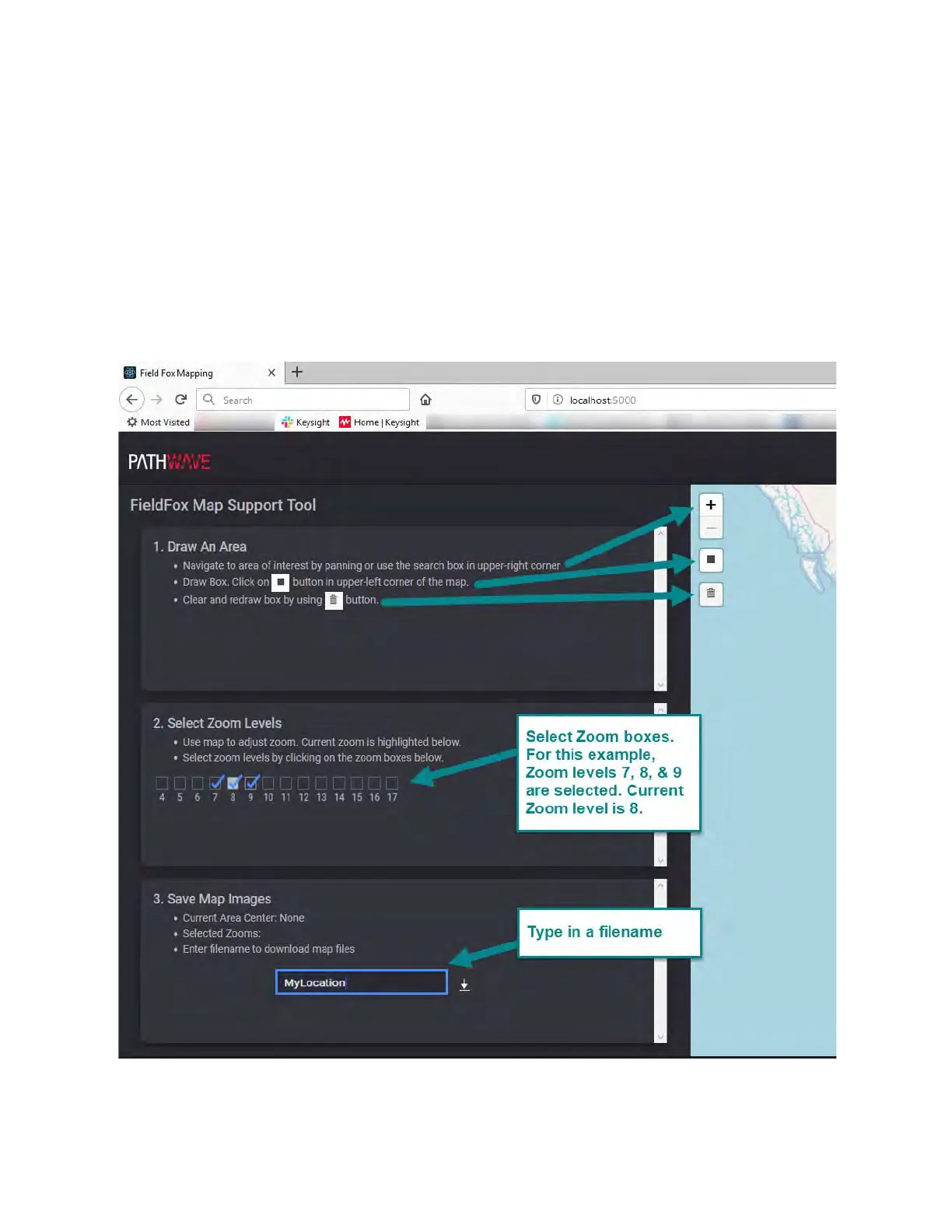

Figure 15-8 FieldFox Mapping Opens in HTML5 Compatible Browser (Zoom)
