Keysight Technologies InfiniiVision 1000 X-Series - Page 37

Quick Reference 2
Keysight InfiniiVision 1000 X-Series Oscilloscopes User's Guide 37

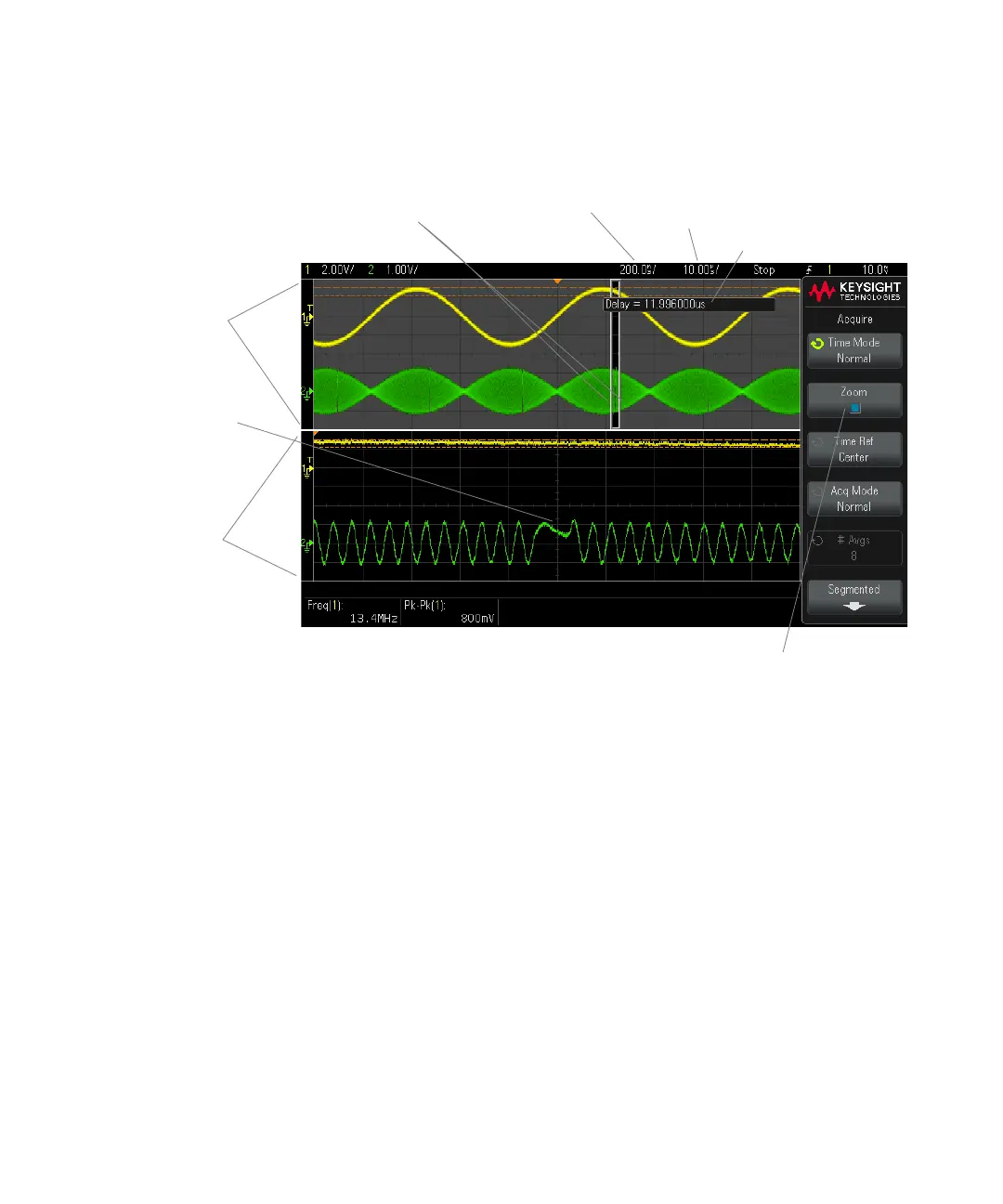

These markers show the
beginning and end of the
Zoom window
Normal
window
Time/div
for zoomed
window
Time/div
for normal
window
Delay time
momentarily displays
when the Horizontal
position knob is turned
Zoom
window
Signal
anomaly
expanded
in zoom
window
Select
Zoom
