Keysight M8040A High-Performance BERT Getting Started Guide 25
Introduction 1
M8046A High-Performance BERT Analyzer Module
The M8046A is an instrument module that can be installed into the
M9505A 5- slot AXIe chassis. This module occupies two slots and requires
the M8045A module for proper operation.
The M8046A supports symbol rates up to 32 GBaud, the default is NRZ
format.
The analyzer module can be used for error analysis in conjunction with the
M8045A pattern generator, the M8195A/M8196A Arbitrary Waveform
generators or as stand-alone.
M8046A Features
• Symbol rates 2 to 32.4 GBaud
• One channel per 1-slot module
• 70mV input sensitivity
• Supports NRZ and PAM-4
• Real-time bit error and symbol error analysis
• Pattern independent PAM-4 clock recovery
M8046A Module Components
The following figure displays the front panel of the M8046A module with its
various components:

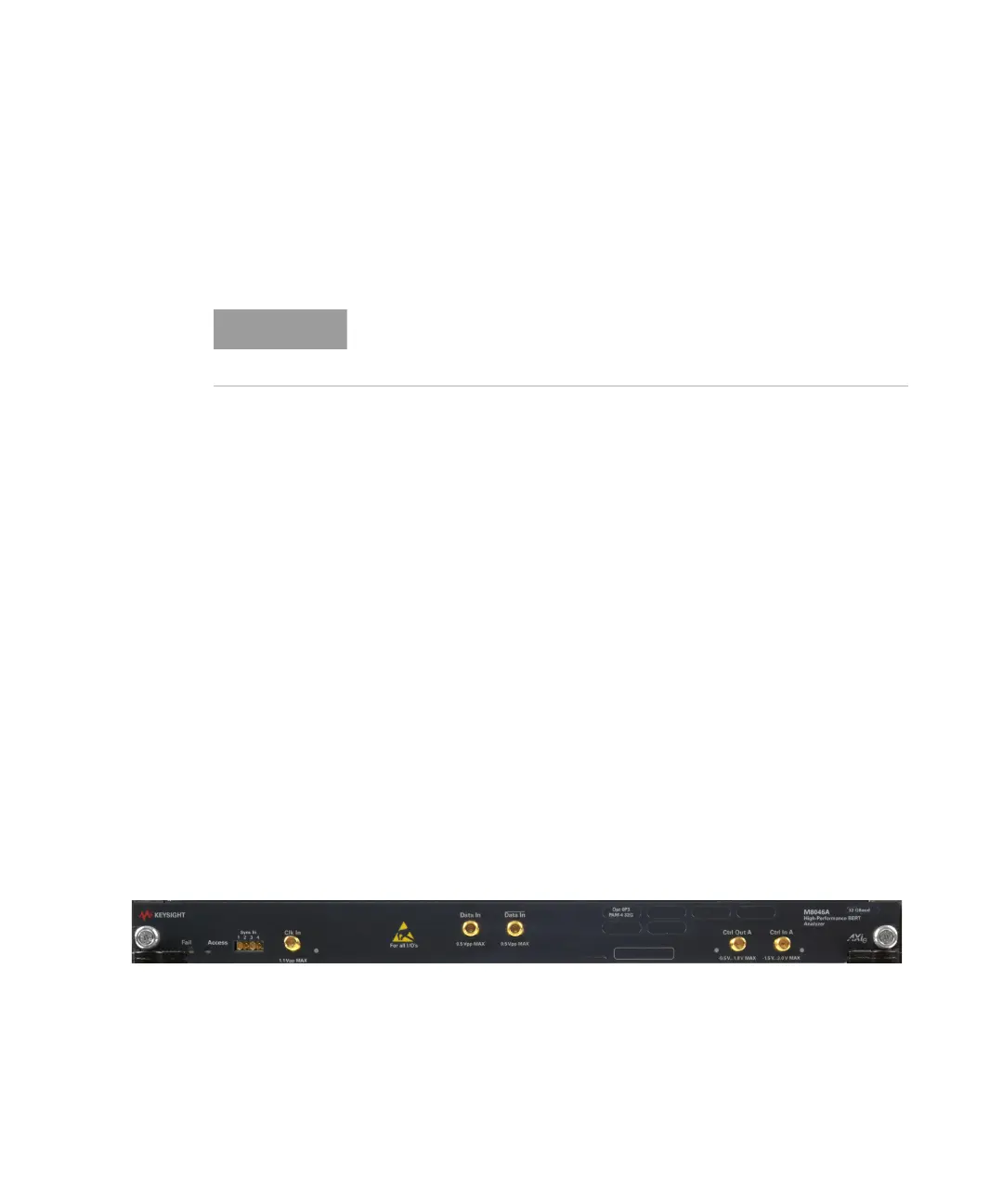

Figure 6 M8046A module front panel
The three or four channel configuration requires a cable (provided with
the M8046A) that connects the M8045A SYNC OUT to the M8046A SYNC
IN to synchronize the two modules to a common system clock.
