Step 10 - Turning off the Chassis and Modules
Turn off the chassis and module in the following sequence:
1 Turn off the host computer. If you are using the Keysight AXIe
Embedded Controller module as the host computer, ensure that you
shut down the controller by executing the Windows shutdown process.
2 Turn off the chassis by pressing the chassis ON/STANDBY switch on
the front panel of chassis. Do not use the circuit breaker for routine
turn off. The module(s) are turned off automatically with the chassis.
Step 11 - Connect the M8040A to the Device Under Test (DUT)
This section describes how you can connect the M8040A to a DUT.
Typical Test Setup Example

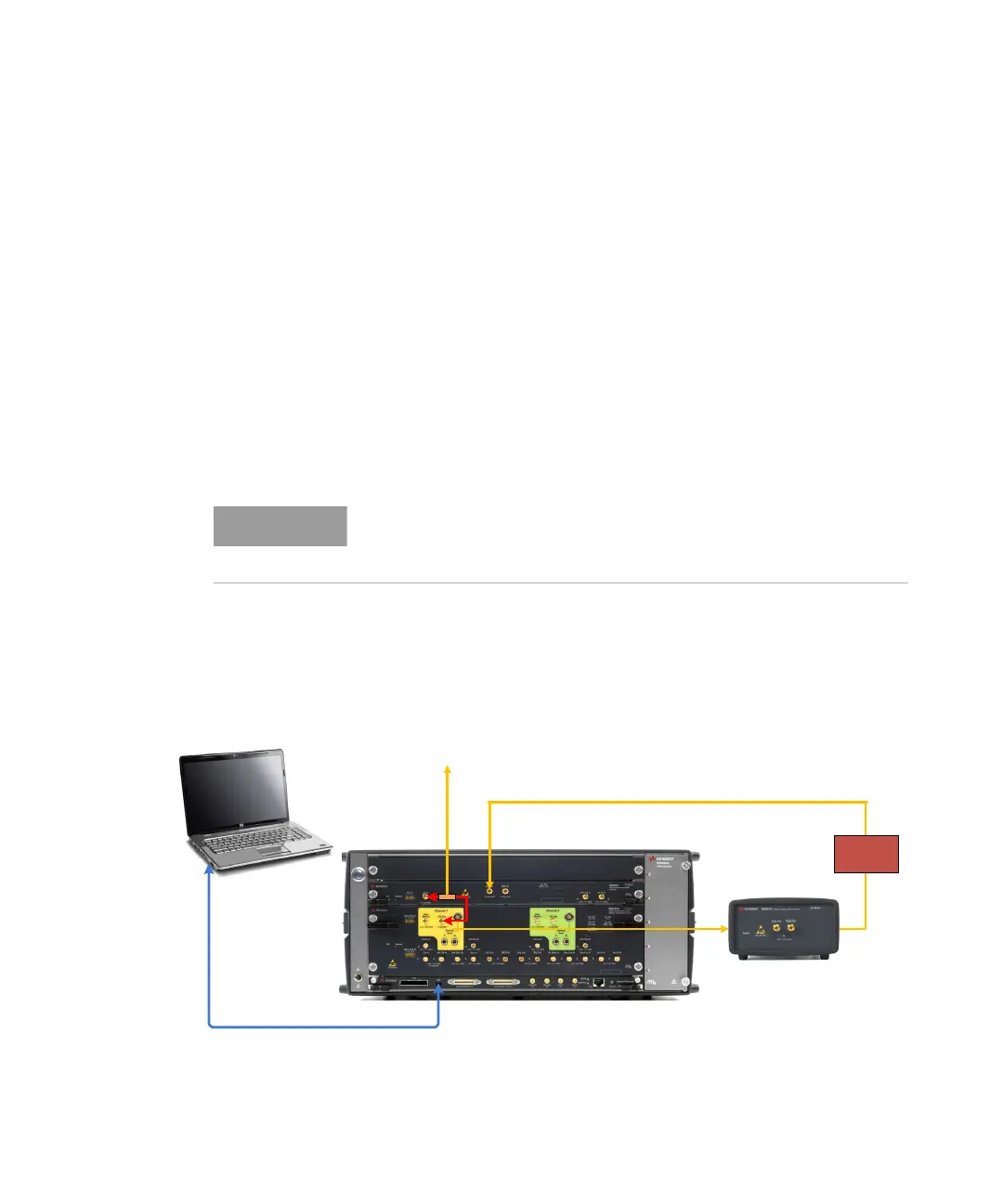

Figure 17 on page -52 is an example of a common test setup for testing a
DUT.
Figure 17 Typical test setup example
If you are connecting M8040A over USB, make sure to disable the “Sleep
Mode” of the external PC or laptop. Failing to do so may cause you to
re-initialize the M8070A software.
USB
DUT
Loopback to ED
External Bandpass Filter
