Keysight M8040A High-Performance BERT Getting Started Guide 35
Basic Setup for M8040A 2
To connect via USB
If you are planning to use USB connectivity between the M9505A AXIe
Chassis and host computer, then you can use a laptop or desktop
computer with USB 3.0 support as the host computer.

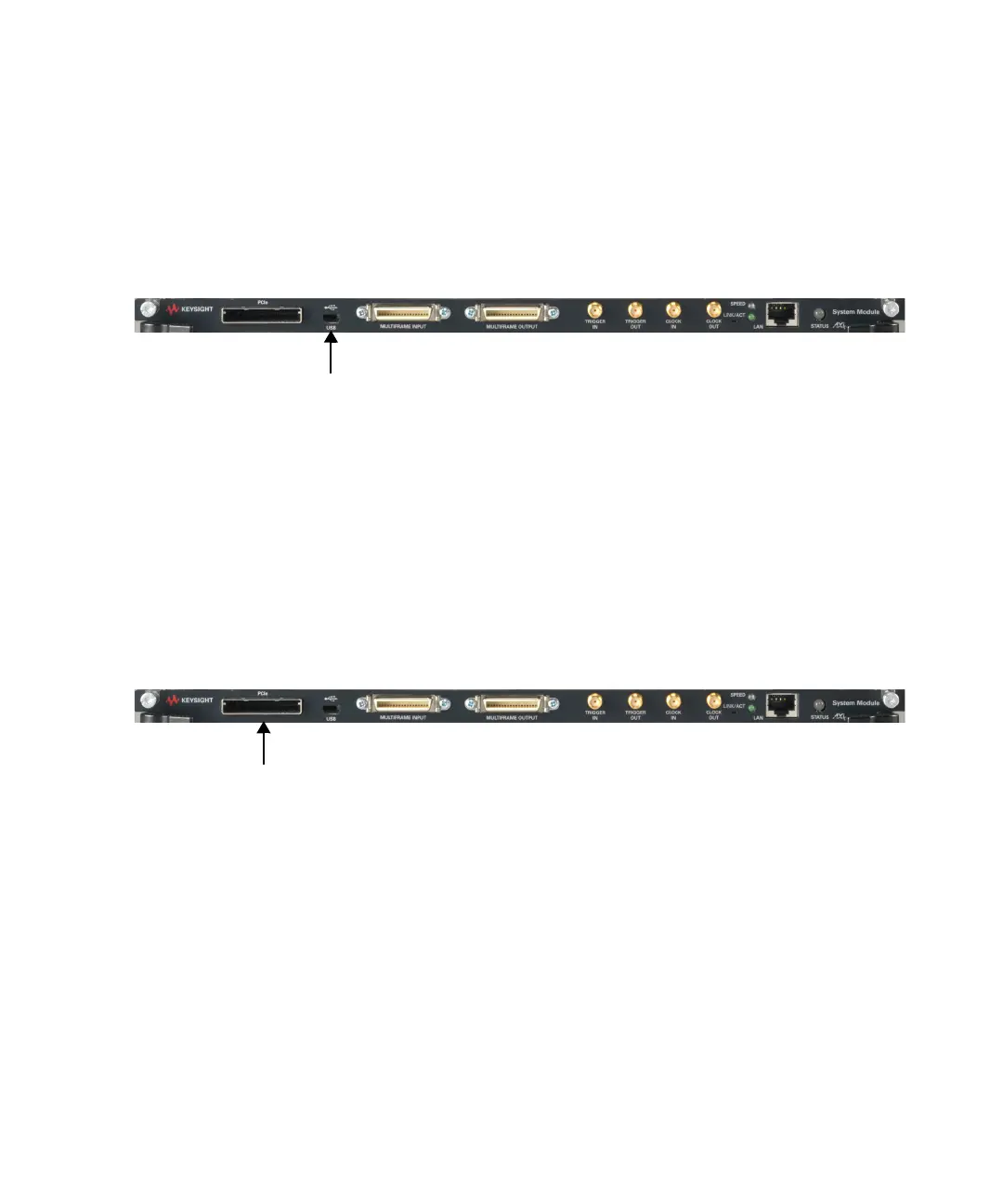

Figure 9 USB port on the font panel of the AXIe ESM
To connect via PCIe
In case of PCIe connectivity, the host computer can be a desktop PC with
an available x8 or wider PCIe slot.
Review the Keysight recommended list of host computers at
http://literature.cdn.keysight.com/litweb/pdf/5990-7632EN.pdf that are
compatible with the Keysight M9505A AXIe Chassis.
Figure 10 PCIe port on the front panel of the AXIe ESM
