1 System Requirements
M8020A Four Channel System Configuration
The four channel configuration consists of the 5-slot M9505A AXIe
Chassis, an M8041A module, and an M8051A module. The M8041A
occupies three slots and the M8051A occupies two slots.

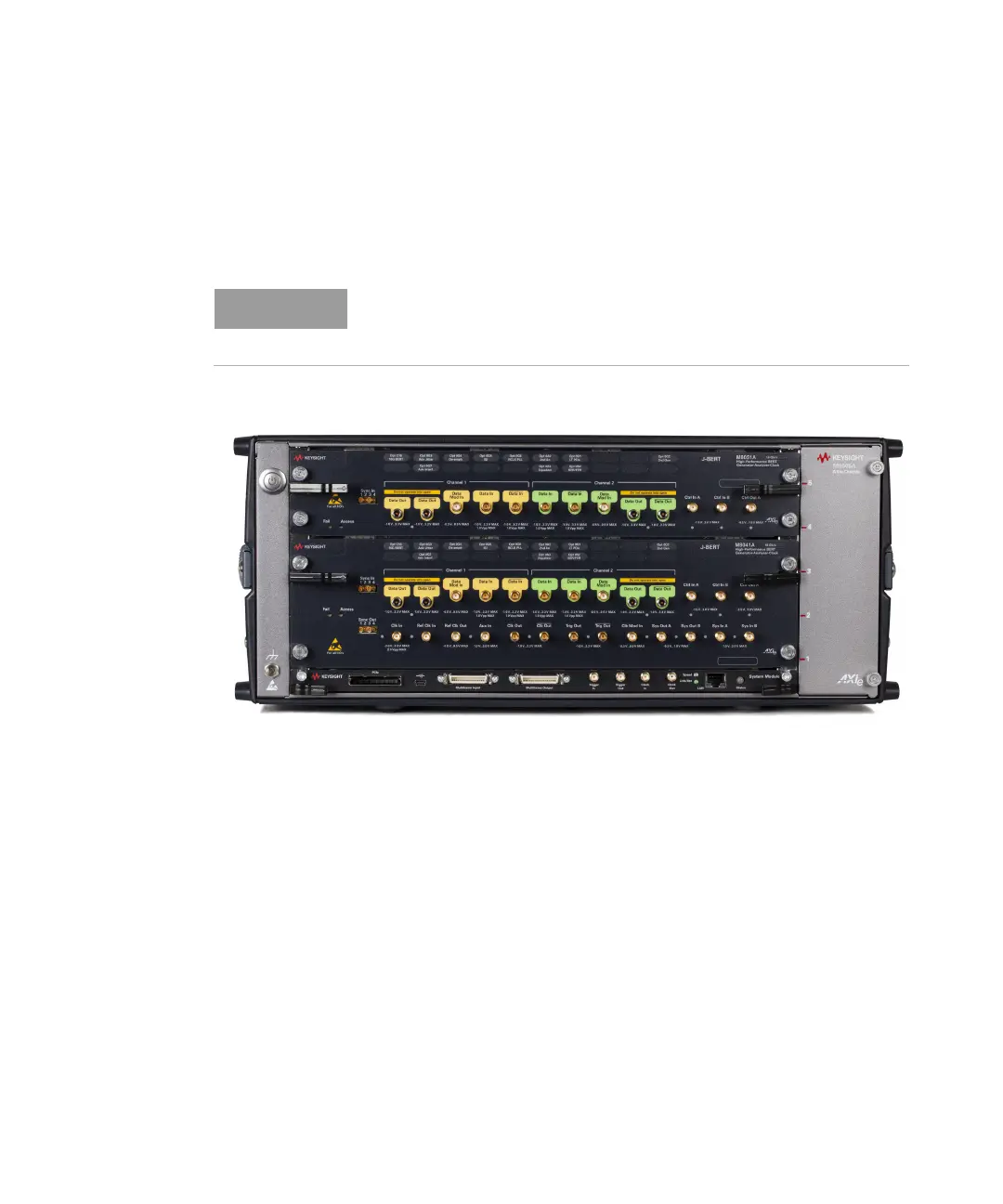

Figure 2 M8020A configuration for 16 Gb/s BERT for up to 4 channels
NOTE
This configuration requires a cable (provided with the M8051A) that
connects the M8041A SYNC OUT to the M8051A SYNC IN to synchronize
the two modules to a common system clock.
