40 Keysight M8000 Series of BER Test Solutions Installation Guide
2 Installing Modules
Benchtop Configuration with Support Assembly
If you want to install the M8061-64761 support AXIe chassis to support an
oscilloscope placed on top of the M8020A:
1 Place the M8061- 64761 on top of the M8020A as shown in Figure 28
on page -40.

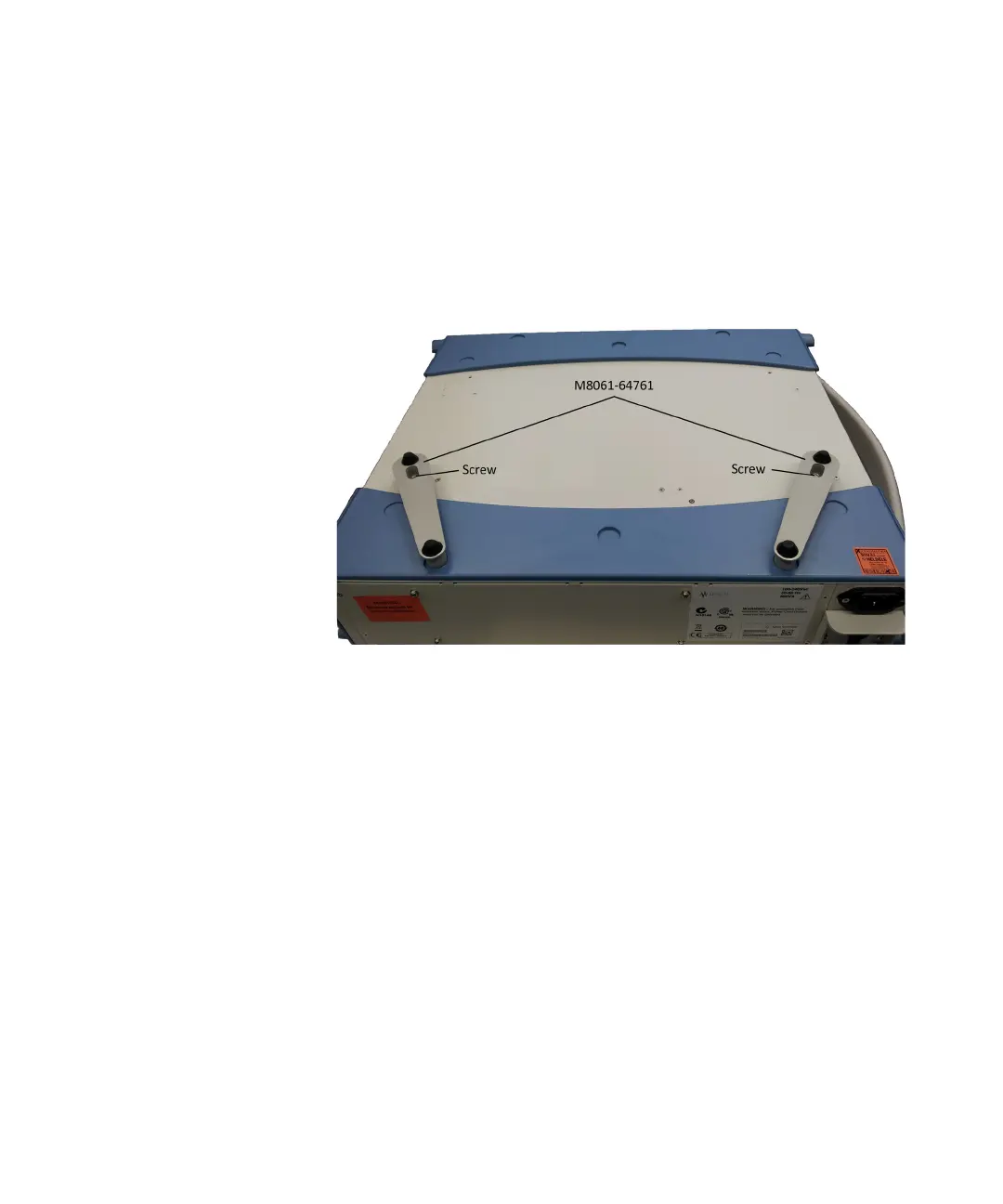

Figure 28 M8061-64761 support assembly
2 Attach the assembly to the top of the M8020A with screws provided as
shown in Figure 28 on page -40.
Rack Mounted Configuration
If you want to use the M8020A in a rack mounted configuration:
1 Remove the bumpers and carry handle(s) from the chassis. The
procedure and tools needed to remove these is documented in the
Keysight M9502A/M9505A AXIe chassis User’s Guide which is
available on www.keysight.com.
2 Attach the rack mount brackets to the chassis and mount onto a rack.
The rack mount brackets are available in the Keysight rack mount kit
that you can order for the chassis. Refer to this kit for rack mounting
instructions.
