26 Keysight M8000 Series of BER Test Solutions Installation Guide
2 Installing Modules
AXIe Instrument Modules
The chassis slots accept AXIe instrument modules. These may comprise
one or more instruments for signal injection, data acquisition, and
measurement. Install them in any available AXIe slot.

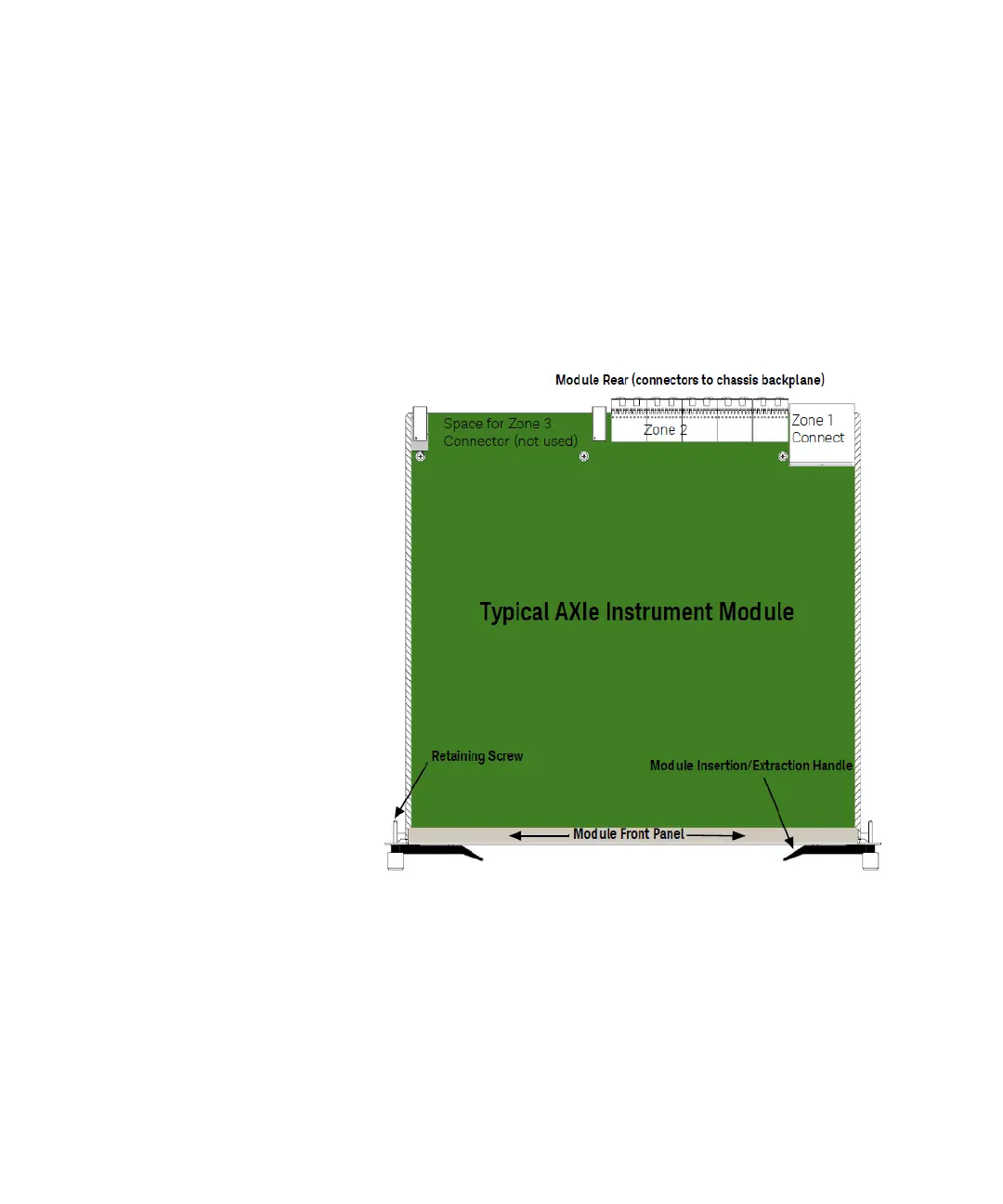

The drawing below illustrates the AXIe module’s general layout, backplane
connections and chassis fasteners, viewed from the top.
Test connections are made at the module’s front panel. The front panel
and backplane connectors will vary depending on the module.
