System Requirements 1
M8020A 32 Gb/s BERT Configuration (Pattern Generator Only)
A typical configuration using the M8061A 32 Gb/s multiplexer with
de-emphasis consists of the 5-slot M9505A AXIe Chassis, an M8041A
module, and an M8061A module. The M8041A occupies three slots and
the M8061A occupies two slots.

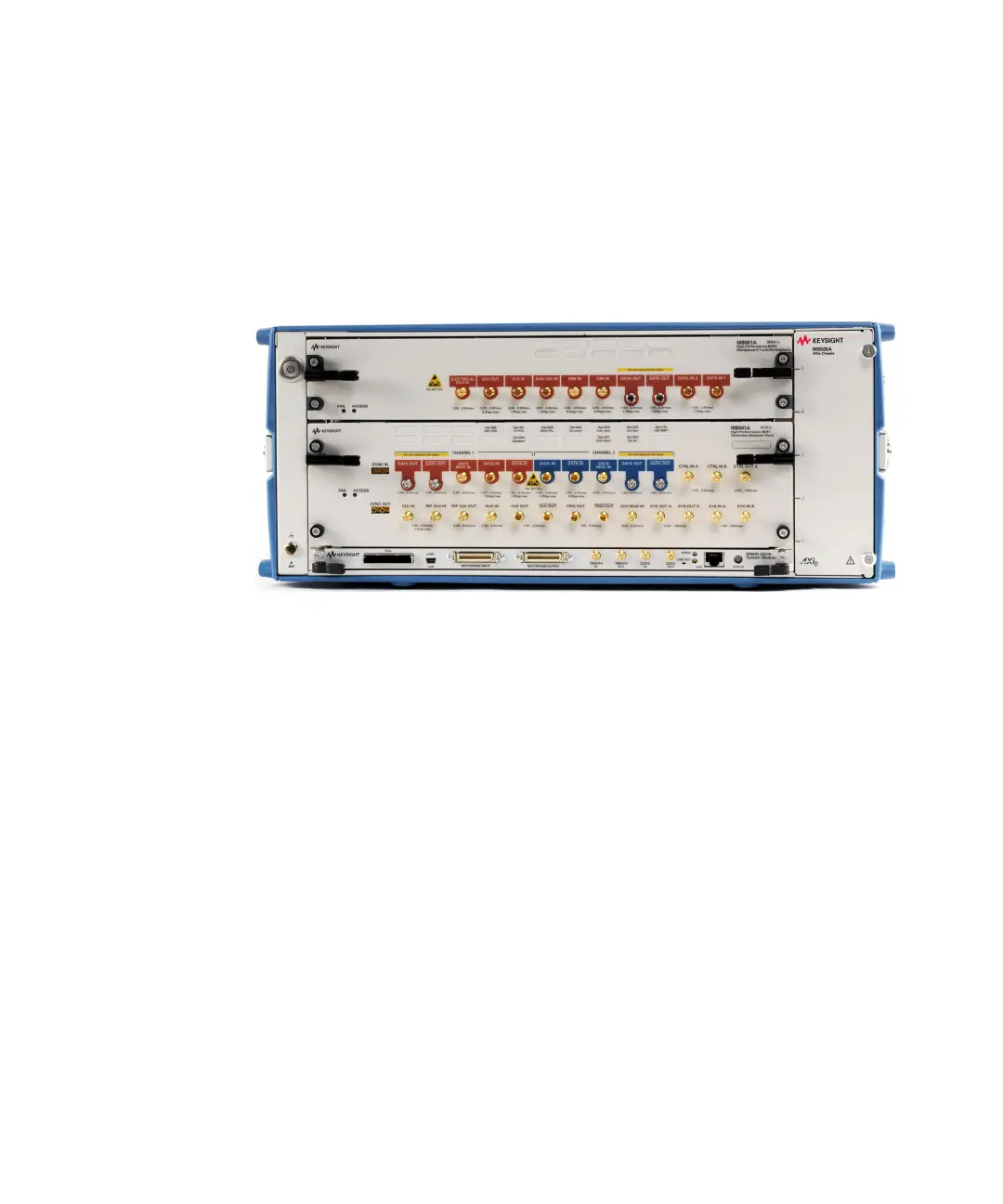

Figure 3 M8020A configuration for 32 Gb/s BERT (external demultiplexer is recom-
mended)
