60 Keysight M8000 Series of BER Test Solutions Installation Guide
2 Installing Modules
To Connect the M8057A/B Remote Head
The M8057A/B remote head box can be connected to each channel of
M8045A module. Connect the M8057A/B to the M8045A remote head
controls (P and N) as shown in the
Figure 42 on page -60.

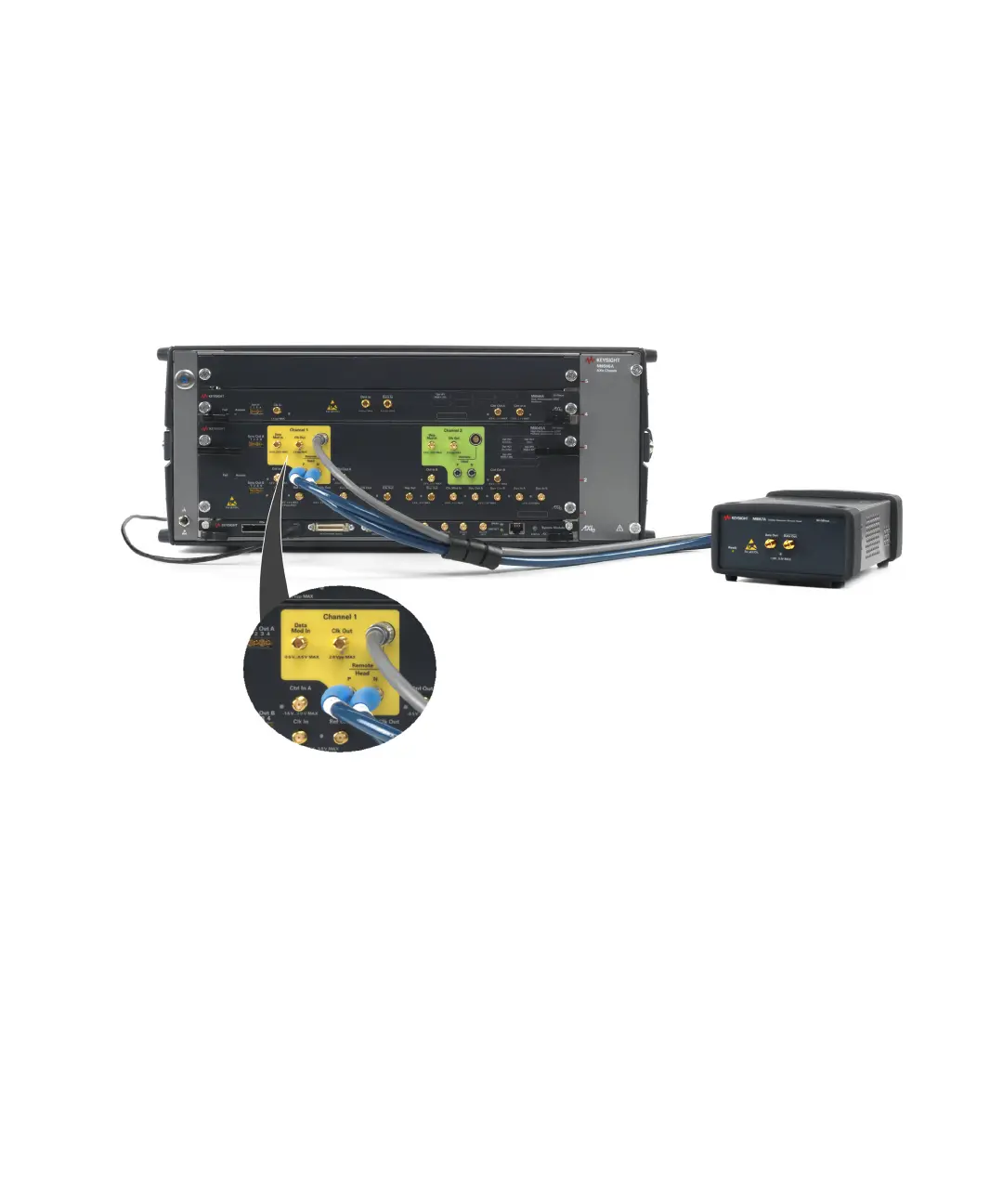

Figure 42 Installing M8045A, M8046A modules and M8057A/B remote head
Ensure that the chassis is NOT powered up or connected to a power
source while making connections to M8057A/B.
Also, make sure NOT to remove the M8057A/B connections when it is
powered on. However, if you wish to remove the M8057A/B connections,
ensure that the instrument is powered off.
