56 Keysight M8000 Series of BER Test Solutions Installation Guide
2 Installing Modules
To install the M8045A module

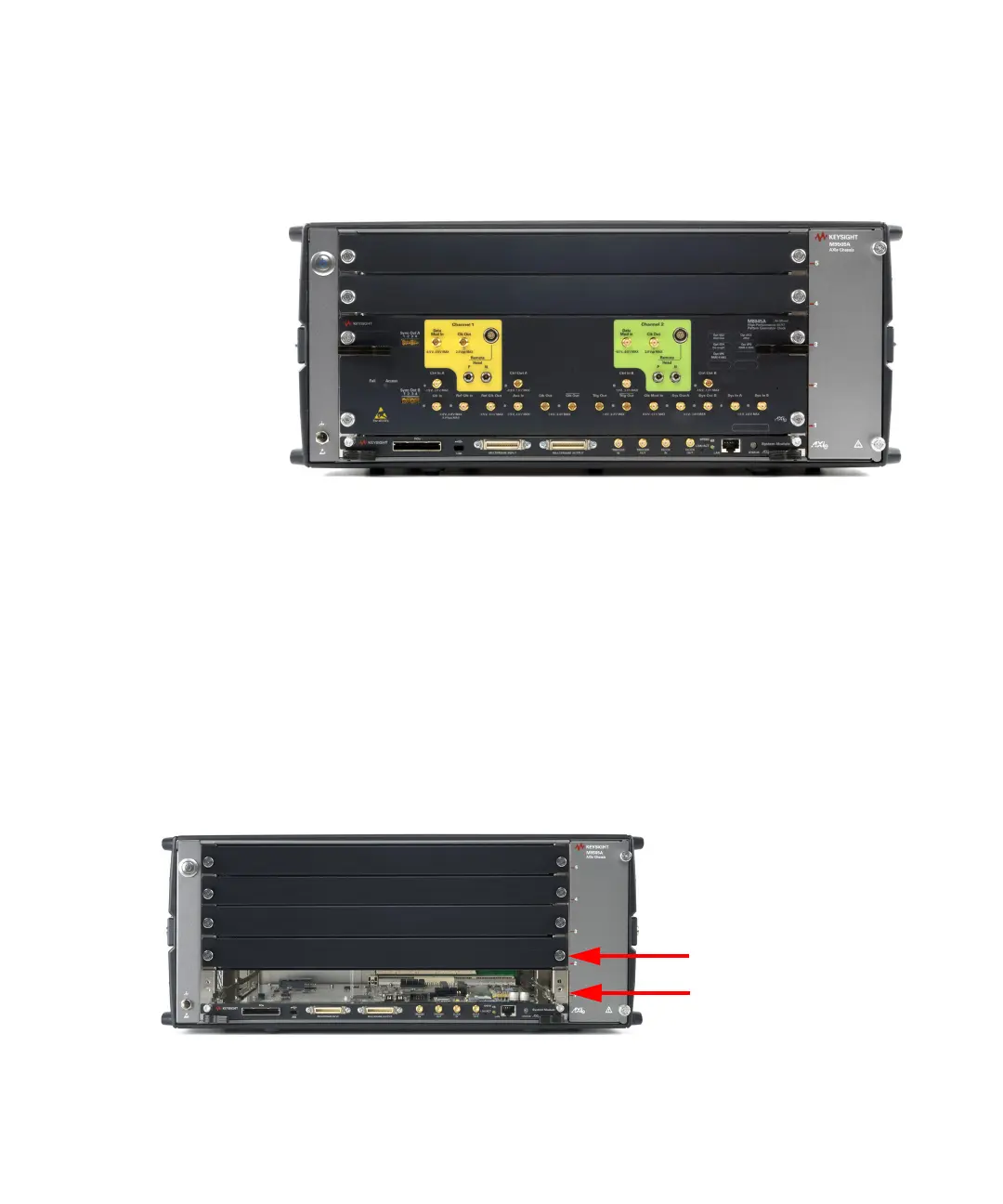

Figure 36 Installed M8045A module in slots 1 through 3
Ensure that the chassis is NOT powered up or connected to a power
source while installing an instrument/embedded controller module.
1 If you are not installing the M9537A AXIe Embedded Controller,
remove the filler panel modules that cover slots 1, 2, and 3. Loosen the
retaining screws on both sides of the filler panel module until the filler
panel module is completely disengaged. Then gently pull the module
out of the chassis holding the screws.
2 If you are installing the M9537A AXIe Embedded Controller, remove
the filler panel modules that cover slots 2, 3, and 4. Loosen the
retaining screws on both sides of the filler panel module until the filler
panel module is completely disengaged. Then gently pull the module
out of the chassis holding the screws.
Figure 37 Filler panel module removed
Retaining Screw
Filler Panel Module Removed
