58 Keysight M8000 Series of BER Test Solutions Installation Guide
2 Installing Modules
To install the M8045A and M8046A modules
The M9505A AXIe chassis has 5 slots for installing M8040A instrument
modules. Install the M8045A in slots 1 through 3 and the M8046A in slot 4.

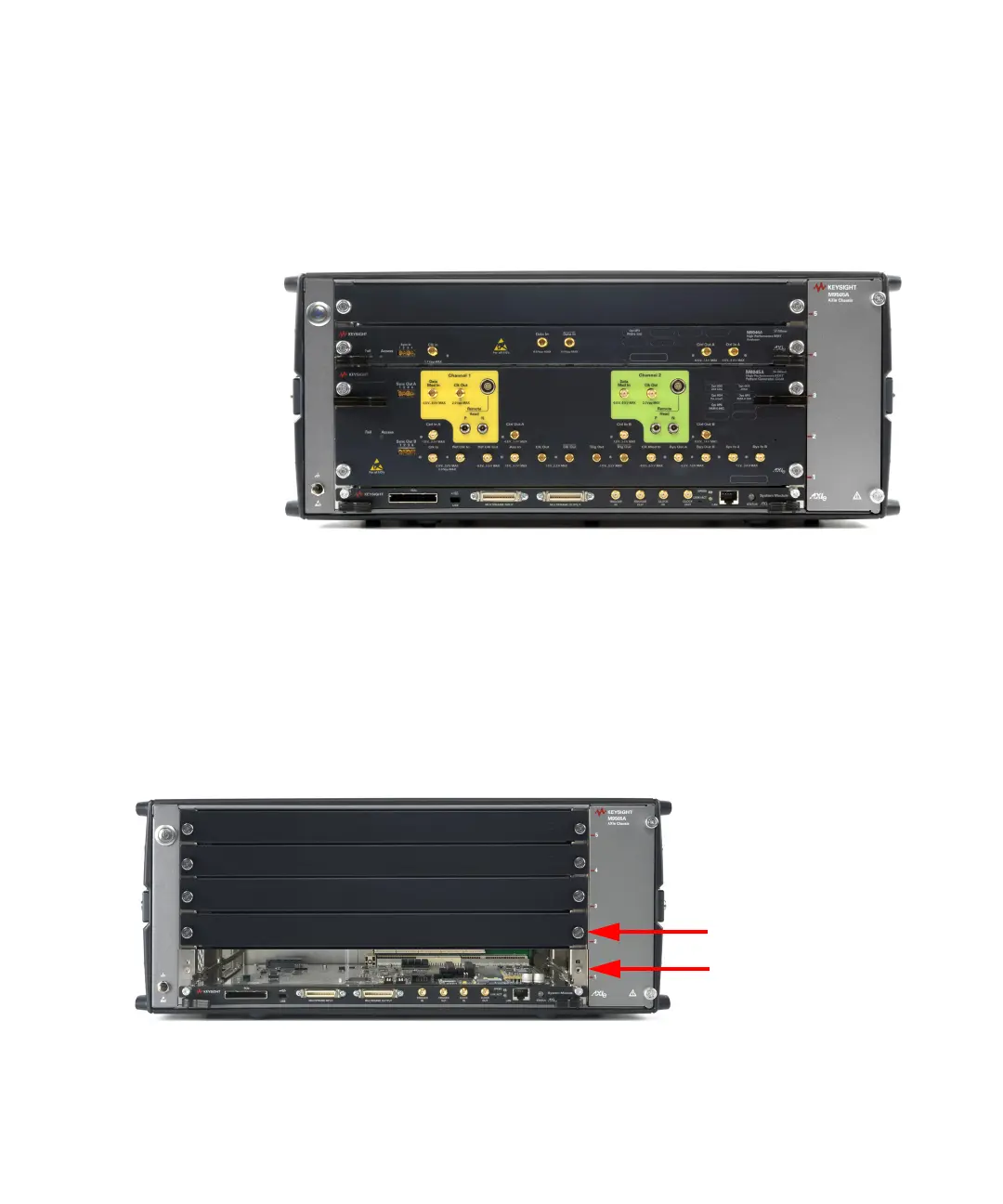

Figure 39 Installed M8045A and M8046A module
Ensure that the chassis is NOT powered up or connected to a power
source while installing an instrument/embedded controller module.
1 Remove the filler panel modules that cover slots 1 through 5. Loosen
the retaining screws on both sides of the filler panel module until the
filler panel module is completely disengaged. Then gently pull the
module out of the chassis holding the screws.
Figure 40 Filler panel module removed
Retaining Screw
Filler Panel Module Removed
To Next Page
