50 Keysight M8000 Series of BER Test Solutions Installation Guide
2 Installing Modules
3 Align the module’s circuit board with the chassis guide rails. If the
module has metal plates covering the board, be sure to insert the
circuit board and not the metal plates into the rails. Slide the board
gently into the two rails. If the fit is tight, slide the board back out and
recheck alignment.
4 Locate the insertion/extraction handles at each side of the module’s
front panel. Extend the ends of both handles, by pulling them inwards
towards each other; the plastic handle end slides about 1 cm on the
metal handle shaft.Then fully open the handles by pivoting them out
towards you until they are perpendicular to the front panel. The left
handle is shown below, from the top view, correctly extended.

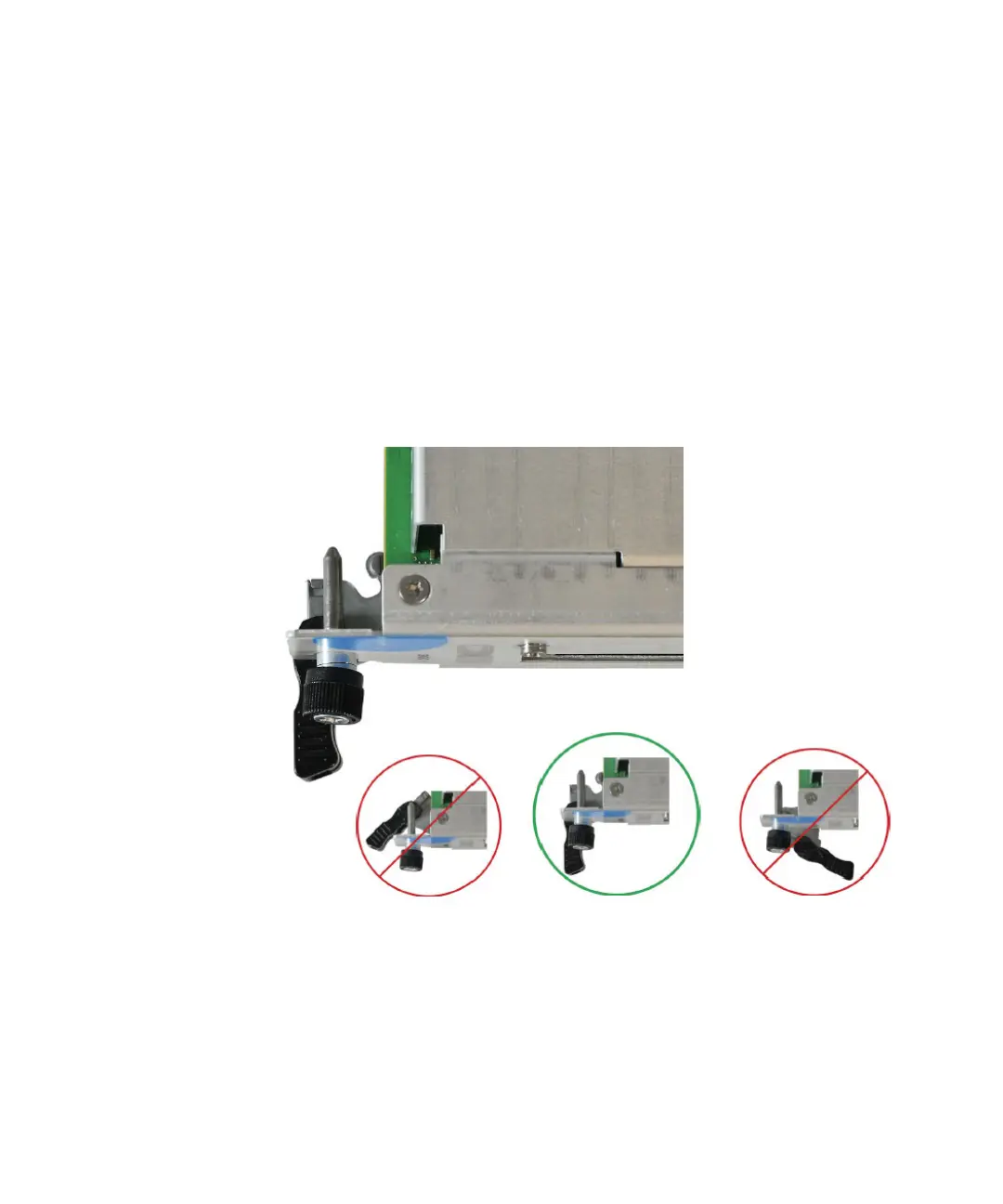

Figure 33 Top view of left handle
If either handle is misaligned, you will not be able to properly install the
module.
