Keysight M8000 Series of BER Test Solutions Installation Guide 69
Controlling Multiple Instruments 3
It is also possible to connect a PC to smaller AXIe frame (2 slots) as shown
in the following figure:

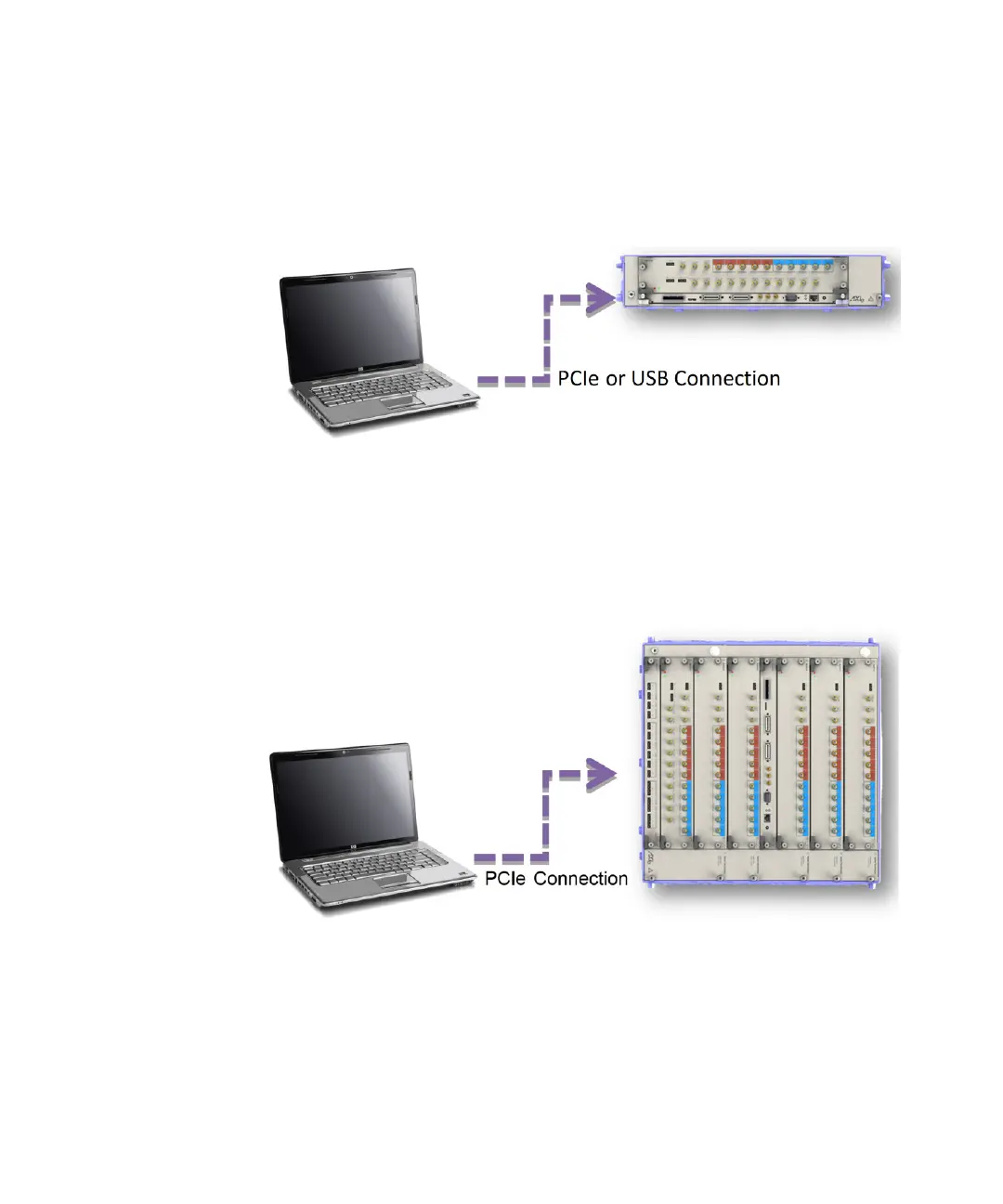

Figure 48 PC connected to AXIe 2 slot frame
Also, it is also possible to connect a PC to large AXIe frame (14 slots) as
shown in the following figure:
Figure 49 PC connected to AXIe 14 slot frame
All these configurations are controlled by a single instance of a M8070B
system software.
